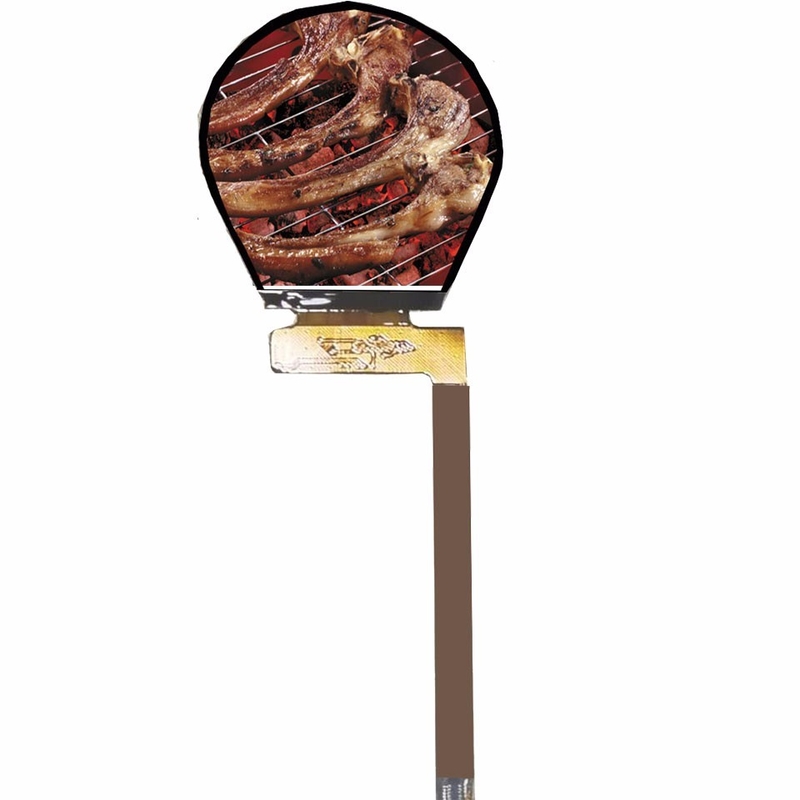

Small TFT Module Round Lcd Display 1.3 Inch 240x240 Dots SPI

Small TFT Module Round Lcd Display 1.3 Inch 240x240 Dots SPI

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FS130MH2ZG-03

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Bubble Bag + Blister + Foam Box + Carton
Delivery Time: 3~5 Working Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Resolution: 240 * 240 Size: 1.3 Inch
Viewing Direction: All O'clock TFT Mode: TFT, Transmissive
Outline Size: 35.90 * 39.70 * 1.53 Mm Brightness: 450Cd / M2
High Light:

SPI Round Lcd Display

,

TFT Round Lcd Display

,

Round TFT LCD Module

Product Description


OEM ODM Lcd Display Screen 2.4 Inch TFT Lcd Module 240 x 320 Dots TFT Lcd Touchscreen Display Module
 Round Lcd Display 1.3 Inch Small TFT Lcd Module 240 x 240 Dots TFT Lcd Display SPI Lcd Module
A. Specifications: Link to Download>  FS130MH2ZG-03(V01)specification(1).pdf






Item Nominal Dimension Unit
Dot Matrix 240 x16 x 320 Dots
Module Size ( W×H×T ) 35.90 (W)* 39.70(L)* 1.53  (T) mm.
Pixel arrangement RGB  mm.
Dot Pitch ( W×H ) 0.153 x 0.153 mm.
Interface SPI/RGB/MCU
Driving IC Package COG
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
IC Drive GC9A01A
TOP POLARIZER TYPE ANTI-GLARE
Backlight Type 2-DIES WHITE LED PCS








B. Product Applications:

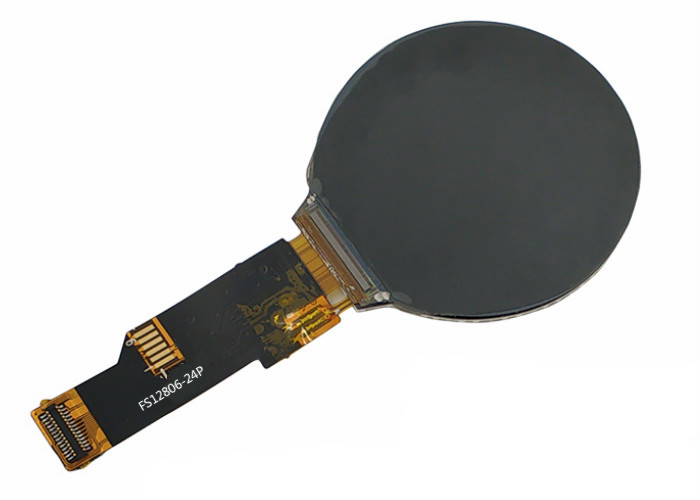

 Small TFT Module Round Lcd Display 1.3 Inch 240x240 Dots SPI 0




Our Advantage:

1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days

Our Certificates:

1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display



We promise the long term continuity supply for this product no less than 20 years since 2001.



C. Structure Diagram:
 Small TFT Module Round Lcd Display 1.3 Inch 240x240 Dots SPI 1


Pin Definistion:

 Small TFT Module Round Lcd Display 1.3 Inch 240x240 Dots SPI 2


Fangsheng
is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.



Item Building & Capacity Information Remark
1 Address & Conctactor In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China

Cotact:

T:+86-769-22705821 EXT 815 F: +86-769-22705825

M/Whatsapp/Wechat : +86-134 1284 8038

Skype :+86 189 2546 1855

E-mail 1: fssales04@fsdzlcd.com

E-mail 2: Fancy@fsdzlcd.com


2 Staff Direct+ Indirect Labors +120
3 Build 1 Office , Factory, Warehouse 4,100M² Total 5,000M²
4 Build 2 Dormitory 913M²
5 Product Capacity * LCM Drawing:2-7 days
* LCM Sample:3-6 weeks
* Lead Time for Mass *Production:4 - 8 weeks
* LCM Cap: 30K/D
* BL Cap:30K/D
* CTP Cap:3K/D

6 Production Line * Automatic Production Lines
* Semi-Automatic Production Lines
* Semi-Automatic backlight assembly lines
* Capacitive touch panel assembly line
* TFT&CTP optical bonding




RFQ

1.Q: Are you manufactory or trade company?



A: We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!





2. Q: How can I get the samples?



A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect





3. Q: How long can I expect to get the sample?



A: Contour drawing: 2-3 days Sample time: 10-15 business days





4. Q: Will you offer free sample?



A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.





5. Q: Can you design the lcd in acccordance with our demand?



A: Sure.We will give you the best tooling charge.





6. Q: How to place orders ?



A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.



1) Product information-Quantity,part number



2) Delivery time required.



3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4) Forwarder's contact details if you have any in China.





7. Q: How long of mass production ?



A: 25-30 business days. It depends on different order quantities and part number.
