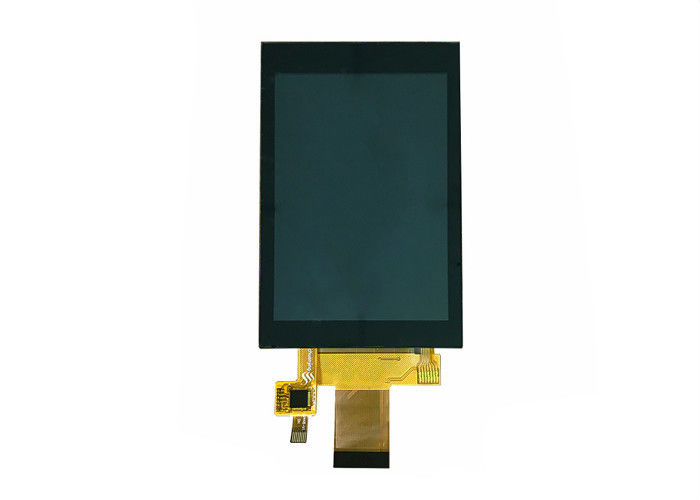

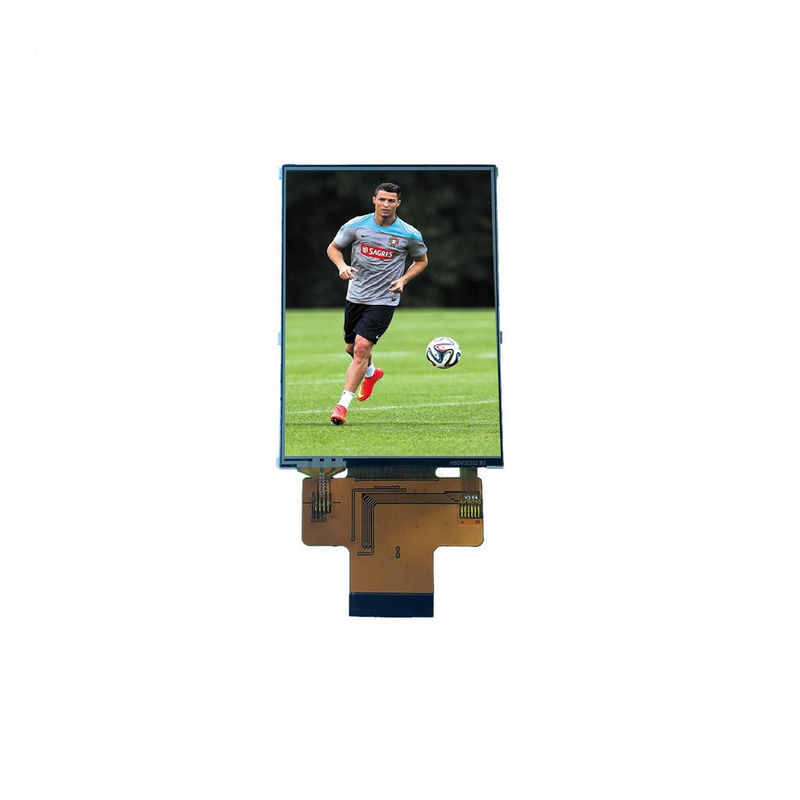

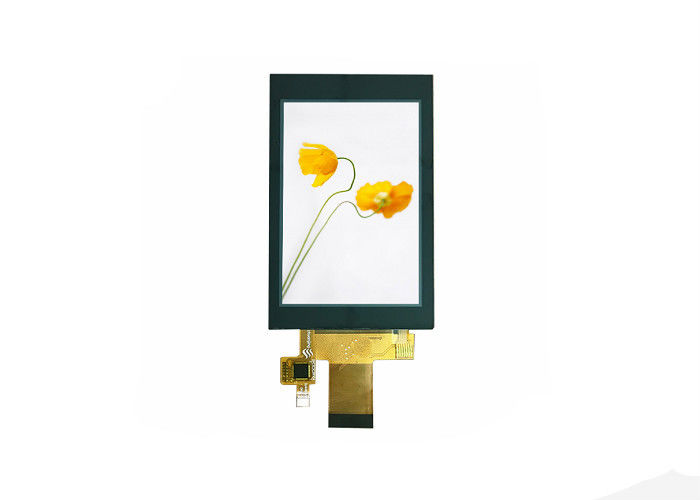

3.5 Incd TFT Lcd Module Lcd Manufacturer SPI Interface Lcd Module With IPS

3.5 Incd TFT Lcd Module Lcd Manufacturer SPI Interface Lcd Module With IPS

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FT3563JPY-20P

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Bubble Bag + Blister + Foam Box + Carton
Delivery Time: 3~5 Working Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Resolution: 320 * 480 Size: 3.5 Inch
Viewing Direction: All TFT Mode: TFT, Transmissive
Outline Size: 54.5 (W) X 83.95 (H) X 2.15 (T) Brightness: 200Cd / M2
High Light:





TFT LCD Module 320x480

Product Description

3.5 Incd TFT Lcd Module Lcd Manufacturer 320 x 480 TFT LCD Display SPI Interface Lcd Module With All Viewing Angle
A. Specifications:  Download Link to►  FT3563JPY-20p IPS-MIPI & SPI-FS.pdf



Item Nominal Dimension Unit
3.5 Incd TFT Lcd Module Lcd Manufacturer SPI Interface Lcd Module With IPS 0

Dot Matrix 320 x RGB x 480 Dots
Module Size ( W×H×T ) 50.8  (W) x 45.82 (L) x 2.35 (T) mm.
Dot Pitch ( W×H ) 0.153 x 0.153 mm.
Interface MCU (8080-16bit) or 4W SPI
Driving IC Package COG+FPC
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
IC Drive ILI9488
LCD Mode TN/Normal White
Backlight Type 6DIES WHITE LED PCS


 Custom Touch Panel and Bonding


Options: Resistive Capacitive (PCAP)
CTP Structure: GF,GFF,G+G,P+G
Cover lens Thickness: 0.55,0.7,0.9,1.1,1.8,2.8(mm)...
Cover lens Surface treatment: Anti-fingerprint(AF), Anti-glare(AG), Anti-reflection(AR)
Driver IC: Focal-tech, Goodix, ILitek, Atmel...
Lamination of LCD Module+CTP: Gasket ,OCA,LOCA



TFT LCDs are liquid-crystal display modules with thin-film transistor technology. The TFT technology offers full RGB showcasing a range of colors and hues. Get rich colors, detailed images, and bright graphics from an LCD with a TFT screen.


3.5 Incd TFT Lcd Module Lcd Manufacturer SPI Interface Lcd Module With IPS 1


Product List:

Main Products: including 1.44",1.5",1.54",1.77", 2.0",2.4", 2.7", 2.8", 3.0",3.5", 4.3", 5.0", 7.0", 8.0", 9.7",10.1", 13.3" TFT LCD Modules, Resistive Touch panel and Capacitive Touch panel products.


No Size Inch Dot Format Outline Size (mm) Contrast(Cr) Backlight Brightness Interface Touch Panel
1 1.44 128xRGBx128 32.36x38.0x2.6 500 1LED 240 SPI -
2 1.77 128xRGBx160 34.70x46.7x2.5 500 2LED 320 8bits parallel -
3 2.0 176xRGBx220 37.68X51.30X2.23 500 3LED 180 8bits parallel -
4 2.3 320xRGBx240 51.0X45.8X2.3 500 4LED 280 SPI -
5 2.36 480X234 55.2x44.75x2.9 250 2LED 250 8bits RGB -
6 2.4 240xRGBx320 42.72x60.26x2.46 250 4LED 200 8bits80 parallel -
7 2.7 240xRGBx320 62.60x45.70x2.45 400 4LED 350 8bits RGB RTP
8 2.83 240xRGBx320 50X69.2X2.4 500 4LED 250 8/16bits parallel RTP
9 3.5 320xRGBX480 54.66X82.9X2.1 500 4LED 380 18bits RGB+SPI RTP/CTP
10 4.3 480xRGBX272 105.5X67.2X4.2 500 6LED 450 24bits RGB RTP/CTP
11 5 800xRGBX480/1024x600 120.7x75.8x4.3 400 2x5LED 480 24bits RGB RTP/CTP
12 5.7 640xRGBX480 127.0X98.4X7.0 250 2x6LED 700 18bits RGB RTP/CTP
13 6.2 800xRGBX480 155.2X88.2X6.5 600 3x7LED 250 24bits RGB RTP/CTP
14 7 800xRGBX480 1024xRGBx600 164.9X100X7.2 500 7x3LED 350 24bits RGB RTP/CTP
15 8 800xRGBX480 1024xRGBx600 183.0x141.0x6.2 500 9x3LED 500 24bits RGB RTP/CTP
16 10.1 800xRGBX480 1024xRGBx600 235.0x143.0x5.0 600 13x3LED 450 LVDS RTP/CTP

With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.

Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.
With over 20 years of experiences on TN, IPS, LCM and TFT modules, has strong manufacturing capacity and
R&D capability to fulfill customized requirements.
