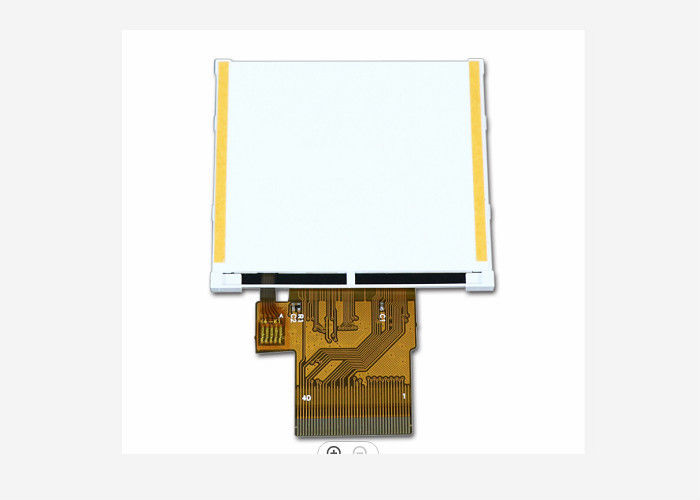

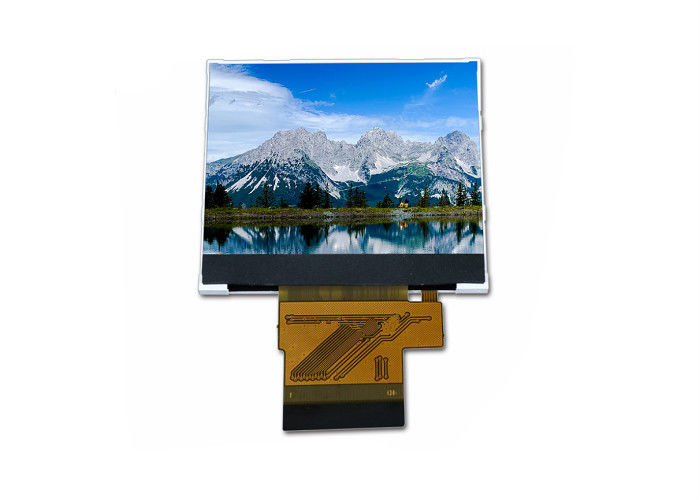

FS Lcd Display 2.31 Inch TFT Lcd 320 x 240 SPI Display Lcd TFT Lcd Display Supplier For Medical Equipment
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FT23106JPY-18P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble Bag + Blister + Foam Box + Carton |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Resolution: | 320 * 240 | Size: | 2.4 Inch |
|---|---|---|---|
| Viewing Direction: | 6 | TFT Mode: | TFT, Transmissive |
| Outline Size: | 50.8 * 45.82 * 2.35 Mm | Brightness: | 180Cd / M2 |
| Highlight: | SPI TFT LCD Display,2.31 Inch TFT LCD Display,320x240 SPI LCD Display |
||
Product Description
FS Lcd Display 2.31 Inch TFT Lcd 320 x 240 SPI Display Lcd TFT Lcd Display Supplier For Medical Equipment
A. Specifications: Download Link to► FT23106JPY-18P-FS.pdf
| Item | Nominal Dimension | Unit |  |
|---|---|---|---|
| Dot Matrix | 320 x RGB x 240 | Dots | |
| Module Size ( W×H×T ) | 50.8 (W) x 45.82 (L) x 2.35 (T) | mm. | |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. | |
| Interface | 80-system SPI Interface | – | |
| Driving IC Package | COG+FPC | – | |
| Operating temperature | -20 ~70 | ºC | |
| Storage temperature | -30~80 | ºC | |
| IC Drive | ST7789 | – | |
| LCD Mode | TN/Normal White | – | |
| Backlight Type | 4-DIES WHITE LED | PCS |
Custom Touch Panel and Bonding
| Options: | Resistive Capacitive (PCAP) |
| CTP Structure: | GF,GFF,G+G,P+G |
| Cover lens Thickness: | 0.55,0.7,0.9,1.1,1.8,2.8(mm)... |
| Cover lens Surface treatment: | Anti-fingerprint(AF), Anti-glare(AG), Anti-reflection(AR) |
| Driver IC: | Focal-tech, Goodix, ILitek, Atmel... |
| Lamination of LCD Module+CTP: | Gasket ,OCA,LOCA |
Product List:
Main Products: including 1.44",1.5",1.54",1.77", 2.0",2.4", 2.7", 2.8", 3.0",3.5", 4.3", 5.0", 7.0", 8.0", 9.7",10.1", 13.3" TFT LCD Modules, Resistive Touch panel and Capacitive Touch panel products.
| No | Size Inch | Dot Format | Outline Size (mm) | Contrast(Cr) | Backlight | Brightness | Interface | Touch Panel |
| 1 | 1.44 | 128xRGBx128 | 32.36x38.0x2.6 | 500 | 1LED | 240 | SPI | - |
| 2 | 1.77 | 128xRGBx160 | 34.70x46.7x2.5 | 500 | 2LED | 320 | 8bits parallel | - |
| 3 | 2.0 | 176xRGBx220 | 37.68X51.30X2.23 | 500 | 3LED | 180 | 8bits parallel | - |
| 4 | 2.3 | 320xRGBx240 | 51.0X45.8X2.3 | 500 | 4LED | 280 | SPI | - |
| 5 | 2.36 | 480X234 | 55.2x44.75x2.9 | 250 | 2LED | 250 | 8bits RGB | - |
| 6 | 2.4 | 240xRGBx320 | 42.72x60.26x2.46 | 250 | 4LED | 200 | 8bits80 parallel | - |
| 7 | 2.7 | 240xRGBx320 | 62.60x45.70x2.45 | 400 | 4LED | 350 | 8bits RGB | RTP |
| 8 | 2.83 | 240xRGBx320 | 50X69.2X2.4 | 500 | 4LED | 250 | 8/16bits parallel | RTP |
| 9 | 3.5 | 320xRGBX480 | 54.66X82.9X2.1 | 500 | 4LED | 380 | 18bits RGB+SPI | RTP/CTP |
| 10 | 4.3 | 480xRGBX272 | 105.5X67.2X4.2 | 500 | 6LED | 450 | 24bits RGB | RTP/CTP |
| 11 | 5 | 800xRGBX480/1024x600 | 120.7x75.8x4.3 | 400 | 2x5LED | 480 | 24bits RGB | RTP/CTP |
| 12 | 5.7 | 640xRGBX480 | 127.0X98.4X7.0 | 250 | 2x6LED | 700 | 18bits RGB | RTP/CTP |
| 13 | 6.2 | 800xRGBX480 | 155.2X88.2X6.5 | 600 | 3x7LED | 250 | 24bits RGB | RTP/CTP |
| 14 | 7 | 800xRGBX480 1024xRGBx600 | 164.9X100X7.2 | 500 | 7x3LED | 350 | 24bits RGB | RTP/CTP |
| 15 | 8 | 800xRGBX480 1024xRGBx600 | 183.0x141.0x6.2 | 500 | 9x3LED | 500 | 24bits RGB | RTP/CTP |
| 16 | 10.1 | 800xRGBX480 1024xRGBx600 | 235.0x143.0x5.0 | 600 | 13x3LED | 450 | LVDS | RTP/CTP |
With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.
R&D capability to fulfill customized requirements.
