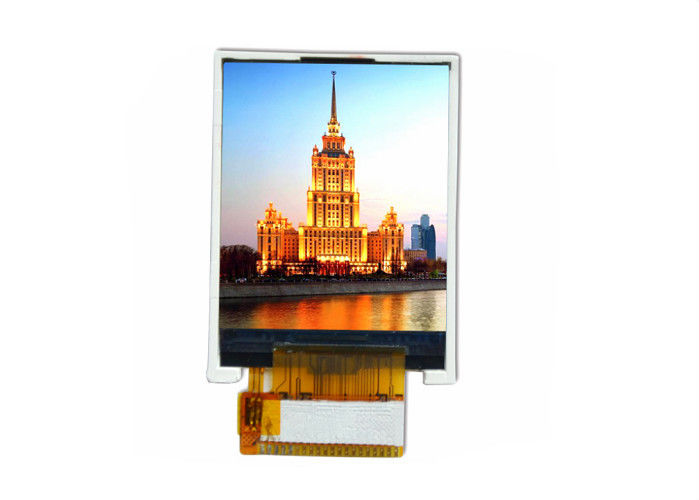

Small TFT Dipaly 1.77 Inch Lcd Display 128x160 Dots TFT LCD Display For Traffic Instrument
Product Details:
Place of Origin: | Dongguan,China |
Brand Name: | Fangsheng |
Certification: | ISO9001:2015 |
Model Number: | FT1790JPY-14P |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 |
---|---|
Price: | Negotiation |
Packaging Details: | Bubble Bag + Blister + Foam Box + Carton |
Delivery Time: | 3~5 Working Days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
Supply Ability: | 200K Sets / Month |
Detail Information |
|||
Resolution: | 128 * 160 | Size: | 1.77 Inch |
---|---|---|---|
Viewing Direction: | 6 O' Clock | TFT Mode: | TFT, Transmissive |
Outline Size: | 34.7 Mm * 46.7 Mm * 2.3 Mm T | Brightness: | 350Cd / M2 |
Highlight: | 128x160 TFT LCD Display,Traffic Instrument TFT LCD Display,1.77 Inch TFT LCD Module |
Product Description
Smart Lcd TFT Display 1.77 Inch TFT Lcd 128 x 160 LCD Display 14 Pin Interface Lcd for Traffic Instrument
A. Specifications: Download link to ► FT1790JPY-14P SPEC-FS.pdf
Item | Nominal Dimension | Unit |
---|---|---|
Dot Matrix | 128 x RGB x 160 | Dots |
Module Size ( W×H×T ) | 34.7 mm * 46.7 mm * 2.3 mm T | mm. |
Pixel arrangement | RGB Stripe | mm. |
Dot Pitch ( W×H ) | 0.218 (H) x 0.218 (V) | mm. |
Color depth | 262K(MAX) | colors |
Interface | SPI 4 Line | – |
Driving IC Package | COG | – |
Operating temperature | -20 ~70 | ºC |
Storage temperature | -30~80 | ºC |
Drive IC | ST7735S | – |
LCD Mode | ISP/TN/Normal White | – |
Backlight Type | 2 LEDs White LED | PCS |
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
We promise the long term continuity supply for this product no less than 20 years since 2001.
B. Product Applications:
C. Related products:
Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
Item | Building & Capacity Information | Remark | ||
1 | Address & Conctactor | In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China |
Cotact: fssales04@fsdzlcd.com M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038 Skype+86 189 2546 1855 Tel: +86 769 22705392-815 Fax: +86 769 22705825 |
|
2 | Staff | Direct+ Indirect Labors | +120 | |
3 | Build 1 | Office , Factory, Warehouse | 4,100M² | Total 5,000M² |
4 | Build 2 | Dormitory | 913M² | |
5 | Product Capacity | * LCM Drawing:2-7 days * LCM Sample:3-6 weeks * Lead Time for Mass *Production:4 - 8 weeks * LCM Cap: 30K/D * BL Cap:30K/D * CTP Cap:3K/D |
||
6 | Production Line | * Automatic Production Lines * Semi-Automatic Production Lines * Semi-Automatic backlight assembly lines * Capacitive touch panel assembly line * TFT&CTP optical bonding |
RFQ
1.Q: Order process
A: PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is
confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking →
Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q: RMA Process
A: Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal
report after goods received by Formike → Clients confim the analysis report → Proceeding
as per the Report both agreed
6.Q: Notes
A: Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
