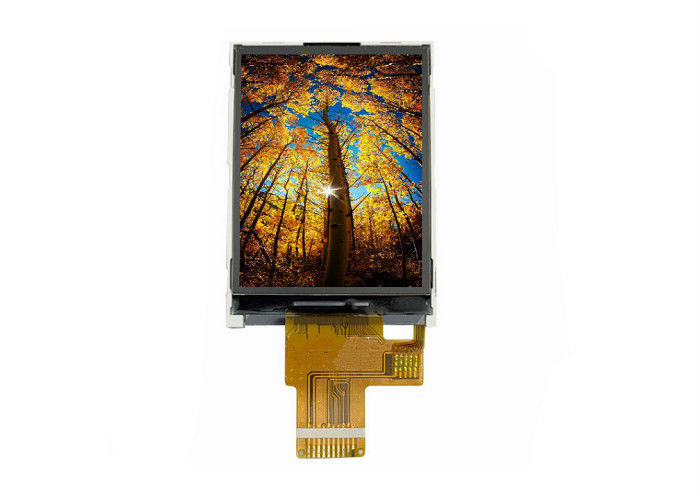

OEM ODM Lcd Display Screen 2.4 Inch TFT Lcd Module 240 x 320 Dots TFT Lcd Touchscreen Display Module
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FT2425JPY-24P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble Bag + Blister + Foam Box + Carton |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Resolution: | 240 * 320 | Size: | 2.4 Inch |
|---|---|---|---|
| Viewing Direction: | 12 O'clock | TFT Mode: | TFT, Transmissive |
| Outline Size: | 42.72 (W) X 60.26 (L) X 2.4 (T) | Brightness: | 180Cd / M2 |
| Highlight: | 240x320 TFT LCD Display,2.4 Inch TFT LCD Display,OEM TFT LCD Module |
||
Product Description
OEM ODM Lcd Display Screen 2.4 Inch TFT Lcd Module 240 x 320 Dots TFT Lcd Touchscreen Display Module
A. Specifications: Link to Download> FT2425JPY-24P-FS.pdf
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 240 x16 x 320 | Dots |
| Module Size ( W×H×T ) | 42.72(W) x 60.26(L) x 2.4 (T) | mm. |
| Pixel arrangement | RGB | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Interface | 80-system 8bits Parallel Bus | – |
| Driving IC Package | COG | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| IC Drive | ST7789V | – |
| LCD Mode | TN/Normal White | – |
| Backlight Type | 4 White LEDs in Parallel | PCS |
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
We promise the long term continuity supply for this product no less than 20 years since 2001.
B. Product Applications:
C. Structure Diagram:
Pin Definistion:
Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
| Item | Building & Capacity Information | Remark | ||
| 1 | Address & Conctactor | In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China |
Cotact: fssales04@fsdzlcd.com M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038 Skype+86 189 2546 1855 Tel: +86 769 22705392-815 Fax: +86 769 22705825 |
|
| 2 | Staff | Direct+ Indirect Labors | +120 | |
| 3 | Build 1 | Office , Factory, Warehouse | 4,100M² | Total 5,000M² |
| 4 | Build 2 | Dormitory | 913M² | |
| 5 | Product Capacity | * LCM Drawing:2-7 days * LCM Sample:3-6 weeks * Lead Time for Mass *Production:4 - 8 weeks * LCM Cap: 30K/D * BL Cap:30K/D * CTP Cap:3K/D |
||
| 6 | Production Line | * Automatic Production Lines * Semi-Automatic Production Lines * Semi-Automatic backlight assembly lines * Capacitive touch panel assembly line * TFT&CTP optical bonding |
||
RFQ
1.Q: Are you manufactory or trade company?
A: We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2. Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3. Q: How long can I expect to get the sample?
A: Contour drawing: 2-3 days Sample time: 10-15 business days
4. Q: Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
5. Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
6. Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1) Product information-Quantity,part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
7. Q: How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
