Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight

Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight

transflective lcd module

negative lcd display

Place of Origin:

Dongguan,China

Brand Name:

Fangsheng

Certification:

ISO9001:2015

Model Number:

FHSTN1976TP

Contact Us
Request A Quote
Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight
Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight
Product Details
Lcd Type:
FSTN Lcd Display
Voltage:
3.3 V
LED:
Blue
Display Mode:
Transmissive
Highlight:

transflective lcd module

,

negative lcd display

Payment & Shipping Terms
Minimum Order Quantity
500
Price
Negotiation
Packaging Details
Bubble bag + Blister + Foam box + Carton
Delivery Time
3 ~ 5 Working Days
Payment Terms
T/T,Western Union, Paypal
Supply Ability
200K Sets / Month
RELATED PRODUCTS
Good price High Quality Positive Digit FSTN LCD Screen Custom Transmissive Display TN Lcd Module For Instrumentation online video

High Quality Positive Digit FSTN LCD Screen Custom Transmissive Display TN Lcd Module For Instrumentation

Get Best Price
Good price Chinese Factory Positive Digit FSTN LCD Screen Custom Transmissive Display TN Lcd Module For Instrumentation online video

Chinese Factory Positive Digit FSTN LCD Screen Custom Transmissive Display TN Lcd Module For Instrumentation

Get Best Price
Good price Negative Digit DFSTN LCD Screen Custom Transmissive Display TN Lcd Module For Tire Pressure Gauge online video

Negative Digit DFSTN LCD Screen Custom Transmissive Display TN Lcd Module For Tire Pressure Gauge

Get Best Price
Good price Positive Digit FSTN LCD Screen 6 O Clock Custom Transmissive Display TN Lcd Module For Thermostat online video

Positive Digit FSTN LCD Screen 6 O Clock Custom Transmissive Display TN Lcd Module For Thermostat

Get Best Price
Contact Us
+86 136 3170 3190
fssales03@fsdzlcd.com
86-769-2270-5825
Contact Now
Product Description

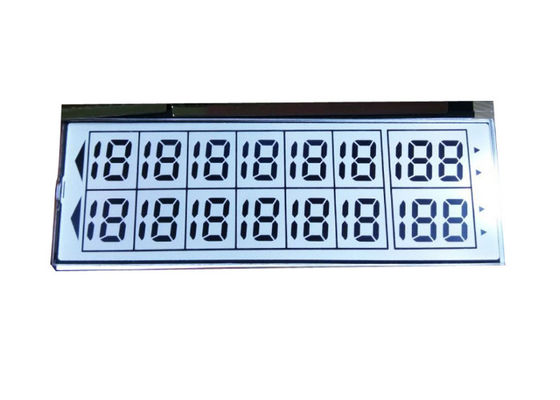

Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight



This is TN LCD display with white LED backlight.It is black icons and grey background.
We can custom make kinds of LCD display with very good display result. Welcome to inquiry us!

Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight 0

Basic Information:

ITEM
CONTENT
DESCRIPTION
1
Display Outline Size
98 ( H ) * 36 ( W ) * 1.1 mm ( T )
2
 Viewing Size
92 ( H ) * 30(W) mm
3
Voltage
3.3V
4
Operation Temperature
-20～70℃
5
Drive Parameter

1/4 Duty 1/3  Bias
6
Backlight
4pcs Led
7
Color
 White
8
Interface
Pin

  • How to make a LCD mold to get TN ,HTN,STN,FSTN,or VA LCD samples?
Firstly, please understand that there is no standard monochrome LCD display panel in monochrome LCD industry (not including color TFT LCD,COB moule and OLED) ,because specifications of LCD panel are quite different, especially size, voltage,viewing direction,graphics and so on.

In order to custom make LCD easy,please confirm these specifications below:
  1. LCD size (mm):
Customers should tell us viewing area size or total LCD size in millimeter(length,width). We will help you design a final and economic LCD size.
LCD total thickness is 2.8mm or 2.0mm or 1.7mm. Usually,2.8mm is very common thickness.
  1. LCD graphics(characters,icons)
Customers should send a simple LCD graphics(Formal CAD drawing or sketch) to us,then we will understand how many segment it is.Our engineer will make formal LCD drawing for your approval.
  1. LCD type:
1) TN,  2) HTN,  3) STN, 4) FSTN, 5) VA, 6) DFSTN

Custom Monochrome Gray FSTN 7 Segment Lcd Display With White LED Backlight 1

How to choose LCD type?

* Usually,TN LCD is used very widely,Such as power meter LCD,telephone LCD, calculator LCD, electric cooker LCD and so on. TN LCD is cheapest,but viewing angle is narrow.
* HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD.
* STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much!
STN LCD not only can make segment LCD,but also can make dot matrix LCD.
Unit price of STN LCD is higher than HTN LCD.
* D/FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's.
* VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general, VA LCD has a excellent display result.If you want a wonderful display result, VA LCD will be your best choice.

Price of VA is similar with FSTN LCD.
