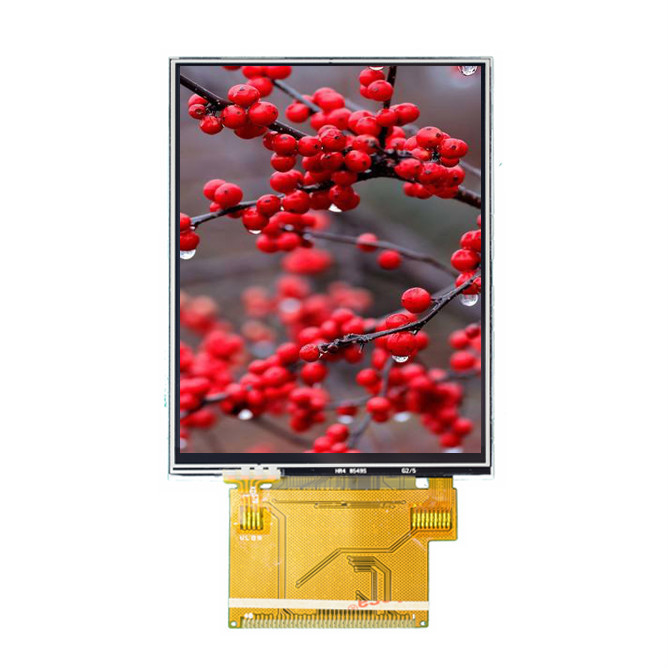

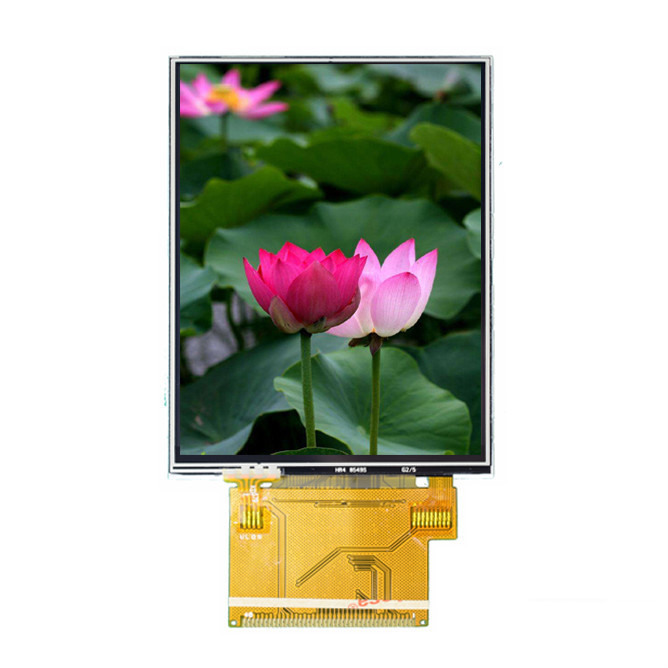

2.8 Inch TFT Lcd Module Touch Screen Resolution 240 * 320 Dots Matrix SPI Interface Display Module
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | TFT2806N03JPY-14P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD 5.6 - 6.5/ Piece |
| Packaging Details: | Bubble Bag + Blister + Foam Box + Carton |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Resolution: | 240 * 320 | Size: | 2.8 Inch |
|---|---|---|---|
| Viewing Direction: | 6 O ' Clock | TFT Mode: | TFT, Transmissive |
| Outline Size: | 50 Mm * 69.20 Mm * 2.3 Mm T | Brightness: | 280 Cd / M2 |
| High Light: | lcd monitor module,tft lcd touchscreen display |
||
Product Description
2.8 Inch TFT Lcd Module Touch Screen Resolution 240 * 320 Dots Matrix SPI Interface Display Module
A. Specifications:
|
Item
|
Contents
|
Description
|
|
1
|
Product Name
|
2.8 Inch TFT 240RGB x 320 Lcd Module
|
|
2
|
Module Size
|
50 mm * 69.20 mm * 2.30 mm T
|
|
3
|
Resolution
|
240 * 320
|
|
4
|
Interface
|
SPI
|
|
5
|
Touch-Panel Type
|
RESISTIVE Or WITHOUT, CAPACTIVE
|
|
6
|
Interface Type
|
16 Bit MCU
|
|
7
|
Colors
|
65K
|
|
8
|
Controller / Driver
|
ST7789V
|
| 9 | Light Source | 4 White LEDs in Parallel |
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
TFT2806N03JPY-14P is 240 * 320 dots Lcd Module wtih SPI Interface.
B. Product Applications:
C. Structure Diagram:
Pins Definition:
Products List
| Item | Size Inch | Dot Format | A.A. (mm) | Outline Size (mm) |
Contrast (Cr) |
Backlight | Brightness | Interface | Panel | Controller | Touch Panel | view angle | comments |
| 1 | 1.44 | 128xRGBx128 | 25.5x26.5 | 32.36x38.0x2.6 | 500 | 1LED | 240 | SPI | CPT | ST7735S | CPT | 6:00 | 10pin |
| 2 | 1.77 | 128xRGBx160 | 28.03*35.04 | 34.70x46.7x2.5 | 500 | 2LED | 320 | 8bits parallel | CPT | ST7735S | CPT | 6:00 | 20pin |
| 3 | 2 | 176xRGBx220 | 31.68x39.60 | 37.68X51.30X2.23 | 500 | 3LED | 180 | 8bits parallel | HSD | ILI9225G | - | 12:00 | 20pin |
| 4 | 2.3 | 320xRGBx240 | 46.75x35.06 | 51.0X45.8X2.3 | 500 | 4LED | 280 | SPI | TM | ILI9342C | 6:00 | 14pin | |
| 5 | 2.36 | 480X234 | 48.00x35.69 | 55.2x44.75x2.9 | 250 | 2LED | 250 | 8bits RGB | CPT | OTA5182A | 6:00 | 40pin | |
| 6 | 2.4 | 240xRGBx320 | 36.72x48.96 | 42.72x60.26x2.46 | 250 | 4LED | 200 | 8bits80 parallel | CMO | ILI9341V | RTP | 6:00 | 37pin |
| 7 | 2.7 | 240xRGBx320 | 54.00x40.50 | 62.60x45.70x2.45 | 400 | 4LED | 350 | 8bits RGB | CPT | ILI9341V | RTP | 3:00 | 40pins |
| 8 | 2.83 | 240xRGBx320 | 43.2X57.6 | 50X69.2X2.4 | 500 | 4LED | 250 | 8/16bits parallel | TM | ILI9341V | 6:00 |
37pin, sold |
|
| 9 | 3.5 | 320xRGBX480 | 48.96X73.44 | 54.66X82.9X2.1 | 500 | 6LED | 380 | 18bits RGB+SPI | HSD | ST7796S | RTP | 6:00 |
45pin, connector type |
| 10 | 4.3 | 480xRGBX272 | 95.04X53.856 | 105.5X67.2X4.2 | 500 | 2x5LED | 350 | 24bits RGB | CMO | HX8257A -C | with RTP/CTP | 6/IPS | 40pin connector |
| 11 | 5 | 800xRGBX480 | 108x64.8 | 120.7x75.8x4.3 | 400 | 2x6LED | 480 | 24bits RGB | TM | HX8664B+ | with RTP/CTP |
12:00 /IPS |
40pin |
| 12 | 5.7 | 640xRGBX480 | 115.2X86.4 | 127.0X98.4X7.0 | 250 | 3x7LED | 700 | 18bits RGB | CMO | HX8250A+ | with RTP/CTP | 6/IPS | 40pin |
| 13 | 6.2 | 800xRGBX480 | 137.52x77.23 | 155.2X88.2X6.5 | 600 | 3x6LED | 250 | 24bits RGB | HSD |
ILI6123H+ ILI5480 |
with RTP/CTP | 6/IPS | 60pin |
| 14 | 7 | 800xRGBX480 1024xRGBx600 | 154.08x85.92 | 164.9X100X7.2 | 500 | 7x3LED | 350 | 24bits RGB | Innolux |
HX8264+ HX8664, X8282 |
with RTP/CTP |
12:00 /IPS |
50pin |
| 15 | 8 | 800xRGBx600 | 162.0x121.5 | 183.0x141.0x6.2 | 500 | 9x3LED | 500 | 24bits RGB | Innolux | TBD | with RTP/CTP |
12:00/ IPS |
50pin |
| 16 | 10.1 | 1024xRGBx600 | 222.72x125.28 | 235.0x143.0x5.0 | 600 | 13x3LED | 450 | LVDS | CPT |
HX8696+ HX8282 |
with RTP/CTP |
12:00 /IPS |
40pin connector |
