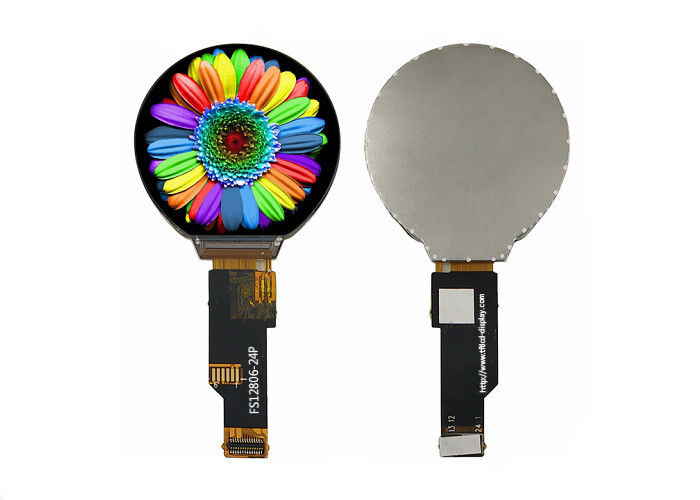

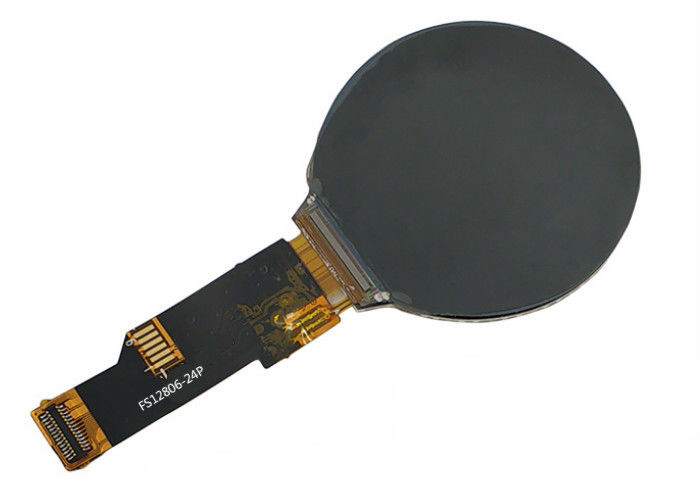

1.28 Inch TFT Lcd Round Display 240 * 240 Dots Small Lcd With Mcu / Spi / Rgb Interface
Product Details:
Place of Origin: | Dongguan,China |
Brand Name: | Fangsheng |
Certification: | ISO9001:2015 |
Model Number: | FS12806-24P |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 |
---|---|
Price: | USD 6.5 - 9.5 / Piece |
Packaging Details: | Bubble Bag + Blister + Foam Box + Carton |
Delivery Time: | 3~5 Working Days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
Supply Ability: | 200K Sets / Month |
Detail Information |
|||
Resolution: | 240 * 240 | Size: | 1.28 Inch |
---|---|---|---|
Viewing Direction: | 12 O ' Clock | TFT Mode: | TFT, Transmissive |
Outline Size: | 35.6 * 37.74 Mm * 1.56 T | Brightness: | 160Cd / M2 |
Type: | LCM, TFT, COG | ||
Highlight: | tft touch screen display,tft lcd panel,TFT LCD Round Display 240 * 240 Dots |
Product Description
1.28 Inch TFT Lcd Round Display 240 * 240 Dots Small Lcd With Mcu / Spi / Rgb Interface
A. Specifications:
FS12806-24(1) -Round.pdf
Item
|
Contents
|
Description
|
1
|
Product Name
|
1.28 Inch Round TFT Lcd Display 240 * 320 Dots
|
2
|
Module Size
|
35.6 mm * 37.74 mm * 1.56 mm T
|
3
|
Resolution
|
240 * 240
|
4
|
Panel Type
|
a-si TFT
|
5
|
View Angle
|
Full O ' Clock
|
6
|
Interface Type
|
RGB 6Bit Interface
|
7
|
Pins Number
|
24 Pins
|
8
|
Controller / Driver
|
ST7789V
|
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
FS12806-24P is 240 *240 dots color TFT Lcd Module with ST7789V controller. We promise the long term continuity supply for this product no less than 20 years since 2001.
B. Structure Diagram:
Pin Definistion:
Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
em | Building & Capacity Information | Remark | ||
1 | Address & Conctactor | In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China |
Cotact:fssales04@fsdzlcd.com M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038 Skype+86 189 2546 1855 Tel: +86 769 22705392-815 Fax: +86 769 22705825 |
|
2 | Staff | Direct+ Indirect Labors | +120 | |
3 | Build 1 | Office , Factory, Warehouse | 4,100M² | Total 5,000M² |
4 | Build 2 | Dormitory | 913M² | |
5 | Product Capacity | * LCM Drawing:2-7 days * LCM Sample:3-6 weeks * Lead Time for Mass *Production:4 - 8 weeks * LCM Cap: 30K/D * BL Cap:30K/D * CTP Cap:3K/D |
||
6 | Production Line | * Automatic Production Lines * Semi-Automatic Production Lines * Semi-Automatic backlight assembly lines * Capacitive touch panel assembly line * TFT&CTP optical bonding |
