Name: Custom Segment LCD Display for Motorcycle Instrument Display OEM ODM TN HTN STN FSTN
Brand: HongKong Guanke Industrial Limited
SKU: FS-HTN
Price: 3.10 USD
Availability: InStock

Home > products > HTN LCD Display >

Custom Segment LCD Display for Motorcycle Instrument Display OEM ODM TN HTN STN FSTN

Custom motorcycle LCD display

HTN LCD instrument panel

OEM segment LCD display

Place of Origin:

Dongguan,China

Brand Name:

Fangsheng

Certification:

ISO9001:2015,IATF16949,RoHS,Reach,etc

Model Number:

FS-HTN

Request A Quote

Custom Segment LCD Display for Motorcycle Instrument Display OEM ODM TN HTN STN FSTN

Product Details

Product Name:

Custom Segment LCD Display For Motorcycle Instrument Display OEM ODM TN HTN STN FSTN

Display Type:

HTN,negative Mode

Connector Type:

PIN(Customized)

Interface Type:

Parallel Interface,SPI,RS232,MCU,etc

Viewing Direction:

6 O’clock(Customized)

Operating Voltage:

5V (Customized)

Highlight:

Custom motorcycle LCD display

HTN LCD instrument panel

OEM segment LCD display

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.1-$8

Packaging Details

Bubble Bag + Blister + Foam Box + Carton

Delivery Time

25-30 DAYS

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,

Supply Ability

200K Sets / Month

HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display

Get Best Price

Custom ROHS Compliant HTN Segment LCD 7 Segment LCD Display for Industrial Control

Get Best Price

Custom Segment LCD Display for Instruments Custom HTN LCD Display with Backlight

Get Best Price

video

Metal PIN LCD Digital Display / HTN Positive Transflective Segment LCD Display

Get Best Price

+86 136 3170 3190

fssales03@fsdzlcd.com

86-769-2270-5825

Contact Now

Product Description

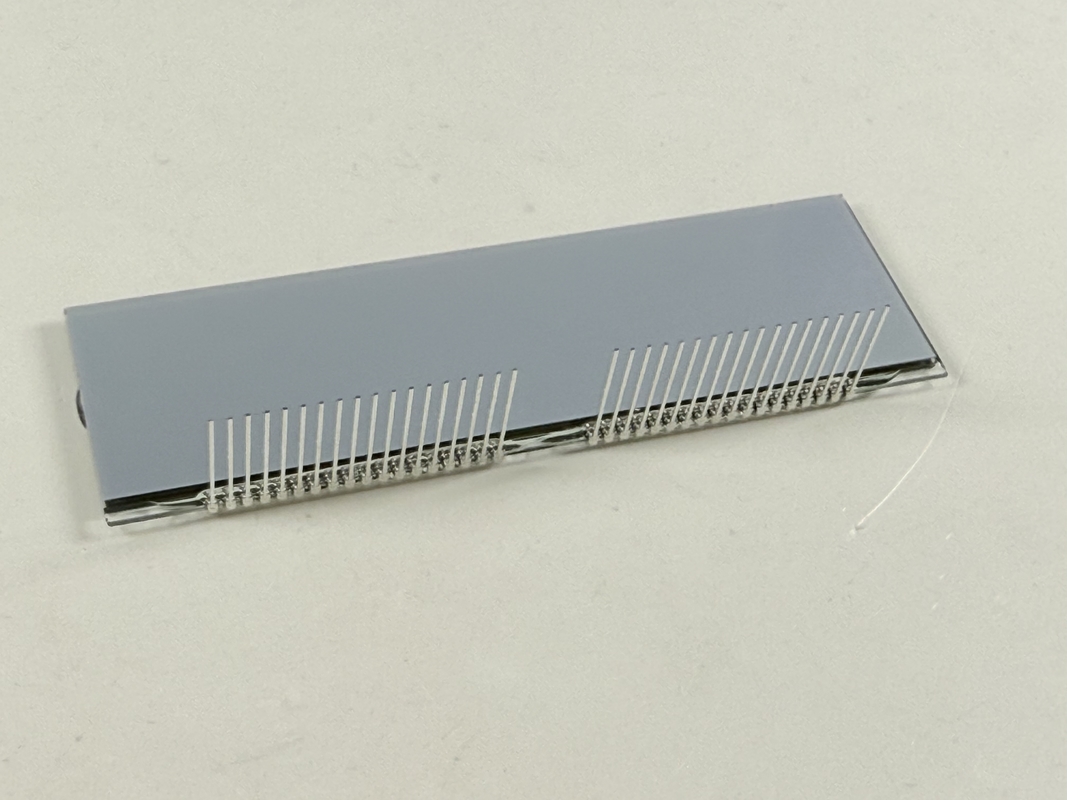

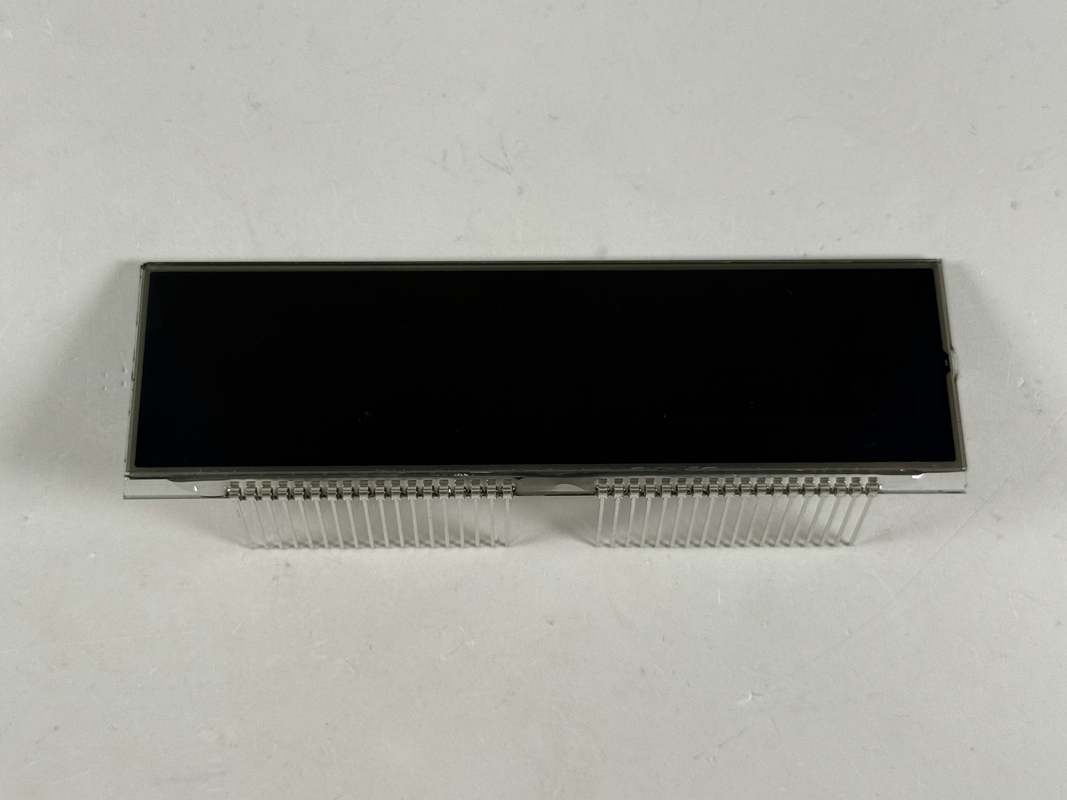

Custom Segment LCD Display for Motorcycle Instrument Display OEM ODM TN HTN STN FSTN

Product Specifications

Attribute	Value
Product name	Custom Segment LCD Display for Motorcycle Instrument Display OEM ODM TN HTN STN FSTN
Display Type	HTN, negative mode
Connector Type	PIN (Customized)
Interface type	Parallel Interface, SPI, RS232, MCU, etc
Viewing Direction	6 o'clock (Customized)
Operating Voltage	5V (Customized)

Technical Details

Parameter	Value	Description
LCD Type	HTN, Negative	High Transmissive Nematic with dark segments on bright background
Drive Configuration	1/4 Duty, 1/3 Bias	Specifies duty cycle and bias ratio for driving LCD
Viewing Direction	6 O'Clock	Ideal angle to read display clearly
Operating Range	-30°C to +80°C	Temperature range during normal operation
Storage Range	-40°C to +85°C	Temperature limits for storage
Supply Voltage	5.0 V	Nominal operating voltage
Refresh Frequency	64 Hz	Frame update rate for stable display
Front Polarizer	Transmissive with Adhesive	Type and mounting method of front polarizer
Back Polarizer	Transflective with Adhesive	Type and mounting method of back polarizer
Connector	PIN	Electrical connection interface

Segment LCD Features

High Readability - Displays numbers, letters, and symbols clearly, easy to read at a glance.
Energy Efficient - Consumes very little power, suitable for battery-operated devices.
Affordable Display Option - Low-cost alternative to graphic or full-color screens.
Reliable Performance - Stable and durable even under long-term operation.
Wide Application - Can be integrated into meters, medical devices, home appliances, and other electronics.
