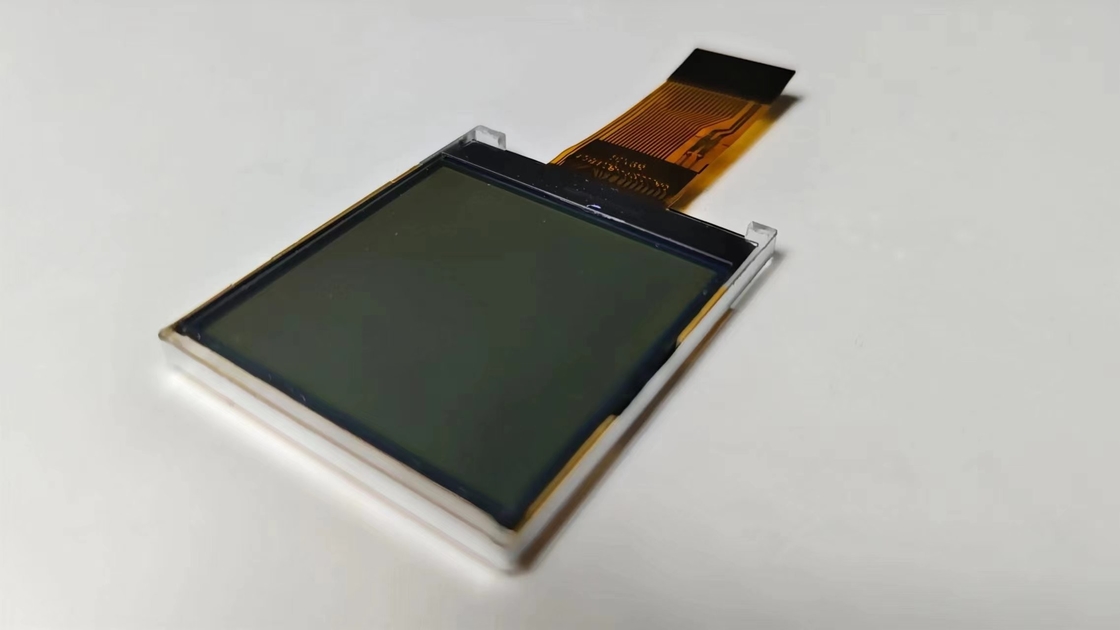

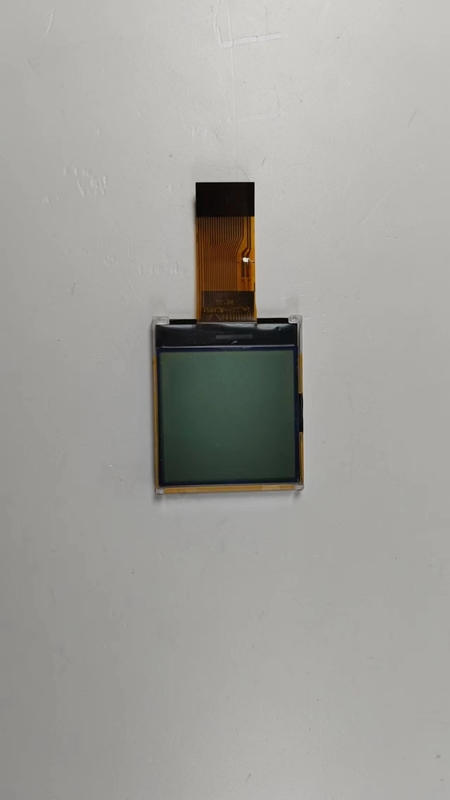

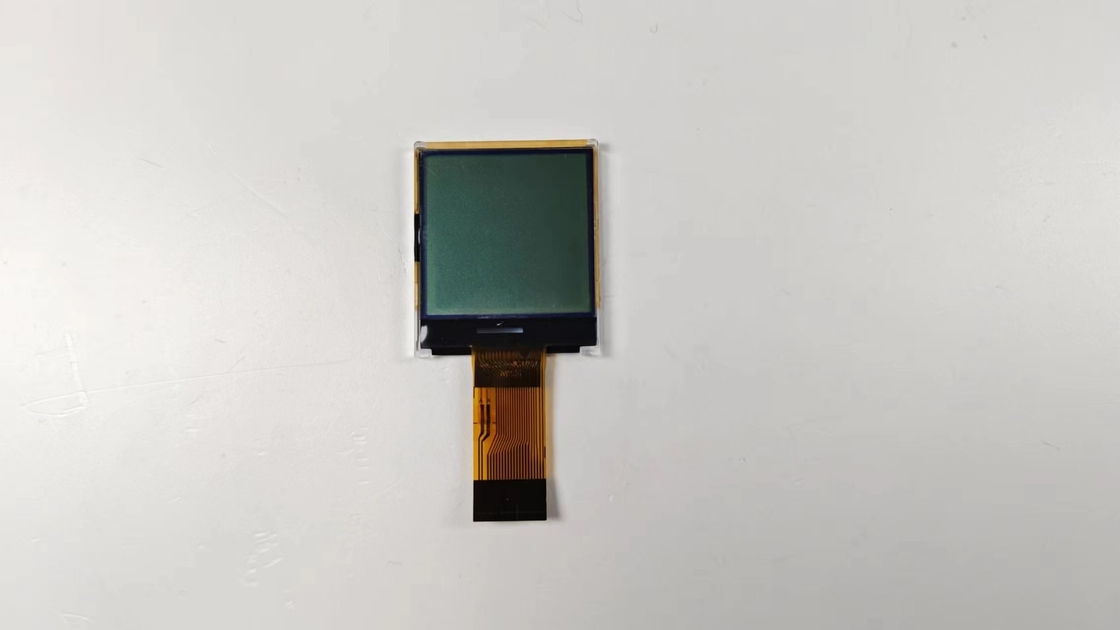

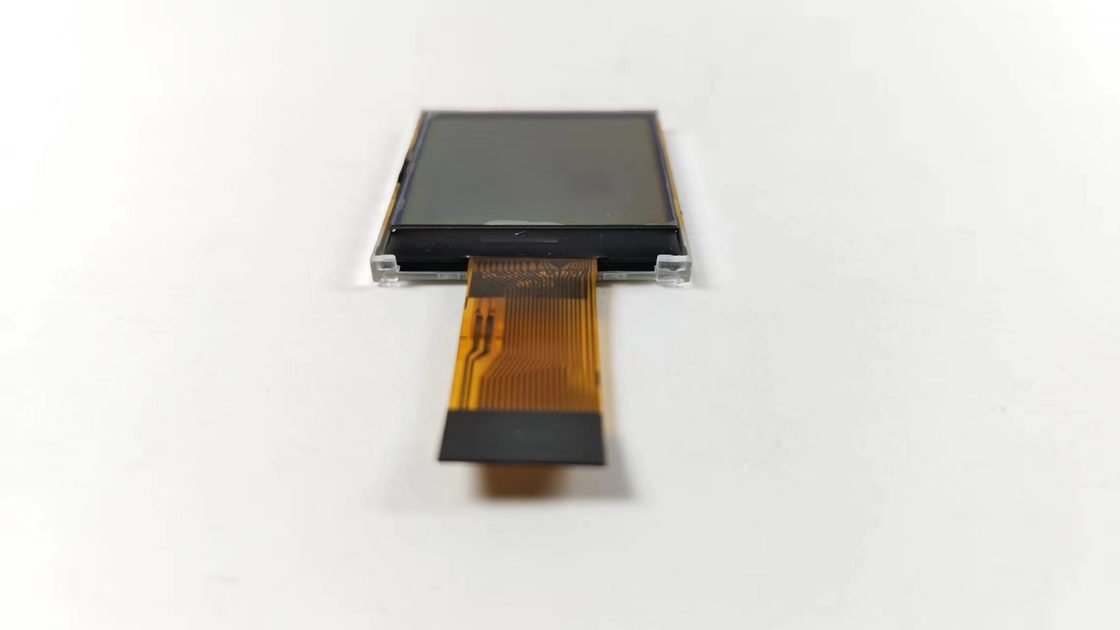

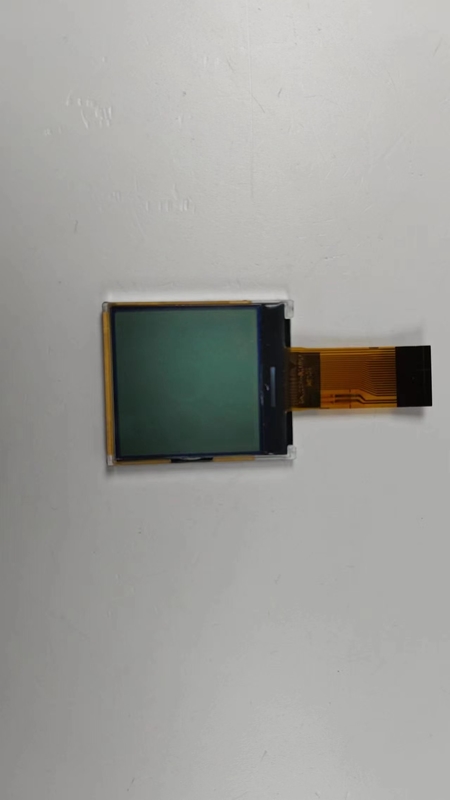

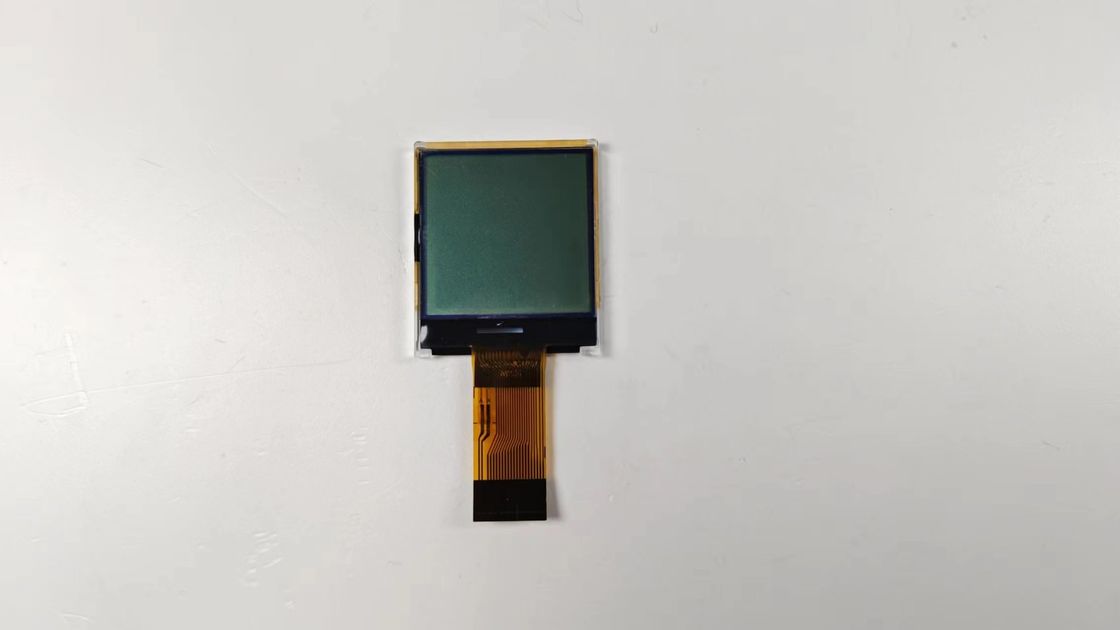

FSTN Graphic COG Display Screen Dot Matrix Lcd Module Custom 128*128 for Lamp
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FFP3041FC01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 10~15 Working Days |
| Payment Terms: | T/T,Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Resolution: | 128*128 | Display Mode: | Transfletive |
|---|---|---|---|
| Display Type: | FSTN Positive | Viewing Direction: | 6 O'clock |
| Outline Size: | 35.1 X 30.9 X 3 Mm | Viewing Size: | 26.355x 25.33 Mm |
| Operating Temperature: | -20-+70℃ | Storage Temperature: | -30-+80℃ |
Product Description
FSTN Graphic COG Display Screen Dot Matrix Lcd Module Custom 128*128 for Lamp
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | TN, HTN, FSTN, VA, DFSTN ,STN Lcd Display |
| 2 | Outline Size | Customized |
| 3 | VA Size | Custom |
| 4 | Viewing Direction | 6 O'clock or 12 O ' clock |
| 5 | Voltage | 2.8V,3.0V, 3.2V,3.6V,4.0V,4.5V,5.0V |
| 6 | Display Mode | Positive or Negative |
| 7 | Backlight | With or without |
| 8 | Operation temp | 0°C TO + 50°C,-10°C TO + 60°C,-20°C TO + 70°C, |
| 9 | Storage temp | - 10°C TO + 60°C, - 20°C TO + 70°C,-30°C TO + 80°C,- 35°C TO + 90°C |
| 10 | Contactor | Pin, Zebra or FPC |
What is COG LCD ?
This is an LCD technology where the controller chip used to drive the LCD is mounted directly onto the LCD glass.
Mounting the controller directly onto the LCD glass allows the module to be built without the need for a PCB. The three main components of a chip on glass is the glass, the controller driver chip, and the cable.
As a general rule the cost of a COG is less than that of a COB. Without being mounted to a circuit board, COG displays do not come equipped with mounting holes. Instead the COG display is mounted to the chassis if the manufacturer’s product uses double-sided tape.
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1 . GB/T19001-2016 idt ISO9001:2015
2 . CE & ROHS
3 . SGS of LCD Display
F. FAQ
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name and address with post code,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
E. PAYMENT
Standard payment terms: pay 30% deposit in advance, 70% balance before shipment.
Online trade assurance order, all is up to you.
Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology,and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing
