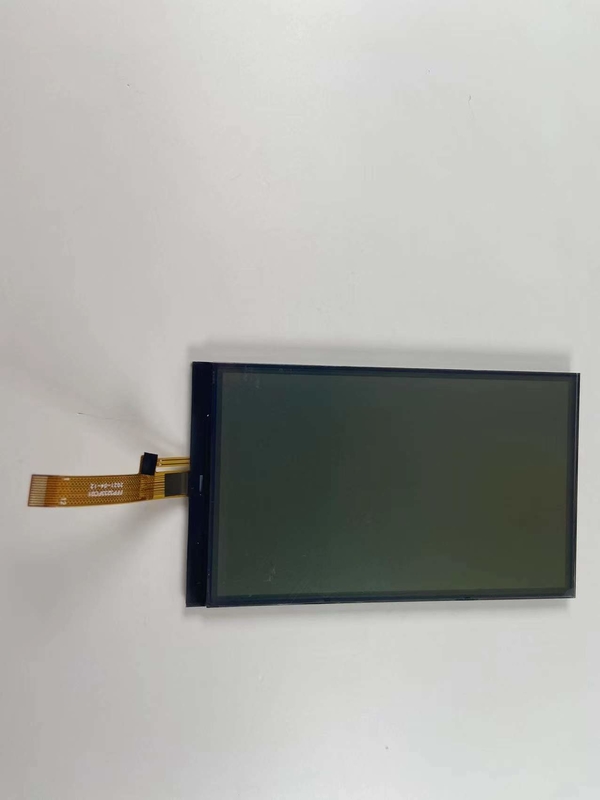

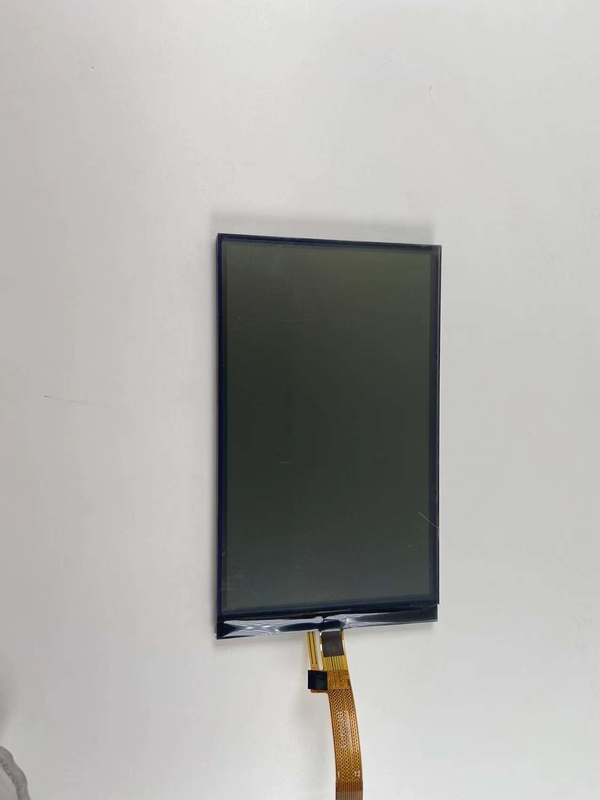

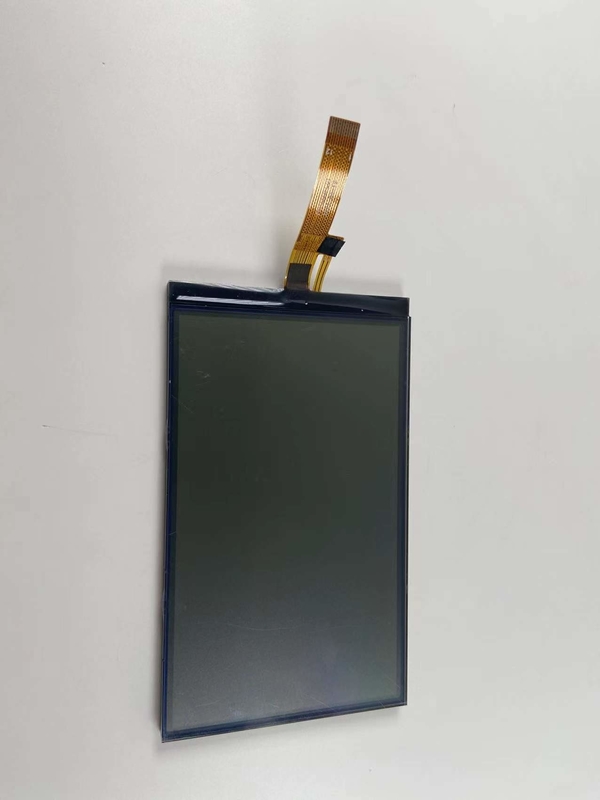

FSTN Graphic COG Display Screen Dot Matrix Lcd Module Custom 128*64
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FFP3233FC01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 10~15 Working Days |
| Payment Terms: | T/T,Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Resolution: | 128*64 | Display Mode: | Transfletive |
|---|---|---|---|
| Display Type: | FSTN Positive | Viewing Direction: | 6 O'clock |
| Outline Size: | 60.20 X 102.48 X 3 Mm | Viewing Size: | 56.2 X 93.48 Mm |
| Operating Temperature: | -20-+70℃ | Storage Temperature: | -30-+80℃ |
| High Light: | FSTN Graphic COG Display Screen,Dot Matrix Lcd Module,COG LCD Module 128*64 |
||
Product Description
Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology,and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
Dot Matrix Lcd Module Custom 128x128 128x64 Dot Lcd FSTN Graphic Display Screen
|
ITEM
|
CONTENT
|
DESCRIPTION
|
|
1
|
Display Model
|
positive
|
|
2
|
Display type
|
FSTN
|
|
3
|
Polarizer type
|
transflective
|
|
4
|
Viewing angle
|
6 o'clock
|
|
5
|
Driving Method
|
1/4 duty, 1/3bias
|
|
6
|
Interface
|
SPI-3LINE
|
|
7
|
Backlight
|
LED backlight
|
|
8
|
Driver IC
|
AiP31033E
|
|
9
|
Voltage
|
4.0V
|
What is COG LCD ?
This is an LCD technology where the controller chip used to drive the LCD is mounted directly onto the LCD glass.
Mounting the controller directly onto the LCD glass allows the module to be built without the need for a PCB. The three main components of a chip on glass is the glass, the controller driver chip, and the cable.
As a general rule the cost of a COG is less than that of a COB. Without being mounted to a circuit board, COG displays do not come equipped with mounting holes. Instead the COG display is mounted to the chassis if the manufacturer’s product uses double-sided tape.
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1 . GB/T19001-2016 idt ISO9001:2015
2 . CE & ROHS
3 . SGS of LCD Display
