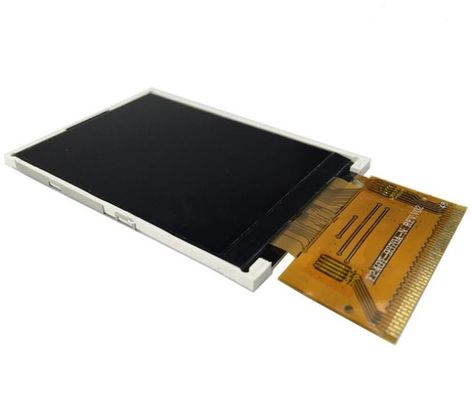

Capacitive Touchscreen TFT Lcd Display , 240x320 2.4" TFT Lcd Module

Capacitive Touchscreen TFT Lcd Display , 240x320 2.4" TFT Lcd Module

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FS24112-45P-1

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Bubble Bag + Blister + Foam Box + Carton
Delivery Time: 3~5 Working Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Resolution: 240 * 320 Size: 2.4 Inch
Viewing Direction: 12 O'clock TFT Mode: TFT, Transmissive
Outline Size: 42.72 Mm (W) X 60.26 Mm (L) X 2.6 (T) Brightness: 180Cd / M2
High Light:

Capacitive Touchscreen TFT Lcd Display

,

240x320 TFT Lcd Module

,

2.4" TFT Lcd Module

Product Description

2.4 inch TFT Screen 240x(RGB)x320 dot matrix lcd monitor module ILI9341V

A. Specifications: Linked to Download►




Item Nominal Dimension Unit
Dot Matrix 240 x RGB x 320 Dots
Module Size ( W×H×T ) 42.72  (W) x 60.26 (L) x 2.6 (T) mm.
Dot Pitch ( W×H ) 0.153 (H) x 0.153 (V) mm.
Interface MCU or SPI
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
IC Drive ST7789V or  ILI9341V
LCD Mode TN/IPS/Normal White
Backlight Type 4 White LEDs in Parallel PCS


Our Advantage:


1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days



Our Certificates:


1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display




We promise the long term continuity supply for this product no less than 20 years since 2001.

Capacitive Touchscreen TFT Lcd Display , 240x320 2.4" TFT Lcd Module 0

Capacitive Touchscreen TFT Lcd Display , 240x320 2.4" TFT Lcd Module 1


C. Structure Diagram:
 Capacitive Touchscreen TFT Lcd Display , 240x320 2.4" TFT Lcd Module 2

Capacitive Touchscreen TFT Lcd Display , 240x320 2.4" TFT Lcd Module 3


Product List

Main Products: including 1.44",1.5",1.54",1.77", 2.0",2.4", 2.7", 2.8", 3.0",3.5", 4.3", 5.0", 7.0", 8.0", 9.7",10.1", 13.3" TFT LCD Modules, Resistive Touch panel and Capacitive Touch panel products.



No Size Inch Dot Format Outline Size (mm) Contrast(Cr) Backlight Brightness Interface Touch Panel
1 1.44 128xRGBx128 32.36x38.0x2.6 500 1LED 240 SPI -
2 1.77 128xRGBx160 34.70x46.7x2.5 500 2LED 320 8bits parallel -
3 2.0 176xRGBx220 37.68X51.30X2.23 500 3LED 180 8bits parallel -
4 2.3 320xRGBx240 51.0X45.8X2.3 500 4LED 280 SPI -
5 2.36 480X234 55.2x44.75x2.9 250 2LED 250 8bits RGB -
6 2.4 240xRGBx320 42.72x60.26x2.46 250 4LED 200 8bits80 parallel RTP/CTP
7 2.7 240xRGBx320 62.60x45.70x2.45 400 4LED 350 8bits RGB RTP
8 2.83 240xRGBx320 50X69.2X2.4 500 4LED 250 8/16bits parallel RTP
9 3.5 320xRGBX480 54.66X82.9X2.1 500 4LED 380 18bits RGB+SPI RTP/CTP
10 4.3 480xRGBX272 105.5X67.2X4.2 500 6LED 450 24bits RGB RTP/CTP
11 5 800xRGBX480/1024x600 120.7x75.8x4.3 400 2x5LED 480 24bits RGB RTP/CTP
12 5.7 640xRGBX480 127.0X98.4X7.0 250 2x6LED 700 18bits RGB RTP/CTP
13 6.2 800xRGBX480 155.2X88.2X6.5 600 3x7LED 250 24bits RGB RTP/CTP
14 7 800xRGBX480 1024xRGBx600 164.9X100X7.2 500 7x3LED 350 24bits RGB RTP/CTP
15 8 800xRGBX480 1024xRGBx600 183.0x141.0x6.2 500 9x3LED 500 24bits RGB RTP/CTP
16 10.1 800xRGBX480 1024xRGBx600 235.0x143.0x5.0 600 13x3LED 450 LVDS RTP/CTP





Fangsheng
is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.



Item Building & Capacity Information Remark
1 Address & Conctactor In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China

Cotact: fssales04@fsdzlcd.com

Or Fancy@fsdzlcd.com

M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038

Skype+86 189 2546 1855

Tel: +86 769 22705392-815

Fax: +86 769 22705825


2 Staff Direct+ Indirect Labors +120
3 Build 1 Office , Factory, Warehouse 4,100M² Total 5,000M²
4 Build 2 Dormitory 913M²
5 Product Capacity * LCM Drawing:2-7 days
* LCM Sample:3-6 weeks
* Lead Time for Mass *Production:4 - 8 weeks
* LCM Cap: 30K/D
* BL Cap:30K/D
* CTP Cap:3K/D

6 Production Line * Automatic Production Lines
* Semi-Automatic Production Lines
* Semi-Automatic backlight assembly lines
* Capacitive touch panel assembly line
* TFT&CTP optical bonding




RFQ

1.Q: Are you manufactory or trade company?



A: We are professional manufactory, which specializes in monochrome LCD, LED backlights, LCM modules Since 2001 in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!





2. Q: How can I get the samples?



A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect





3. Q: How long can I expect to get the sample?



A: Stock Samples L/T : 1~2 days; Customized Samples: Contour drawing: 2-3 days Sample time: 10-15 business days





4. Q: Will you offer free sample?



A: Yes, we usually provide 3-5pcs free samples, you just need to pay freight cost for stock samples. For custom samples, you just need to pay the tooling charge.





5. Q: Can you design the lcd in acccordance with our demand?



A: Sure.We will give you the best tooling charge.





6. Q: How to place orders ?



A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.



1) Product information-Quantity,part number



2) Delivery time required.



3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4) Forwarder's contact details if you have any in China.





7. Q: How long of mass production ?



A: 25-30 business days. It depends on different order quantities.
