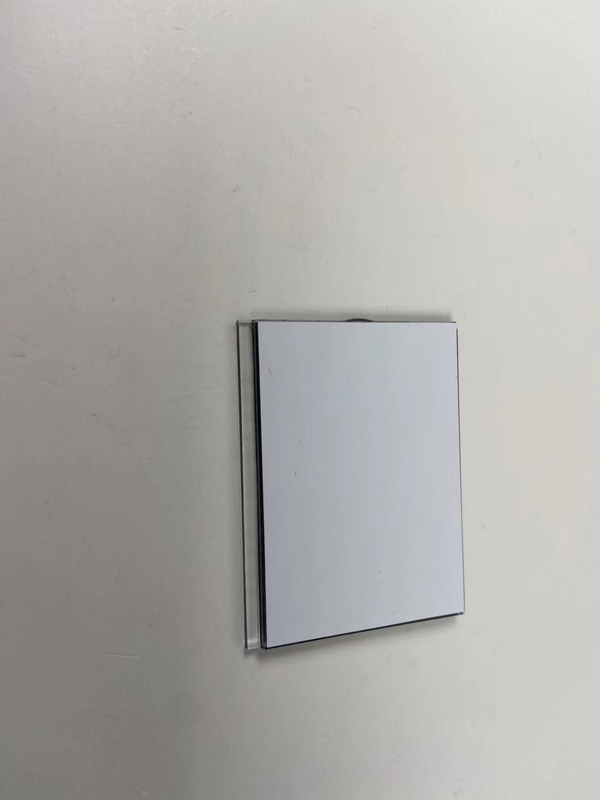

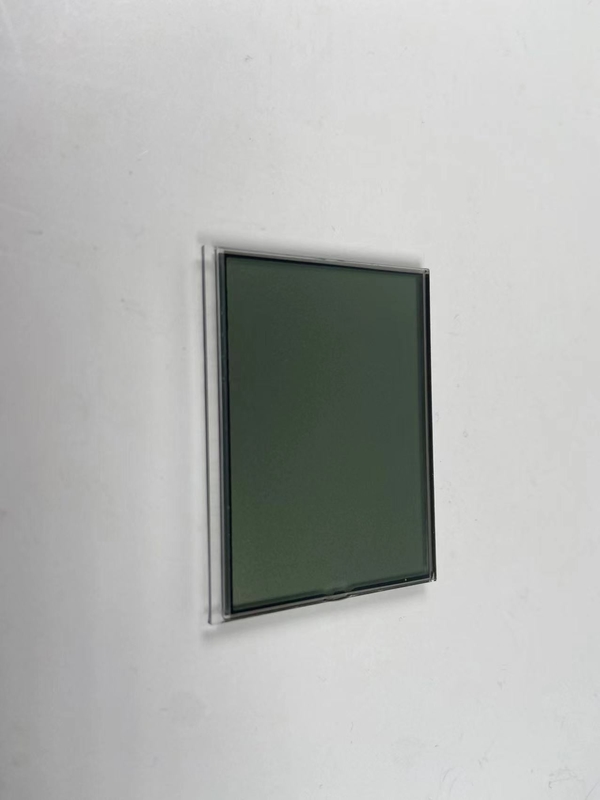

Monochrome TN Lcd Display , Lower Power Custom FSTN Dot Matrix Display
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FTP3629RX01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 7-10 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, Credit Card, D/A, D/P, L/C |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Type: | TN LCD Display | Storage Temp:: | -20-+70℃ |
|---|---|---|---|
| Voltage: | 2.8~5.0 V | Connector: | Pin Or Zebra |
| Driving Method: | Static/Dynamic | Polarizer Type: | Transflective/Transmissive/Reflective |
| High Light: | ISO9001 Certified TN Lcd Display,Lower Power TN Lcd Display,3.0V TN Lcd Display |
||
Product Description
Monochrome Lcd TN Display Lower Power Lcd Custom FSTN Dot Matrix Display
Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology,and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
- VA LCD Glass Panel
- Negative Display
- 6 o'clock Viewing Direction
- Operating Temp: -0°C to 50°C
- Storage Temp: -10°C to 60°C
- Reflective Polarizer
- ROHS Compliant
A. Specifications:
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | TN, HTN, FSTN, VA, DFSTN ,STN Lcd Display |
| 2 | Outline Size | Customized |
| 3 | VA Size | Custom or 68*65/65mm*1.1T |
| 4 | Viewing Direction | 6 O'clock or 12 O ' clock |
| 5 | Voltage | 2.8V,3.0V, 3.2V,3.6V,4.0V,4.5V,5.0V |
| 6 | Display Mode | Positive or Negative |
| 7 | Backlight | With or without |
| 8 | Operation temp | 0°C TO + 50°C,-10°C TO + 60°C,-20°C TO + 70°C, |
| 9 | Storage temp | - 10°C TO + 60°C, - 20°C TO + 70°C,-30°C TO + 80°C,- 35°C TO + 90°C |
| 10 | Contactor | Pin, Zebra or FPC |
>>What is the DFSTN Lcd Display:
DFSTN LCD display means double film FSTN LCD mode, compare to FSTN mode, DFSTN has two layers of optical compensating films, the optical compesating film could compesate the ellipse polarized light to linear polarized, and make the DFSTN LCD has better contrast than yellow-green mode or blue mode STN LCD. DFSTN LCD is higher contrast, and more blacker background, high transmissive ratio.
DFSTN lcd could compesate the viewing angle of STN LCD, DFSTN has a larger viewing angle than TN or STN LCD.
F. FAQ
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name and address with post code,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
E. PAYMENT
Standard payment terms: pay 50% deposit in advance, 50% balance before shipment.
Online trade assurance order, all is up to you.
