TN 6 O'Clock Monochrome Transflective Custom Lcd Display For Instrument

TN 6 O'Clock Monochrome Transflective Custom Lcd Display For Instrument

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FSTN3672NO01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T, Western Union, Paypal, Credit Card, D/A, D/P, L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: STN LCD Display Storage Temp:: 0~50, -10~60, -20-+70℃, -30~80
Voltage: 2.8~5.0 V Connector: Pin Or Zebra
Driving Method: Static/Dynamic Polarizer Type: Transflective/Transmissive/Reflective
High Light:

TN Monochrome Lcd Display Module


Transflective Monochrome Lcd Display


STN Transflective Custom Lcd Display

Product Description

TN lcd 6 o'clock monochrome lcd display Transflective custom lcd display for Instrument

Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology,and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.

  • TN LCD Glass Panel
  • Positive Display
  • 6 o'clock Viewing Direction
  • Operating Temp: -20°C to 80°C
  • Storage Temp: -20°C to 80°C
  • Reflective Polarizer
  • ROHS Compliant

A. Specifications:


1 Lcd Type TN, HTN, FSTN, VA, DFSTN ,STN Lcd Display
2 Outline Size Customized
3 VA Size Custom or 68*65/65mm*1.1T
4 Viewing Direction 6 O'clock or 12 O ' clock
5 Voltage 2.8V,3.0V, 3.2V,3.6V,4.0V,4.5V,5.0V
6 Display Mode Positive or Negative
7 Backlight With or without
8 Operation temp 0°C TO + 50°C,-10°C TO + 60°C,-20°C TO + 70°C,
9 Storage temp - 10°C TO + 60°C, - 20°C TO + 70°C,-30°C TO + 80°C,- 35°C TO + 90°C
10 Contactor Pin, Zebra or FPC

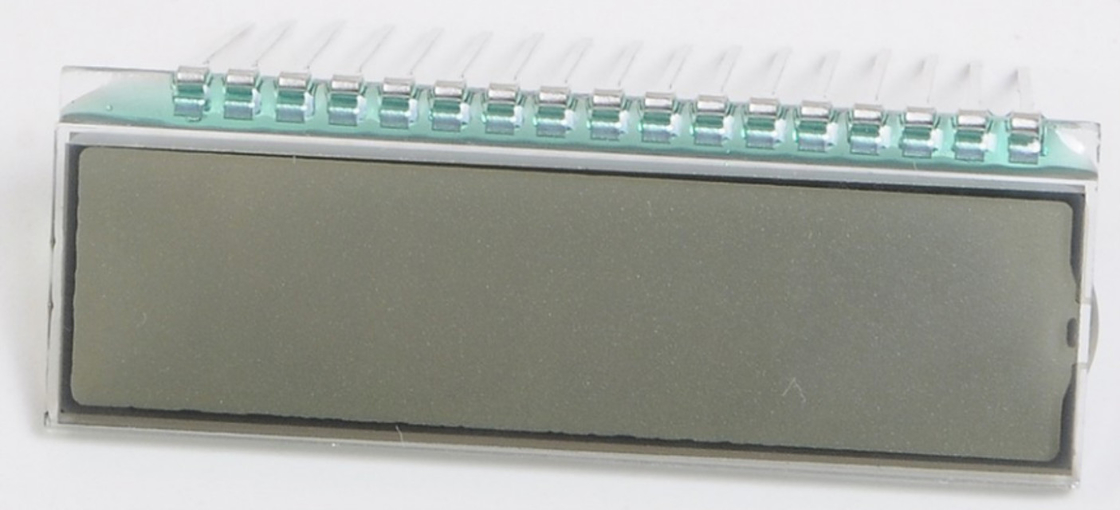

TN 6 O'Clock Monochrome Transflective Custom Lcd Display For Instrument 0


>>What is the DFSTN Lcd Display:

DFSTN LCD display means double film FSTN LCD mode, compare to FSTN mode, DFSTN has two layers of optical compensating films, the optical compesating film could compesate the ellipse polarized light to linear polarized, and make the DFSTN LCD has better contrast than yellow-green mode or blue mode STN LCD. DFSTN LCD is higher contrast, and more blacker background, high transmissive ratio.

DFSTN lcd could compesate the viewing angle of STN LCD, DFSTN has a larger viewing angle than TN or STN LCD.

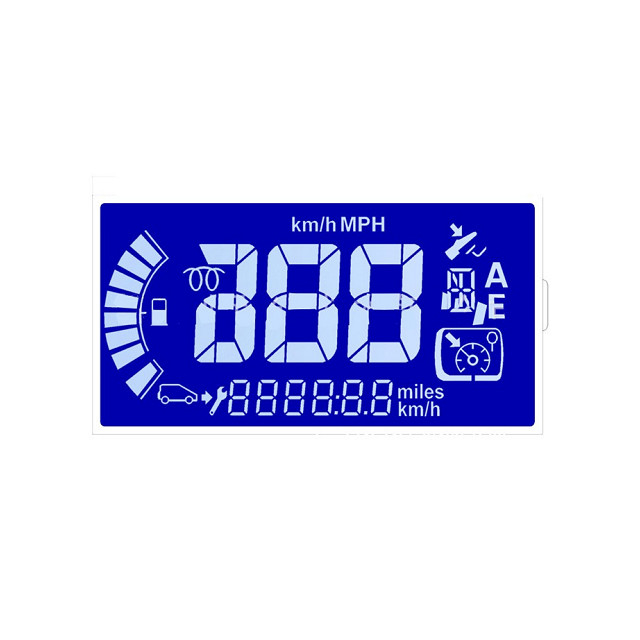

TN 6 O'Clock Monochrome Transflective Custom Lcd Display For Instrument 1

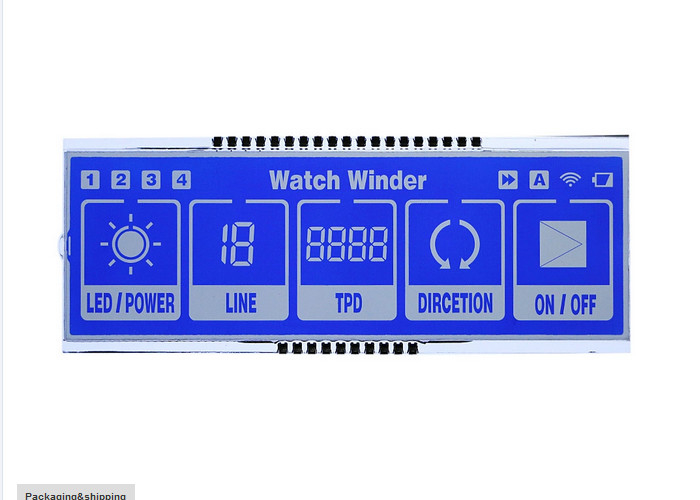

TN 6 O'Clock Monochrome Transflective Custom Lcd Display For Instrument 2



1.Q: Are you manufactory or trade company?
We are factory located in Dongguan and ZheJiang .
2.Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.
5.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
6.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name and address with post code,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
7.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.


Standard payment terms: pay 30% deposit in advance, 70% balance before shipment.

Online trade assurance order, all is up to you.
