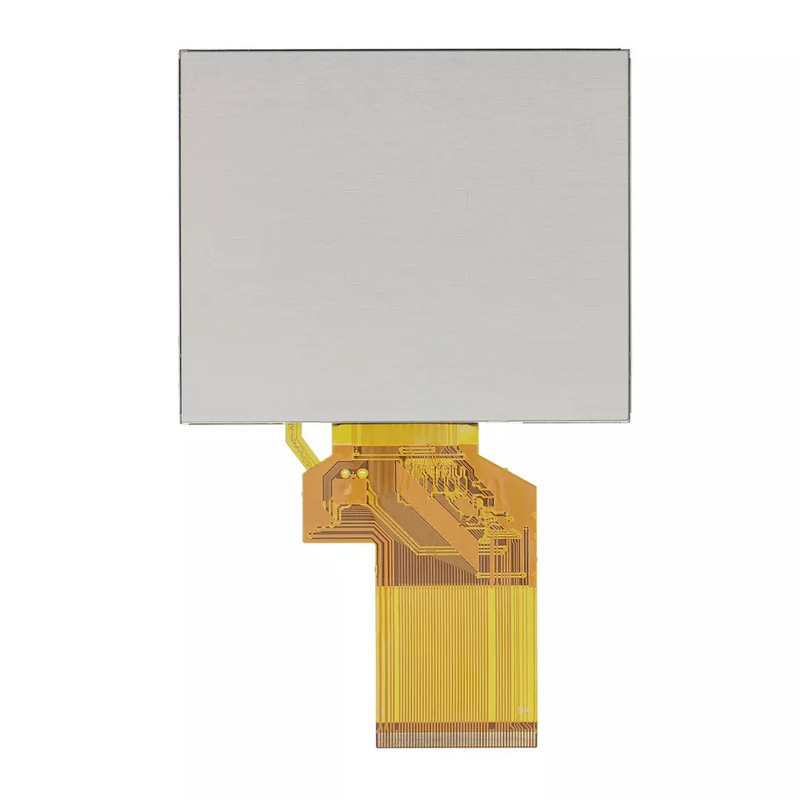

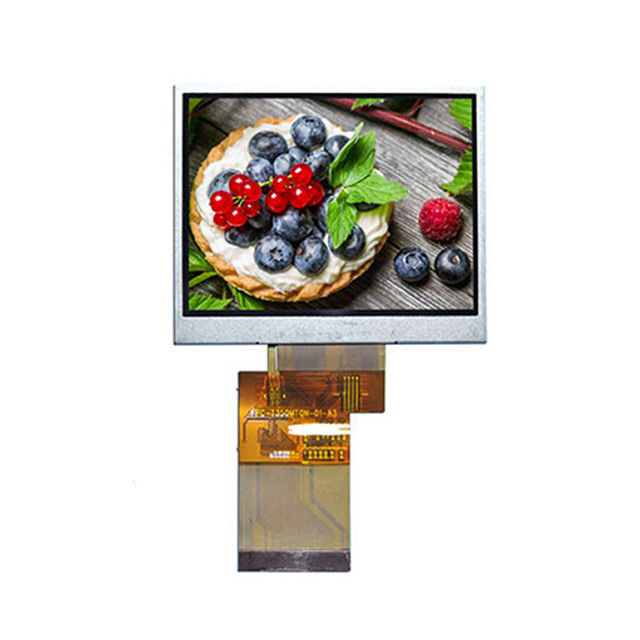

Capacitive Touchscreen Lcd Panel 640x480 , 3.5" Touchscreen Lcd Display
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FSJ3570-30P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble Bag + Blister + Foam Box + Carton |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Resolution: | 640 * 480 | Size: | 3.5 Inch |
|---|---|---|---|
| Viewing Direction: | All O'clock | TFT Mode: | TFT, Transmissive |
| Outline Size: | 70.88*63.84mm | Brightness: | 300Cd / M2 |
| High Light: | 640x480 Touchscreen Lcd Display,Capacitive Touchscreen Lcd Panel,300Cd/M2 IPS Lcd Display Module |
||
Product Description
3.5" Touchscreen Lcd Display Capacitive Touchscreen Lcd Panel 640x480 IPS Lcd Display Module
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 640 x RGB x 480 | Dots |
| Module Size ( W×H×T ) | 70.88*63.84 | mm. |
| Dot Pitch ( W×H ) | 0.1462*0.1462 | mm. |
| Interface | COF | – |
| Viewing Direction | All | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| IC Drive | ST7703 or 68577B | – |
| LCD Mode | TN/Normal White | – |
| Backlight Type | 10White LED 15V40mA | PCS |
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
We promise the long term continuity supply for this product no less than 20 years since 2001.
C. Structure Diagram:
Product List
Main Products: including 1.44",1.5",1.54",1.77", 2.0",2.4", 2.7", 2.8", 3.0",3.5", 4.3", 5.0", 7.0", 8.0", 9.7",10.1", 13.3" TFT LCD Modules, Resistive Touch panel and Capacitive Touch panel products.
| No | Size Inch | Dot Format | Outline Size (mm) | Contrast(Cr) | Backlight | Brightness | Interface | Touch Panel |
| 1 | 1.44 | 128xRGBx128 | 32.36x38.0x2.6 | 500 | 1LED | 240 | SPI | - |
| 2 | 1.77 | 128xRGBx160 | 34.70x46.7x2.5 | 500 | 2LED | 320 | 8bits parallel | - |
| 3 | 2.0 | 176xRGBx220 | 37.68X51.30X2.23 | 500 | 3LED | 180 | 8bits parallel | - |
| 4 | 2.3 | 320xRGBx240 | 51.0X45.8X2.3 | 500 | 4LED | 280 | SPI | - |
| 5 | 2.36 | 480X234 | 55.2x44.75x2.9 | 250 | 2LED | 250 | 8bits RGB | - |
| 6 | 2.4 | 240xRGBx320 | 42.72x60.26x2.46 | 250 | 4LED | 200 | 8bits80 parallel | RTP/CTP |
| 7 | 2.7 | 240xRGBx320 | 62.60x45.70x2.45 | 400 | 4LED | 350 | 8bits RGB | RTP |
| 8 | 2.83 | 240xRGBx320 | 50X69.2X2.4 | 500 | 4LED | 250 | 8/16bits parallel | RTP |
| 9 | 3.5 | 320xRGBX480 | 54.66X82.9X2.1 | 500 | 4LED | 380 | 18bits RGB+SPI | RTP/CTP |
| 10 | 4.3 | 480xRGBX272 | 105.5X67.2X4.2 | 500 | 6LED | 450 | 24bits RGB | RTP/CTP |
| 11 | 5 | 800xRGBX480/1024x600 | 120.7x75.8x4.3 | 400 | 2x5LED | 480 | 24bits RGB | RTP/CTP |
| 12 | 5.7 | 640xRGBX480 | 127.0X98.4X7.0 | 250 | 2x6LED | 700 | 18bits RGB | RTP/CTP |
| 13 | 6.2 | 800xRGBX480 | 155.2X88.2X6.5 | 600 | 3x7LED | 250 | 24bits RGB | RTP/CTP |
| 14 | 7 | 800xRGBX480 1024xRGBx600 | 164.9X100X7.2 | 500 | 7x3LED | 350 | 24bits RGB | RTP/CTP |
| 15 | 8 | 800xRGBX480 1024xRGBx600 | 183.0x141.0x6.2 | 500 | 9x3LED | 500 | 24bits RGB | RTP/CTP |
| 16 | 10.1 | 800xRGBX480 1024xRGBx600 | 235.0x143.0x5.0 | 600 | 13x3LED | 450 | LVDS | RTP/CTP |
Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
| Item | Building & Capacity Information | Remark | ||
| 1 | Address & Conctactor | In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China |
Cotact: fssales04@fsdzlcd.com M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038 Skype+86 189 2546 1855 Tel: +86 769 22705392-815 Fax: +86 769 22705825 |
|
| 2 | Staff | Direct+ Indirect Labors | +120 | |
| 3 | Build 1 | Office , Factory, Warehouse | 4,100M² | Total 5,000M² |
| 4 | Build 2 | Dormitory | 913M² | |
| 5 | Product Capacity | * LCM Drawing:2-7 days * LCM Sample:3-6 weeks * Lead Time for Mass *Production:4 - 8 weeks * LCM Cap: 30K/D * BL Cap:30K/D * CTP Cap:3K/D |
||
| 6 | Production Line | * Automatic Production Lines * Semi-Automatic Production Lines * Semi-Automatic backlight assembly lines * Capacitive touch panel assembly line * TFT&CTP optical bonding |
||
RFQ
1.Q: Are you manufactory or trade company?
A: We are professional manufactory, which specializes in monochrome LCD, LED backlights, LCM modules Since 2001 in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2. Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3. Q: How long can I expect to get the sample?
A: Stock Samples L/T: 1~2 days; Customized Samples: Contour drawing: 2-3 days Sample time: 10-15 business days
4. Q: Will you offer free sample?
A: Yes, we usually provide 3-5pcs free samples, you just need to pay freight cost for stock samples. For custom samples, you just need to pay the tooling charge.
5. Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
6. Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1) Product information-Quantity,part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
7. Q: How long of mass production ?
A: 25-30 business days. It depends on different order quantities.
