7 Segment PMVA FSTN Lcd Display Custom Monochrome HTN TN

7 Segment PMVA FSTN Lcd Display Custom Monochrome HTN TN

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FDN3500NO01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: FSTN Lcd Display Voltage: 5.0V
Connector: Metal Pin Driving Method: 1 / 4 Duty , 1 / 3 Bias
Polarizer Type: Transmissive
High Light:

Metal Pin FSTN Lcd Display

,

5.0V FSTN Lcd Display

,

HTN Custom LCD Display

Product Description

Custom PMVA Lcd Screen Monochrome Lcd Panel 7 Segment Display Screen

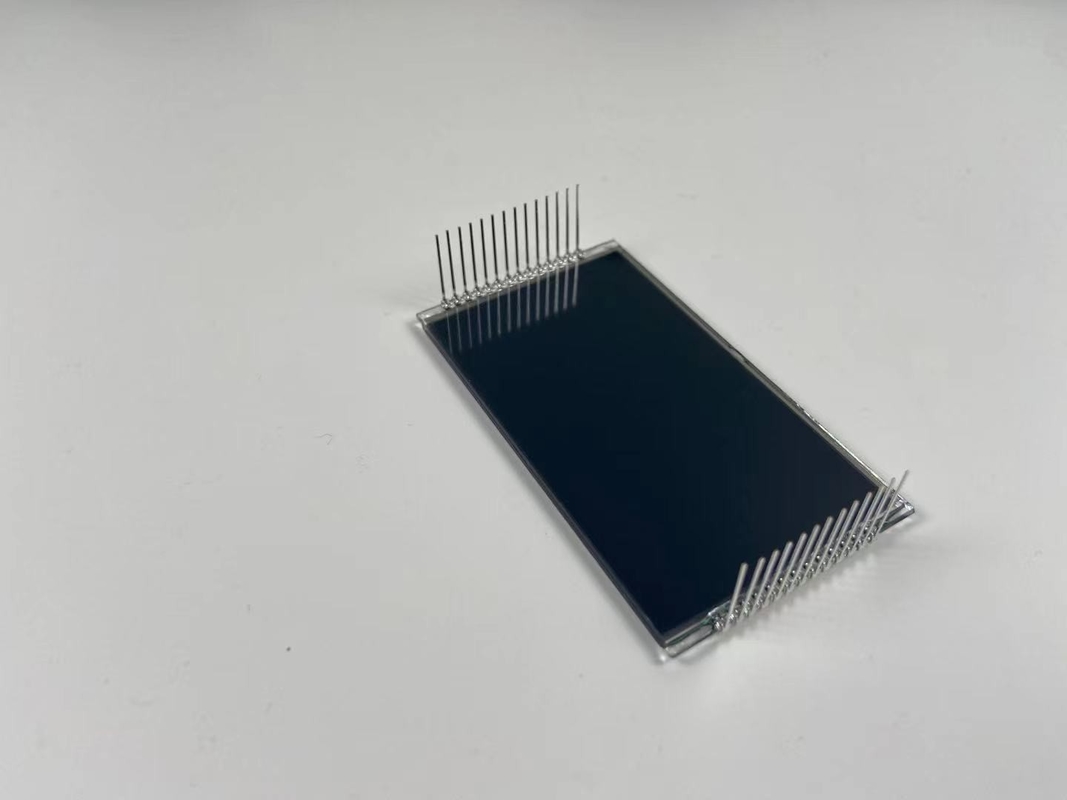

7 Segment PMVA FSTN Lcd Display Custom Monochrome HTN TN 0


We are specialized in lcd field since 2001 Years with experience and good reputation

· Small MOQ Support & Fast Response to Customers

· We’re China's most powerful producer of lcd screen from 1m to 20m

· Medium-sized enterprise in a rapid and stable development ensure satisfied quality and competitive price.

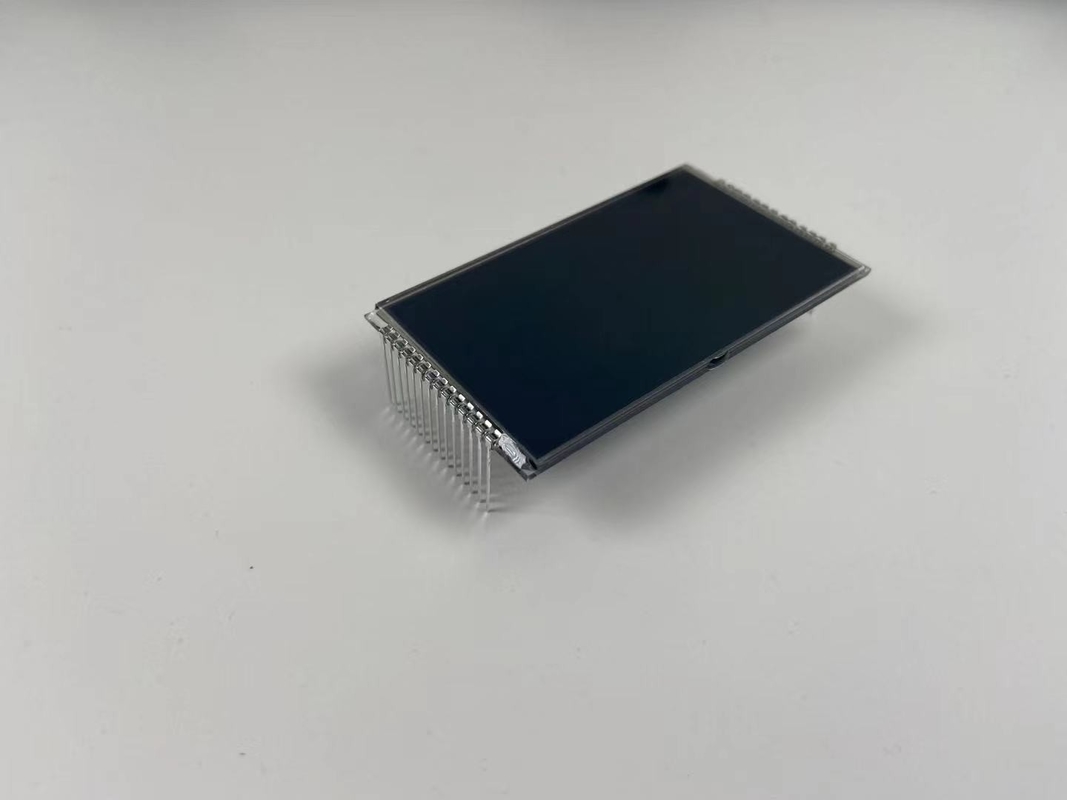

7 Segment PMVA FSTN Lcd Display Custom Monochrome HTN TN 1

Technical parameters:

ITEM CONTENT DESCRIPTION
1 Lcd Type DFSTN Lcd Display
2 Outline Size Custom
3 Viewing Direction 6 O ' clock
4 Voltage 5.0V
5 Display Mode Negative
6 Polarizer Mode Transmissive
7 Operation temp - 20°C to + 70°C
8 Storage temp - 30°C to + 80°C
9 LED Connect Metal Pin



Sample: 12~15daysLead time :

>=5000 PCS: 3.5 weeks

>=10000 PCS: 4 weeks

>=100000 PCS : 4 weeks



1. LCD Screen Material: Glass is main material;

2. LCD Display Structure: Polarizer,electrode,Polymer,ITO,Reflector;

3. Display Type: FSTN, STN, VA, HTN, TN;

4. LCD Display Mode: Positive display,Negative display

5. Viewing Angle: 3 o’clock, 6 o’clock, 9 o’clock, 12 o’clock;

6. The ITO thickness normal value: 0.4mm, 0.55mm, 0.7mm, 1.1mm;

7. Connector Type:Metal stitch, electroconductive rubber, heat-seal connector;

8. Transmission of light Type: reflecting type, transmission type, half transmission;

9. Backlight: LED backlight, EL backlight, CCFL backlight;

10. Operation Temperature: -40~+90℃ Over Wide Temperature



Application:

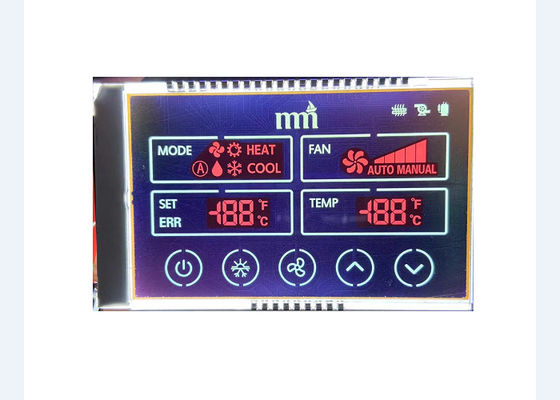

7 Segment PMVA FSTN Lcd Display Custom Monochrome HTN TN 2


Duty cycle
This parameter is also known as Duty number or COM number. Because STN/TN LCD is usually driven by time-division dynamic scanning mode, in this mode, the ratio of the effective turn-on time of each COM to the whole scan cycle, i.e. Duty, is fixed, equal to 1/COM number. Bias: Bias
The driving waveform of SEG/COM of LCD is analog signal, and the ratio of analog voltage to the maximum output voltage of LCD is called bias. Generally speaking, Bias is expressed by the ratio of the lowest output voltage to the highest output voltage. Generally speaking, there is a certain relationship between Bias and Duty. The more the number of Duty, the shorter the scanning time of each COM. To achieve the same display brightness and contrast, the voltage of VON will be increased, and the difference between the selection level and the non-selection level needs to be increased, that is, Bias needs to be increased. There is an empirical formula between Duty and Bias, that is, to achieve the same display brightness and contrast.



Advantages for choose Fangsheng's lcd panel

· Enviromental protection

· High quality material, premium craftsmanship

· Fast delivery and safe package

· Advanced and stable production line ensure perfect quality products

· Mature and professional R&D and after-service

· Professional and strictly quality control department

· Reliablity test and full examination to ensure the high quality of the display

· Industrial standard, simple and stable design.
