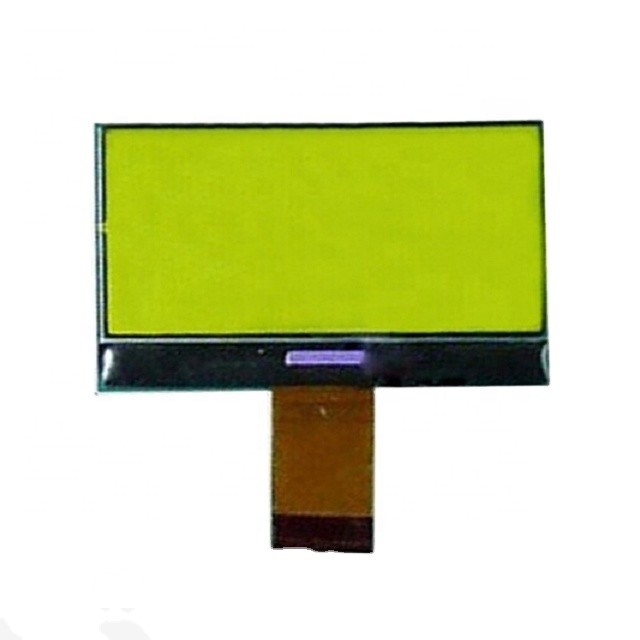

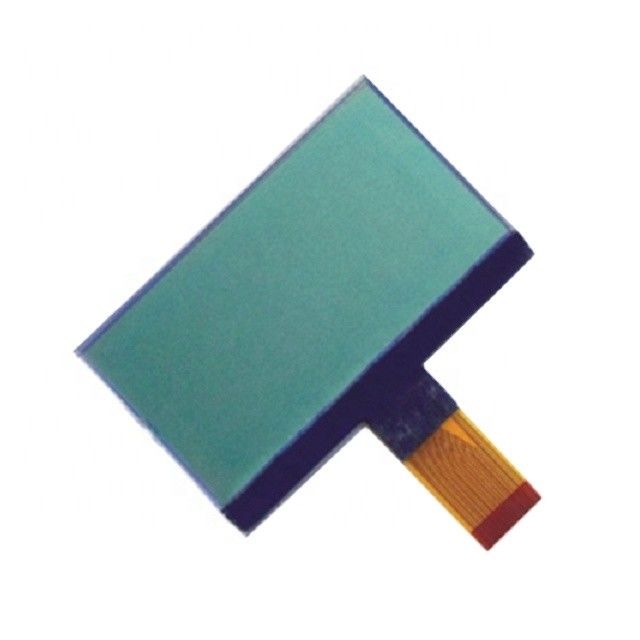

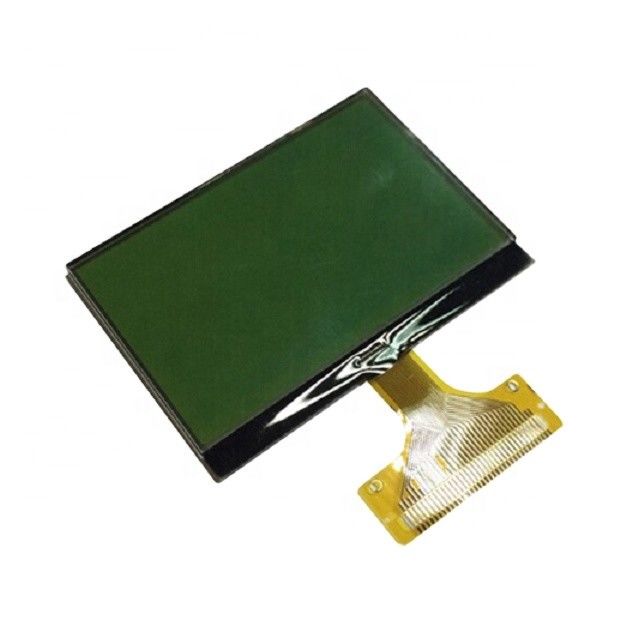

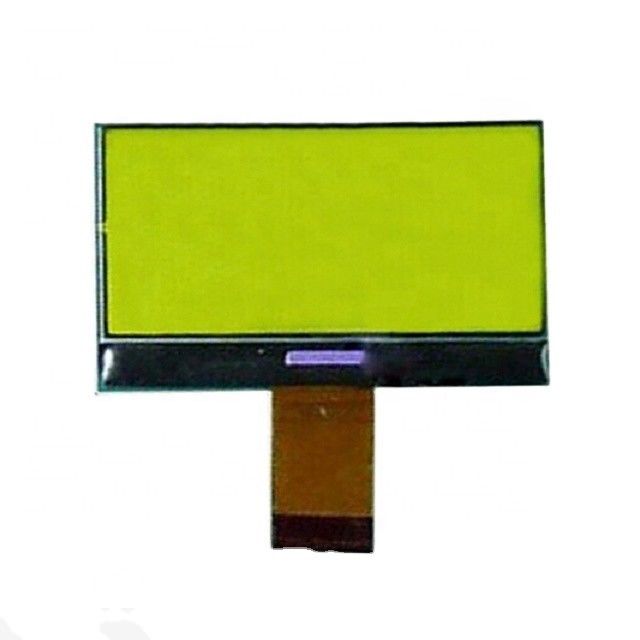

128x64 Dot Matrix COG LCD Module Customized Chip On Glass Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | FANGSHENG |
Payment & Shipping Terms:
| Price: | $3.20/pieces 1-19999 pieces |
|---|---|
| Packaging Details: | 100pcs /BOX |
| Supply Ability: | 1000000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | COG | Display Size: | Customized |
|---|---|---|---|
| Supplier Type: | OEM And ODM | LCD Type: | FSTN Or STN |
| LCD Color: | Gray, Blue Or Yellow Green | Viewing Angle: | 6 O'clock |
| Display Mode: | Positive | Polarizer Mode: | Transmissive |
| Driving Method: | 1/64 DUTY,1/9 BIAS | Driving Voltage: | DC 5.0V |
| High Light: | ODM Graphic LCD Display,128x64 Dot Matrix COG LCD Module,Chip On Glass COG LCD Module |
||
Product Description
Graphic Lcd Display 128x64 Dot Matrix COG Lcd Module Customized Chip On Glass LCD Display
specification
|
Item
|
Contents
|
Description
|
Unit
|
|
1
|
Lcd Dimension
|
Customized or 86*54*2.8T
|
MM
|
|
2
|
Operation Voltage
|
3.3V
|
|
|
3
|
Drive Controller
|
ST7567
|
|
|
4
|
Viewing angle
|
12
|
O'clock
|
|
5
|
Operating Temperature
|
-20~70C
|
|
|
6
|
Storage Temperature
|
-30~80C
|
|
|
7
|
Lcd Drive Method
|
1/64 Duty, 1/9 Bias
|
|
|
8
|
Connector type
|
COG+FPC
|
|
What is Chip-On-Glass (COG)?
Chip-On-Glass is the mounting of the LCD IC directly onto the ledge of the LCD glass itself.
The IC is bonded with an anisotropic conductive film (ACF), which facilitates the mechanical
adhesion, as well as the conduction from the IC to the glass.
The IC is bonded with an anisotropic conductive film (ACF), which facilitates the mechanical
adhesion, as well as the conduction from the IC to the glass.
1. COG Character LCD Formats of 8×1, 12×1, 14×1, 16×2, 20×2 dot matrix character.
2. COG Graphic LCD Formats of 64×64, 128×32, 128×64, 128×65, 128×128, 160×100, 192×140 dot matrix character.
3. LCD panel options of TN, STN, FSTN and FFSTN.
4. The polarizer can be positive or negative mode.
5. LED backlight color, yellow-green, red, blue, white, RGB LEDs and no backlight option.
2. COG Graphic LCD Formats of 64×64, 128×32, 128×64, 128×65, 128×128, 160×100, 192×140 dot matrix character.
3. LCD panel options of TN, STN, FSTN and FFSTN.
4. The polarizer can be positive or negative mode.
5. LED backlight color, yellow-green, red, blue, white, RGB LEDs and no backlight option.
