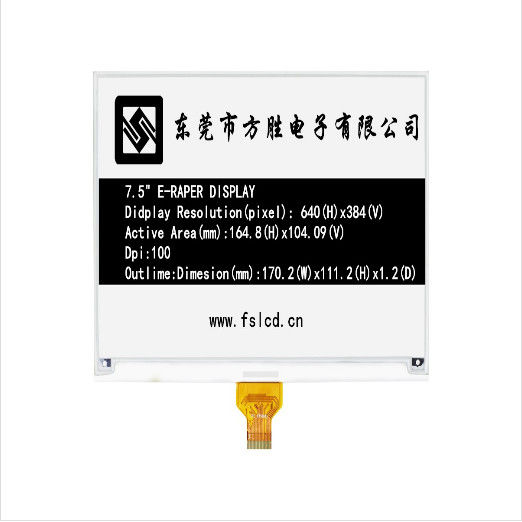

7.5 Inch 640x384 Dots E Paper Screen Spi E Ink for Shelf Label

7.5 Inch 640x384 Dots E Paper Screen Spi E Ink for Shelf Label

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FTHINK-E0755A27

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Resolution: 680 ( RGB ) * 384 Size: 7.5 Inch
Viewing Direction: All OLED Mode: E-Ink Display
Drive IC: SSD1680 Pin No: 24 Pins
High Light:

640x384 Dots E Paper Screen


SPI E Paper Screen


RGB E Ink Display

Product Description


E-Ink Display 7.5 Inch E-Paper Screen 296*152 Dots Spi EDP Display for Price Tag Shelf Label Display


OLED is an Organic Light-Emitting Diode. OLED Display is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight.

A. Specifications:

Display outline size
170 ( H ) * 111.2 ( W ) * 1.2mm ( D )
VA size
164.8 * ( H ) * 104.09 ( W ) mm
640 RGB ( H ) x 384 ( V )
Pixel Configuration
Pixel Pitch
Pin no
24 Pins
Black White, Red
Drive IC




♦.High Contrast. very clear display even under strong sunlight.

♦.Wide viewing angle

♦.Low-power e-paper applications

♦.Environment Green. it can be taken as a replacement of normal paper.

♦.Ultra thin. the min thickness can reach 0.1mm, flexible and easy to bend.





Smart cards

Electronic labels

Status displays


B. How e-paper works​ :

E-paper (also called ePaper) is an electronic display technology that mimics the appearance of paper. Using the same inks as the traditional printing industry, e-paper displays (EPDs) have tiny capsules filled with charged ink particles. When the proper charge is applied, an EPD creates highly detailed images with the contrast ratio and readability of printed material.


7.5 Inch 640x384 Dots E Paper Screen Spi E Ink for Shelf Label 0

Ultra-low power displays open new options for IoT

As a bistable display technology, e-paper is an extremely low power option. Once an EPD renders text and images, no power is needed to maintain the display. In fact, e-paper can use harvested energy to make updates, enabling you to design RFID or NFC IoT devices with battery-less EPDs

7.5 Inch 640x384 Dots E Paper Screen Spi E Ink for Shelf Label 1


C. Structure Diagram:

The screen is flexible, and the oled screen can also be made of a flexible array material, allowing it to be closer to a fully rounded phone. Because of this, the current smartphone frame to do more and more narrow. The screen also has the advantage of power saving and screen display features, these two LCD screen can not do. The screen not only Narrows the bezel, but also reduces the phone's thickness because it is so thin. It's also because of its thinness that part of the fingerprint unlock problem has been solved.

 7.5 Inch 640x384 Dots E Paper Screen Spi E Ink for Shelf Label 2





1.What is your delivery method?


2. What is the lead time of the products?

Samples in stock will be sent within 3 days after payment.

25~35 working days for mass production

3. Payment methods?

T/T, Paypal and Western union etc.

For samples: payment in advance.

For mass production: 50% deposit and 50% balance before shipment.
