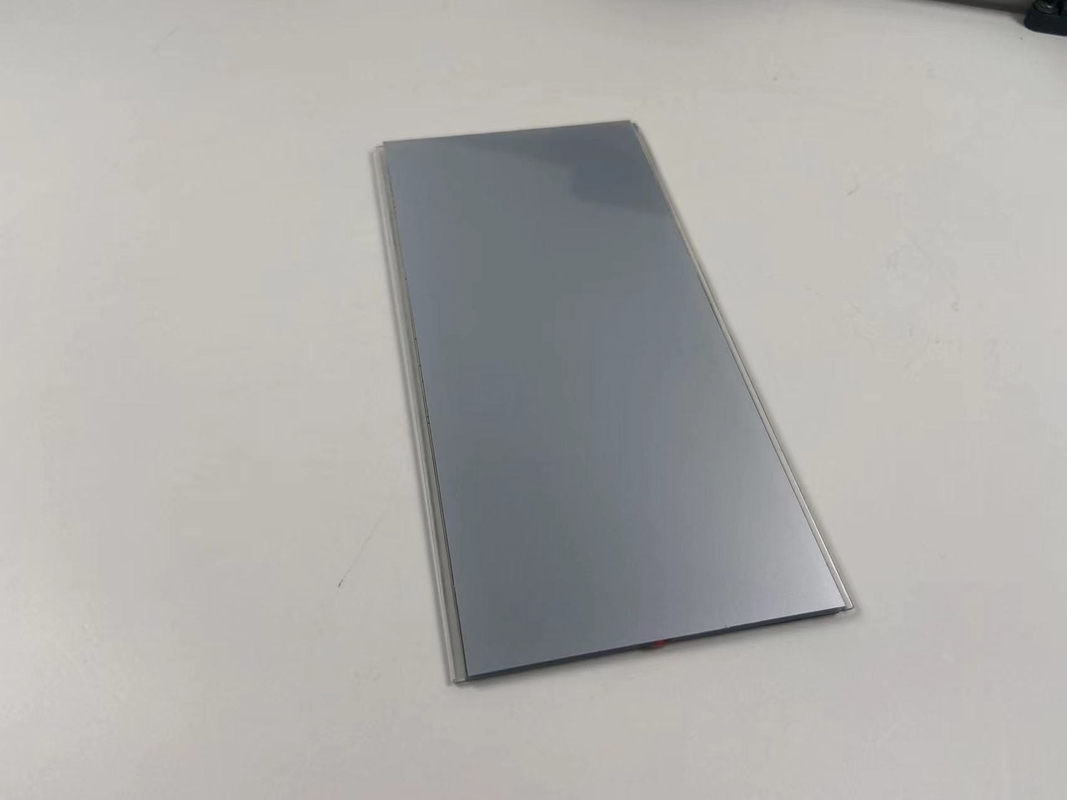

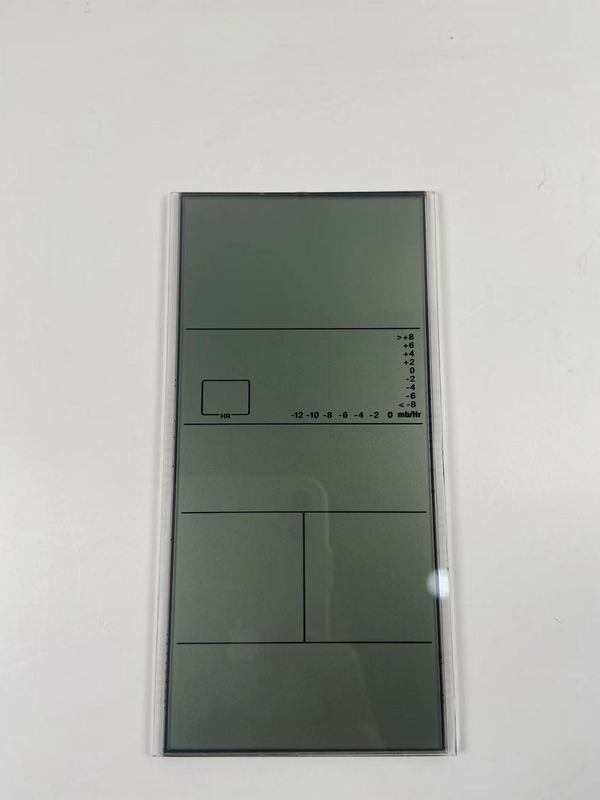

Low Power Consumption TN LCD Display Big Size Segment Module for Smart Thermostat
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FTP3007GS01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 3 ~ 5 Working Days |
| Payment Terms: | T/T,Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Lcd Type: | TN Lcd Display | Voltage: | 6.0V |
|---|---|---|---|
| LED: | No | Display Mode: | Reflective |
| Certificate: | ISO; Rohs, REACH | Dimension: | As Customer Request |
| High Light: | TN LCD Display Reflective,Smart Thermostat TN LCD Display,Smart Thermostat TN LCD Module |
||
Product Description
Low Power Consumption Lcd Display Bigl Size Segment Lcd Module for Smart Thermostat
1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen
A. Basic Information:
|
ITEM
|
CONTENT
|
DESCRIPTION
|
|
1
|
Display Outline Size
|
133 ( H ) * 67 ( W ) * 1.1 mm ( T )
|
|
2
|
Viewing Size |
129 ( H ) * 63 (W) mm
|
|
3
|
Voltage
|
6.0V
|
|
4
|
Operation Temperature
|
-10～60℃
|
|
5
|
Drive Parameter
|
1/4 Duty 1/3 Bias |
|
6
|
Backlight
|
/
|
|
7
|
Color
|
/ |
|
8
|
Interface
|
Pin
|
TN, or Twisted Nematic panels, are the oldest variety of LCD panels, but they're still quite common even today. They're cheap to produce, and they have very low input lag, which makes them appealing for gamers. They also support refresh rates of up to 240Hz, another plus for fast-paced environments
LCD size (mm):
Customers should tell us viewing area size or total LCD size in millimeter(length,width). We will help you design a final and economic LCD size.LCD total thickness is 2.8mm or 2.0mm or 1.7mm. Usually,2.8mm is very common thickness.
LCD graphics(characters,icons)
Customers should send a simple LCD graphics(Formal CAD drawing or sketch) to us,then we will understand how many segment it is.Our engineer will make formal LCD drawing for your approval.LCD type:
1) TN, 2)HTN, 3)STN, 4)FSTN, 5)VALCD operating voltage:
LCD operating voltage is up to LCD drive chip.
Usually,LCD operating voltage range is 2.8~5.0V.
We recommend to use 3.0V or 3.3V or 5V operating voltage.
|
|
|
|
Rear polarizer type:
There are three types of polarizer: transmission polarizer;transflective polarizer and reflective polarizer.
If No LED backlight,please choose reflective polarizer.
If LED backlight is necessary,then you can choose transmission or transflective polarizer.
Transflective polarizer is better and expensive than transmission polarizer.But transflective LCD will have a uniform light result compared with transmission polarizer. What is more,when LED backlight is off, transflecitve LCD will also have a good display result.
For transmission polarizer,when it is negative LCD or LED backlight alway be on,then it is better use transmission polarizer.
