Customized Monochrome LCD Display TN HTN 7 Segment For Multimedia Player
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FHP3588TP01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 7-10 Working Days |
| Payment Terms: | T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Type: | HTN Lcd Display | Voltage: | 3.3V |
|---|---|---|---|
| Connector: | Metal Pin | Driving Method: | 1 / 4 Duty , 1 / 3 Bias |
| Polarizer Type: | Transmissive | Display Mode: | Positive |
| High Light: | TN Monochrome LCD Display,HTN Monochrome LCD Display,Multimedia Player HTN LCD Display |
||
Product Description

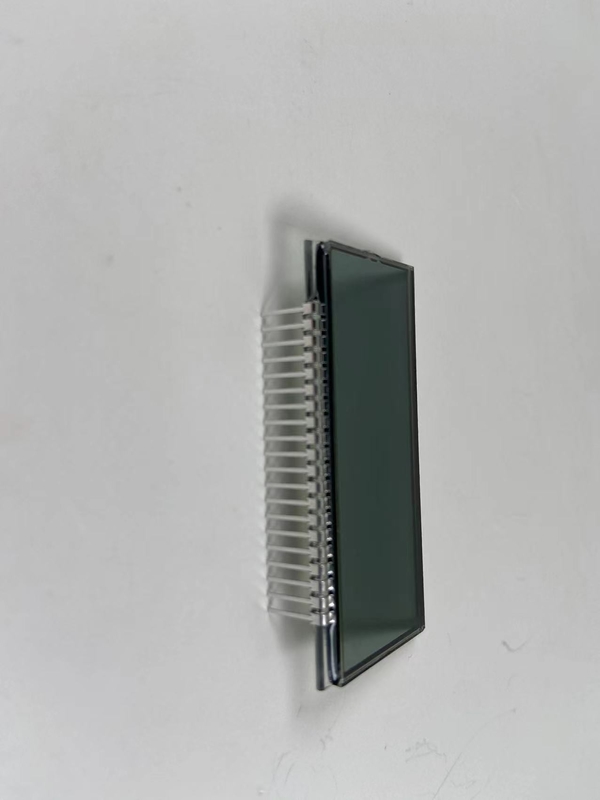

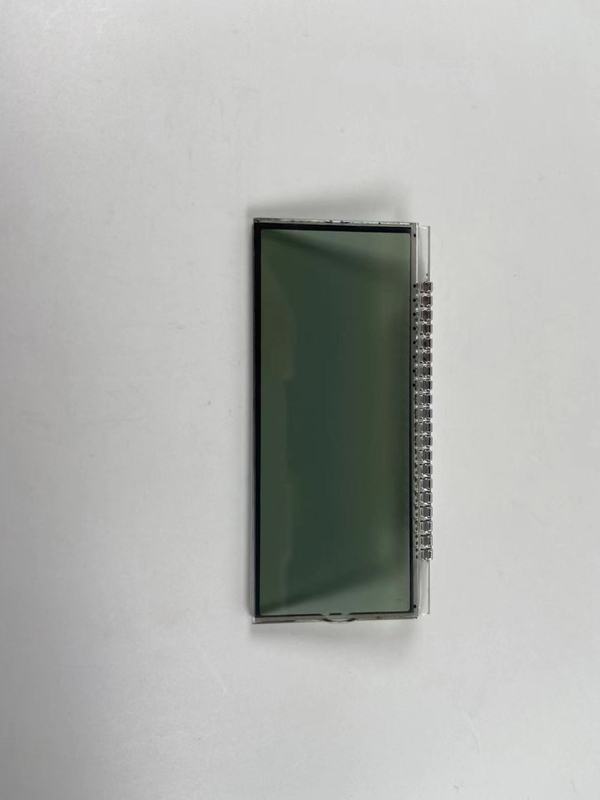

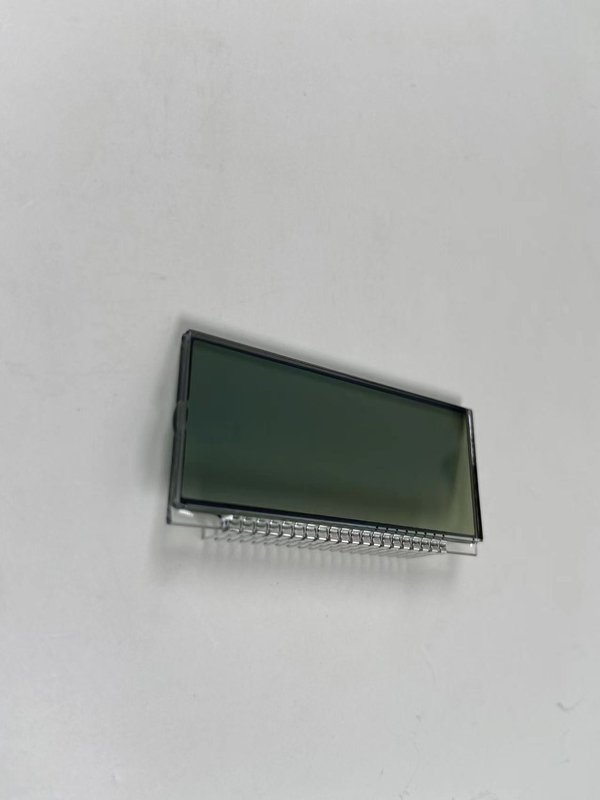

Customized Monochrome Lcd Display TN HTN 7 Segment lcd Display for Multimedia Player
Technical parameters:
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | TN Lcd Display |
| 2 | Outline Size | Custom, |
| 3 | Viewing Direction | 12 O ' clock |
| 4 | Voltage | 3.3V |
| 5 | Display Mode | Positive |
| 6 | Polarizer Mode | Transflective |
| 7 | Operation temp | - 10°C to + 60°C |
| 8 | Storage temp | - 20°C to + 70°C |
| 9 | LED Connect | Metal Pin or Zebra |
Drawing, Quality and Stability
1. Implementation of the International Quality System.
2 . Professional production control.
3 . Complete testing equipments .
4 . RoHS, REACH certificated
Connection mode of LCD:
How to connect LCD on your PCB?There are four type of connectors for your choice.
- Metal pin connector. It is very common connection way. Pins should insert into PCB holes and solder it. It is very strong and firm. LCD,LED backlight or PCB can be connected together as a LCD module.
-
Lead time :
Sample: 12~15days
>=5000 PCS: 3.5 weeks
>=10000 PCS: 4 weeks
>=100000 PCS : 4 weeks
Application:
Lcd Display to be use on Air Conditioner and Remote Controller, Smart Thermostat, Humidity etc.
|
|
|
|
Duty cycle
This parameter is also known as Duty number or COM number. Because STN/TN LCD is usually driven by time-division dynamic scanning mode, in this mode, the ratio of the effective turn-on time of each COM to the whole scan cycle, i.e. Duty, is fixed, equal to 1/COM number. Bias: Bias
The driving waveform of SEG/COM of LCD is analog signal, and the ratio of analog voltage to the maximum output voltage of LCD is called bias. Generally speaking, Bias is expressed by the ratio of the lowest output voltage to the highest output voltage. Generally speaking, there is a certain relationship between Bias and Duty. The more the number of Duty, the shorter the scanning time of each COM. To achieve the same display brightness and contrast, the voltage of VON will be increased, and the difference between the selection level and the non-selection level needs to be increased, that is, Bias needs to be increased. There is an empirical formula between Duty and Bias, that is, to achieve the same display brightness and contrast.
