Reflective Metal Pin TN LCD Display 7 Segment Customized Size Module

Reflective Metal Pin TN LCD Display 7 Segment Customized Size Module

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FTP3418PT01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: TN Lcd Display Voltage: 2.8V
Connector: Metal Pin Or FPC Driving Method: 1 / 4 Duty , 1 / 3 Bias
Polarizer Type: Transmissive Storage Temp: - 20°C To + 70°C
High Light:

7 Segment TN LCD Display


Reflective TN LCD Display


TN Custom LCD Display

Product Description

Reflective TN 7 Segment LCD Module Customized Size Lcd Display Module
Technical parameters:

1 Lcd Type TN Lcd Display
2 Outline Size Custom,
3 Viewing Direction 12 O ' clock
4 Voltage 3.3V
5 Display Mode Positive
6 Polarizer Mode Reflective
7 Operation temp - 10°C to + 60°C
8 Storage temp - 20°C to + 70°C
9 LED Connect Metal Pin or Zebra


LCDs are used in a wide range of applications, including LCD televisions, computer monitors, instrument panels, aircraft cockpit displays, and indoor and outdoor signage. Small LCD screens are common in LCD projectors and portable consumer devices such as digital cameras, watches, digital clocks, calculators, and mobile telephones, including smartphones. LCD screens are also used on consumer electronics products such as DVD players, video game devices and clocks. LCD screens have replaced heavy, bulky cathode-ray tube (CRT) displays in nearly all applications. LCD screens are available in a wider range of screen sizes than CRT and plasma displays, with LCD screens available in sizes ranging from tiny digital watches to very large television receivers. LCDs are slowly being replaced by OLEDs, which can be easily made into different shapes, and have a lower response time, wider color gamut, virtually infinite color contrast and viewing angles, lower weight for a given display size and a slimmer profile (because OLEDs use a single glass or plastic panel whereas LCDs use two glass panels; the thickness of the panels increases with size but the increase is more noticeable on LCDs) and potentially lower power consumption (as the display is only "on" where needed and there is no backlight). OLEDs, however, are more expensive for a given display size due to the very expensive electroluminescent materials or phosphors that they use. Also due to the use of phosphors, OLEDs suffer from screen burn-in and there is currently no way to recycle OLED displays, whereas LCD panels can be recycled, although the technology required to recycle LCDs is not yet widespread. Attempts to maintain the competitiveness of LCDs are quantum dot displays, marketed as SUHD, QLED or Triluminos, which are displays with blue LED backlighting and a Quantum-dot enhancement film (QDEF) that converts part of the blue light into red and green, offering similar performance to an OLED display at a lower price, but the quantum dot layer that gives these displays their characteristics can not yet be recycled.


Lcd Display to be use on Air Conditioner and Remote Controller, Smart Thermostat, Humidity etc.

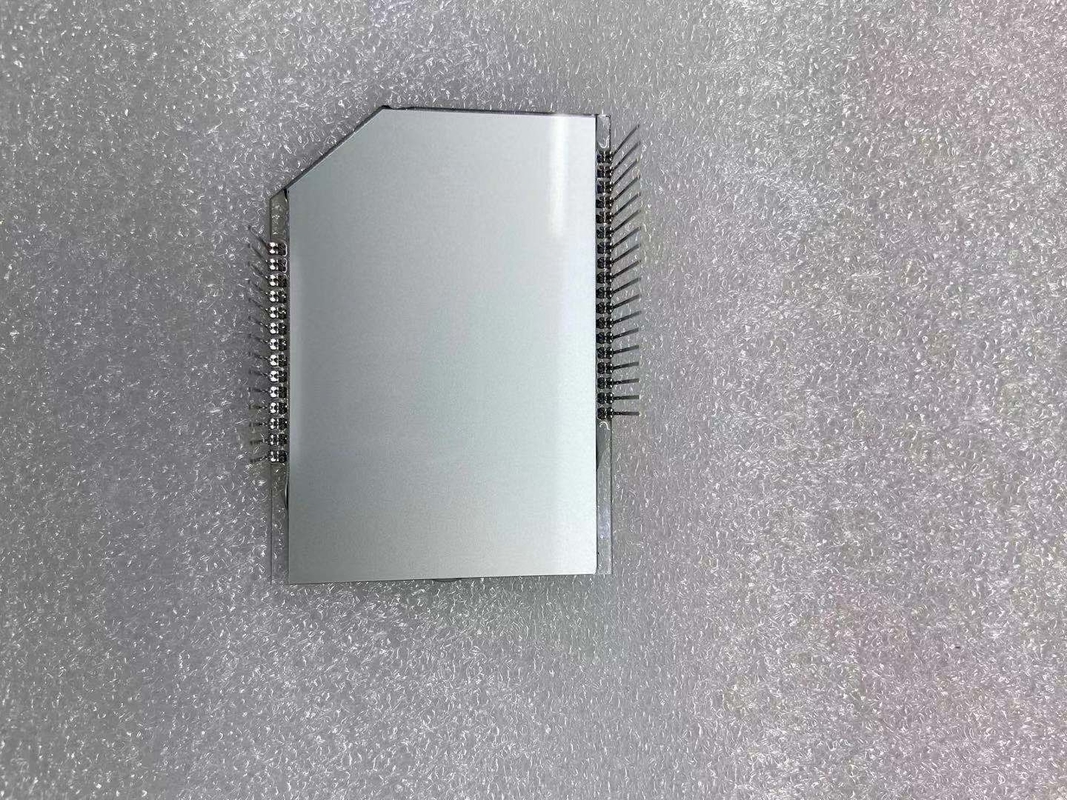

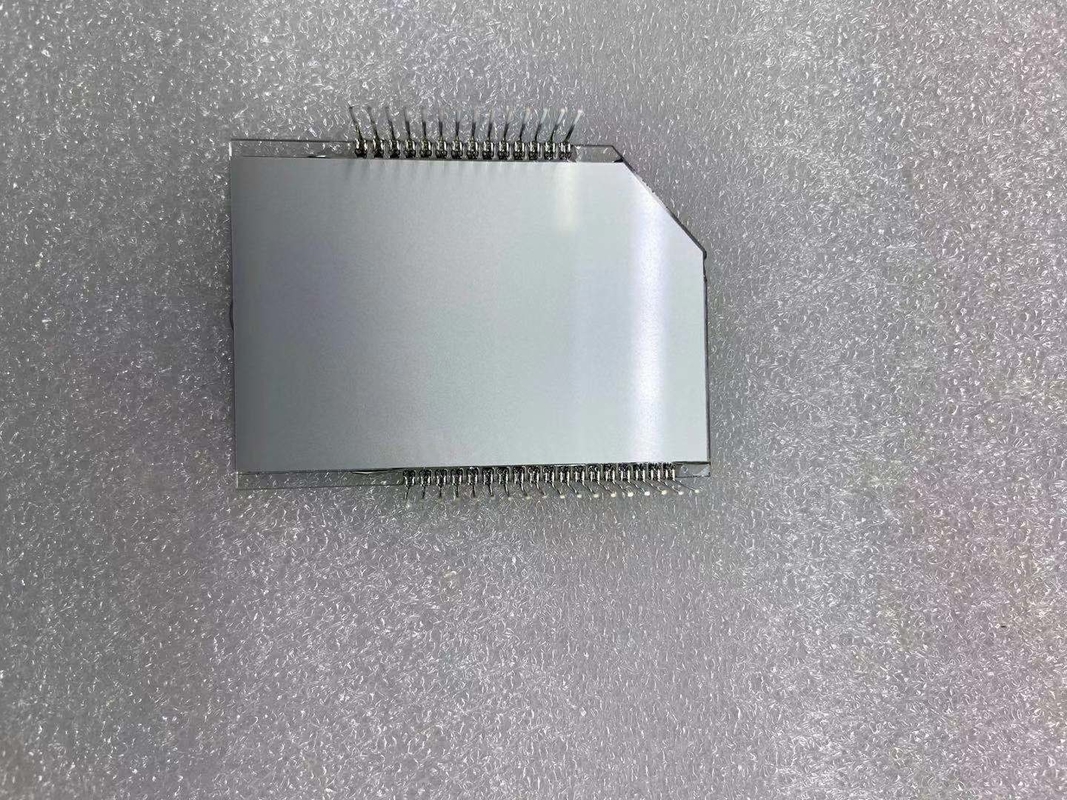

Reflective Metal Pin TN LCD Display 7 Segment Customized Size Module 0 Reflective Metal Pin TN LCD Display 7 Segment Customized Size Module 1
Reflective Metal Pin TN LCD Display 7 Segment Customized Size Module 2 Reflective Metal Pin TN LCD Display 7 Segment Customized Size Module 3

Duty cycle
This parameter is also known as Duty number or COM number. Because STN/TN LCD is usually driven by time-division dynamic scanning mode, in this mode, the ratio of the effective turn-on time of each COM to the whole scan cycle, i.e. Duty, is fixed, equal to 1/COM number. Bias: Bias
The driving waveform of SEG/COM of LCD is analog signal, and the ratio of analog voltage to the maximum output voltage of LCD is called bias. Generally speaking, Bias is expressed by the ratio of the lowest output voltage to the highest output voltage. Generally speaking, there is a certain relationship between Bias and Duty. The more the number of Duty, the shorter the scanning time of each COM. To achieve the same display brightness and contrast, the voltage of VON will be increased, and the difference between the selection level and the non-selection level needs to be increased, that is, Bias needs to be increased. There is an empirical formula between Duty and Bias, that is, to achieve the same display brightness and contrast.


Advantages for choose Fangsheng's lcd panel

· Enviromental protection

· High quality material, premium craftsmanship

· Fast delivery and safe package

· Advanced and stable production line ensure perfect quality products

· Mature and professional R&D and after-service

· Professional and strictly quality control department

· Reliablity test and full examination to ensure the high quality of the display

· Industrial standard, simple and stable design

· We have specialized in this field since 2001 Years with rich experience and good reputation

· Small MOQ Support & Fast Response to Customers

· We’re China's most powerful producer of lcd screen from 1m to 20m

· Medium-sized enterprise in a rapid and stable development ensure satisfied quality and competitive price.


Lead time :

Sample: 12~15days

>=5000 PCS: 3.5 weeks

>=10000 PCS: 4 weeks

>=100000 PCS : 4 weeks
