Pin Connector Monochrome LCD Display Custom Size VA Black White Display

Pin Connector Monochrome LCD Display Custom Size VA Black White Display

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FVN1001RP01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: VA Lcd Display Voltage: 4.5V
Connector: Metal Pin Driving Method: 1 / 4 Duty , 1 / 3 Bias
Polarizer Type: Transmissive Operation Temp: - 20°C To + 70°C
High Light:

Metal Pin Monochrome LCD Displa

,

VA Monochrome LCD Displa

,

Pin Connector Custom LCD Display

Product Description

Monochrome Lcd Display Custom Size VA Lcd Black White Display with PIn Connector


We are specialized in lcd field since 2001 Years with experience and good reputation

· Small MOQ Support & Fast Response to Customers

· We’re China's most powerful producer of lcd screen from 1m to 20m

· Medium-sized enterprise in a rapid and stable development ensure satisfied quality and competitive price.

Item Building & Capacity Information                                                                           Remark
1 Address &                  Conctactor                  In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China

Cotact:fssales04@fsdzlcd.com

Or Fancy@fsdzlcd.com

M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038

Skype+86 189 2546 1855

Tel: +86 769 22705392-815

Fax: +86 769 22705825


2 Staff                            Direct+ Indirect Labors +120
3 Build 1                        Office , Factory,            Warehouse                    4,100M²                                       Total      5,000M²
4 Build 2                        Dormitory 913M²
5 Product Capacity        * LCM Drawing:2-7 days
* LCM Sample:3-6 weeks
* Lead Time for Mass *Production:4 - 8 weeks
* LCM Cap: 30K/D
* BL Cap:30K/D
* CTP Cap:3K/D

6 Production Line          * Automatic Production Lines
* Semi-Automatic Production Lines
* Semi-Automatic backlight assembly lines
* Capacitive touch panel assembly line
* TFT&CTP optical bonding


Lead time :

Sample: 12~15days

>=5000 PCS: 3.5 weeks

>=10000 PCS: 4 weeks

>=100000 PCS : 4 weeks


Technical parameters:

ITEM CONTENT DESCRIPTION
1 Lcd Type VA Lcd Display
2 Outline Size Customized
3 Viewing Direction 6 O ' clock
4 Voltage 4.5V
5 Display Mode Positive
6 Polarizer Mode Reflective
7 Operation temp - 20°C to + 70°C
8 Storage temp - 30°C to + 80°C
9 LED Connect Metal Pin



A liquid-crystal display (LCD) is a flat-panel display or other electronically modulated optical device that uses the light-modulating properties of liquid crystals combined with polarizers. Liquid crystals do not emit light directly,[1] instead using a backlight or reflector to produce images in color or monochrome.[2] LCDs are available to display arbitrary images (as in a general-purpose computer display) or fixed images with low information content, which can be displayed or hidden. For instance: preset words, digits, and seven-segment displays, as in a digital clock, are all good examples of devices with these displays. They use the same basic technology, except that arbitrary images are made from a matrix of small pixels, while other displays have larger elements. LCDs can either be normally on (positive) or off (negative), depending on the polarizer arrangement. For example, a character positive LCD with a backlight will have black lettering on a background that is the color of the backlight, and a character negative LCD will have a black background with the letters being of the same color as the backlight. Optical filters are added to white on blue LCDs to give them their characteristic appearance



1. LCD Screen Material: Glass is main material;

2. LCD Display Structure: Polarizer,electrode,Polymer,ITO,Reflector;

3. Display Type: FSTN, STN, VA, HTN, TN;

4. LCD Display Mode: Positive display,Negative display

5. Viewing Angle: 3 o’clock, 6 o’clock, 9 o’clock, 12 o’clock;

6. The ITO thickness normal value: 0.4mm, 0.55mm, 0.7mm, 1.1mm;

7. Connector Type:Metal stitch, electroconductive rubber, heat-seal connector;

8. Transmission of light Type: reflecting type, transmission type, half transmission;

9. Backlight: LED backlight, EL backlight, CCFL backlight;

10. Operation Temperature: -40℃~+90℃ Over Wide Temperature



Related Lcd:

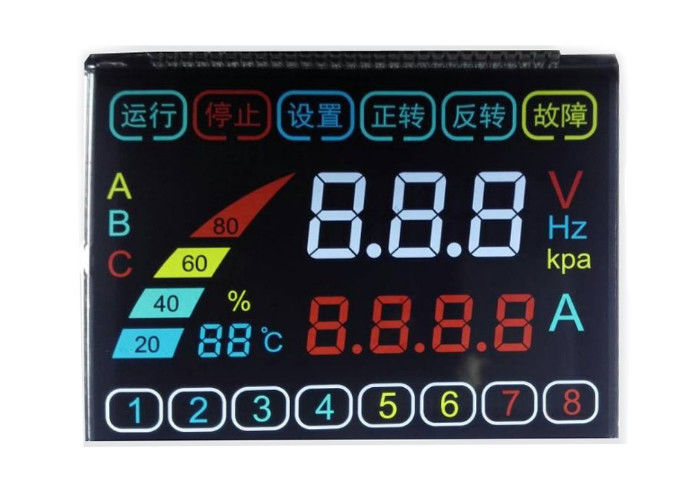

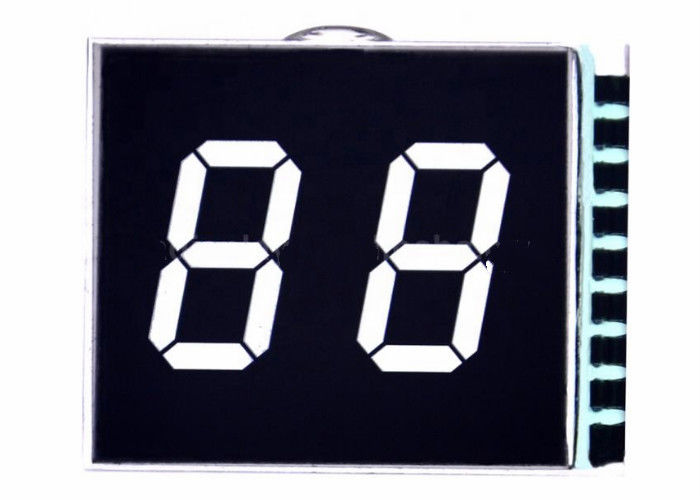

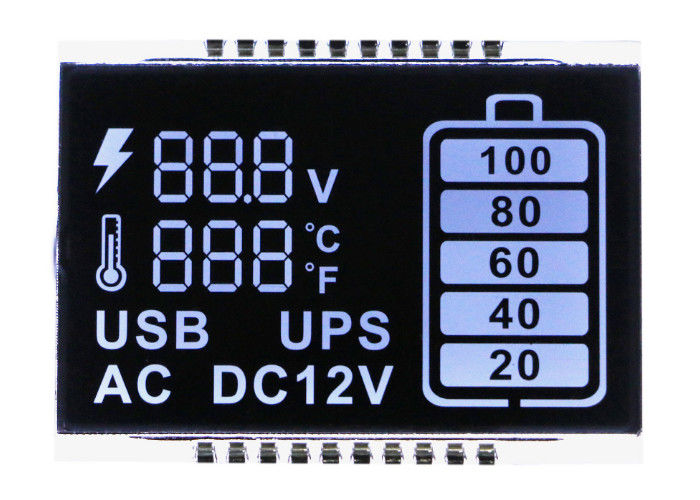

Pin Connector Monochrome LCD Display Custom Size VA Black White Display 0 Pin Connector Monochrome LCD Display Custom Size VA Black White Display 1
Pin Connector Monochrome LCD Display Custom Size VA Black White Display 2              Pin Connector Monochrome LCD Display Custom Size VA Black White Display 3


Duty cycle


This parameter is also known as Duty number or COM number. Because STN/TN LCD is usually driven by time-division dynamic scanning mode, in this mode, the ratio of the effective turn-on time of each COM to the whole scan cycle, i.e. Duty, is fixed, equal to 1/COM number. Bias: Bias
The driving waveform of SEG/COM of LCD is analog signal, and the ratio of analog voltage to the maximum output voltage of LCD is called bias. Generally speaking, Bias is expressed by the ratio of the lowest output voltage to the highest output voltage. Generally speaking, there is a certain relationship between Bias and Duty. The more the number of Duty, the shorter the scanning time of each COM. To achieve the same display brightness and contrast, the voltage of VON will be increased, and the difference between the selection level and the non-selection level needs to be increased, that is, Bias needs to be increased. There is an empirical formula between Duty and Bias, that is, to achieve the same display brightness and contrast.



Advantages for choose Fangsheng's lcd panel

· Enviromental protection

· High quality material, premium craftsmanship

· Fast delivery and safe package

· Advanced and stable production line ensure perfect quality products

· Mature and professional R&D and after-service

· Professional and strictly quality control department

· Reliablity test and full examination to ensure the high quality of the display

· Industrial standard, simple and stable design.
