Customize TN Lcd Module Reflective Lcd 7 Segment Display Screen Positive Lcd Display Module Glass Panel

Customize TN Lcd Module Reflective Lcd 7 Segment Display Screen Positive Lcd Display Module Glass Panel

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FT1001RP01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: TN Lcd Display Voltage: 2.8V
Connector: Metal Pin Driving Method: 1 / 4 Duty , 1 / 3 Bias
Polarizer Type: Transmissive, Reflective
High Light:

7 Segment LCD Glass Panel


Reflective LCD Glass Panel


Metal Pin Connector TN LCD Display

Product Description

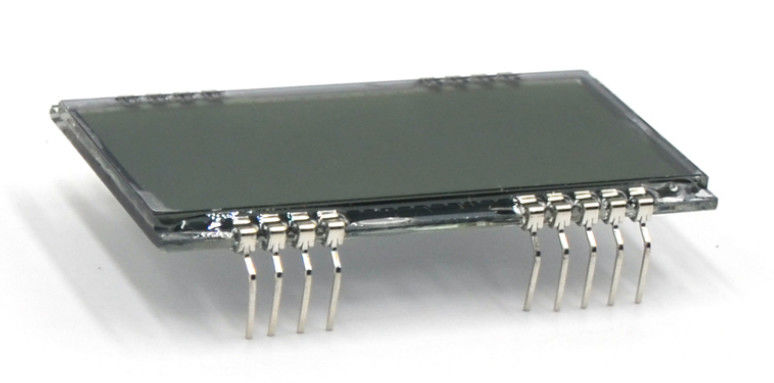

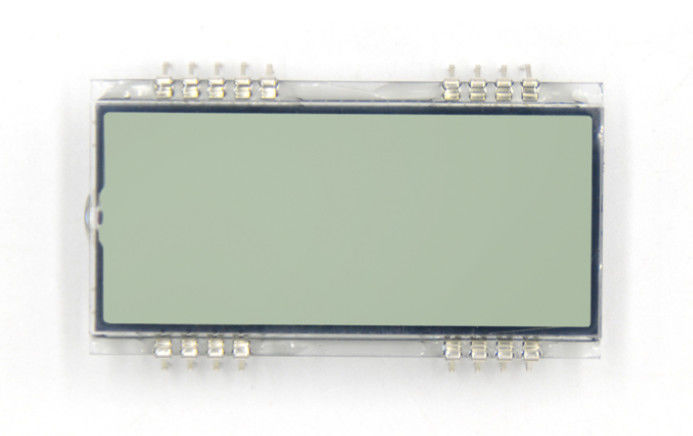

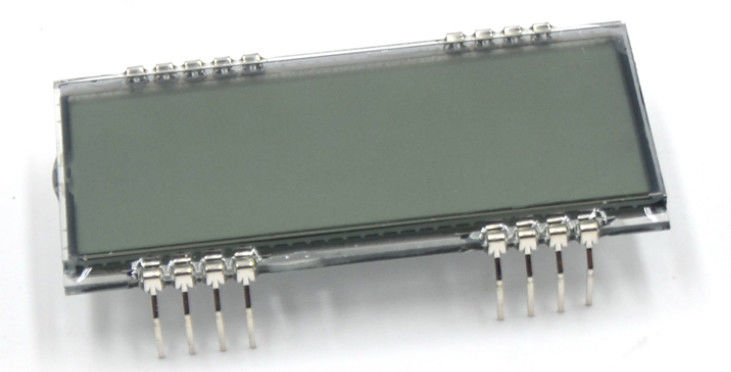

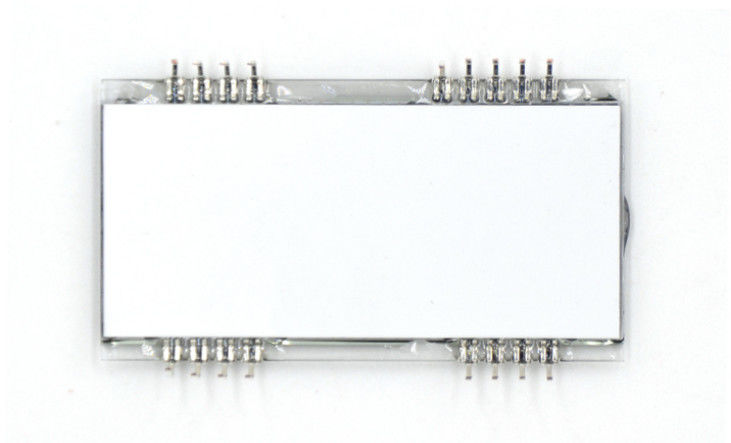

Customize TN Lcd Module Reflective Lcd 7 Segment Display Screen Positive Lcd Display Module Glass Panel

We are specialized in lcd field since 2001 Years with experience and good reputation

· Small MOQ Support & Fast Response to Customers

· We’re China's most powerful producer of lcd screen from 1m to 20m

· Medium-sized enterprise in a rapid and stable development ensure satisfied quality and competitive price.

Item Building & Capacity Information Remark
1 Address & Conctactor In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China


M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038

Skype+86 189 2546 1855

Tel: +86 769 22705392-815

Fax: +86 769 22705825

2 Staff Direct+ Indirect Labors +120
3 Build 1 Office , Factory, Warehouse 4,100M² Total 5,000M²
4 Build 2 Dormitory 913M²
5 Product Capacity * LCM Drawing:2-7 days
* LCM Sample:3-6 weeks
* Lead Time for Mass *Production:4 - 8 weeks
* LCM Cap: 30K/D
* BL Cap:30K/D
* CTP Cap:3K/D
6 Production Line * Automatic Production Lines
* Semi-Automatic Production Lines
* Semi-Automatic backlight assembly lines
* Capacitive touch panel assembly line
* TFT&CTP optical bonding

Lead time :

Sample: 12~15days

>=5000 PCS: 3.5 weeks

>=10000 PCS: 4 weeks

>=100000 PCS : 4 weeks

Technical parameters:

1 Lcd Type TN Lcd Display
2 Outline Size Custom, 27mm ( L ) * 50mm ( W ) * 1.1mm T
3 Viewing Direction 6 O ' clock
4 Voltage 2.8V
5 Display Mode Positive
6 Polarizer Mode Reflective
7 Operation temp - 10°C to + 60°C
8 Storage temp - 20°C to + 70°C
9 LED Connect Metal Pin


TN: Twisted Nematic; Distortion of liquid crystal molecules deflection 90° TN products are a class of LCM products, the main advantages are low power consumption and product display data rich.  TN, STN, FSTN LCD and LCD modules, COB, COG , TAB, CSTN, TFT LCD module products for MP3, mobile phones, industrial display modules, handheld video game machines, calculators, calendars, electronic watches, electronic pets, car clocks, telephones, air conditioners, Multimeter, etc.


1. LCD Screen Material: Glass is main material;

2. LCD Display Structure: Polarizer,electrode,Polymer,ITO,Reflector;

3. Display Type: FSTN, STN, VA, HTN, TN;

4. LCD Display Mode: Positive display,Negative display

5. Viewing Angle: 3 o’clock, 6 o’clock, 9 o’clock, 12 o’clock;

6. The ITO thickness normal value: 0.4mm, 0.55mm, 0.7mm, 1.1mm;

7. Connector Type:Metal stitch, electroconductive rubber, heat-seal connector;

8. Transmission of light Type: reflecting type, transmission type, half transmission;

9. Backlight: LED backlight, EL backlight, CCFL backlight;

10. Operation Temperature: -40~+90℃ Over Wide Temperature



Customize TN Lcd Module Reflective Lcd 7 Segment Display Screen Positive Lcd Display Module Glass Panel 0

Duty cycle
This parameter is also known as Duty number or COM number. Because STN/TN LCD is usually driven by time-division dynamic scanning mode, in this mode, the ratio of the effective turn-on time of each COM to the whole scan cycle, i.e. Duty, is fixed, equal to 1/COM number. Bias: Bias
The driving waveform of SEG/COM of LCD is analog signal, and the ratio of analog voltage to the maximum output voltage of LCD is called bias. Generally speaking, Bias is expressed by the ratio of the lowest output voltage to the highest output voltage. Generally speaking, there is a certain relationship between Bias and Duty. The more the number of Duty, the shorter the scanning time of each COM. To achieve the same display brightness and contrast, the voltage of VON will be increased, and the difference between the selection level and the non-selection level needs to be increased, that is, Bias needs to be increased. There is an empirical formula between Duty and Bias, that is, to achieve the same display brightness and contrast.
