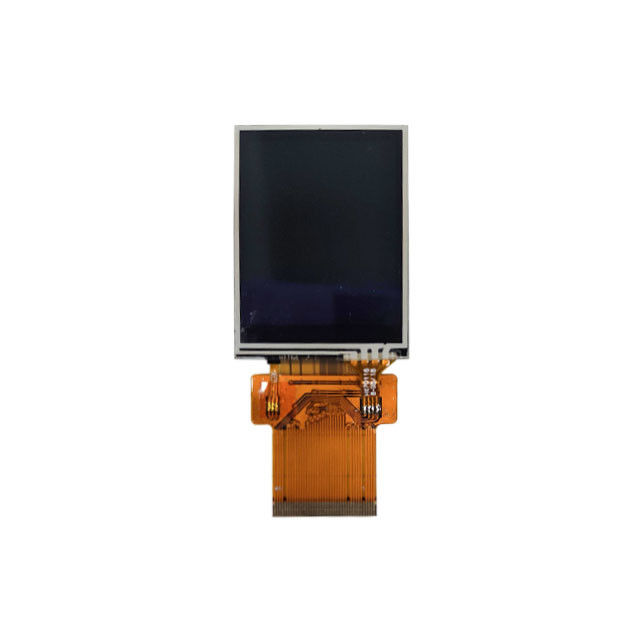

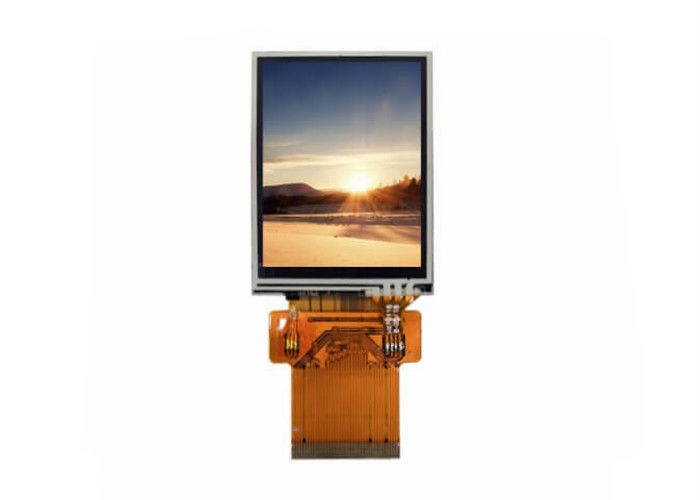

1.77 Inch TFT Lcd Module 128x126 Dots Lcd Display Screen 1.77 Inch RGB TFT LCD Display
Product Details:
Place of Origin: | Dongguan,China |
Brand Name: | Fangsheng |
Certification: | ISO9001:2015 |
Model Number: | FS1711-20PJPY |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 |
---|---|
Price: | Negotiation |
Packaging Details: | Bubble Bag + Blister + Foam Box + Carton |
Delivery Time: | 3~5 Working Days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
Supply Ability: | 200K Sets / Month |
Detail Information |
|||
Resolution: | 128 * 160 | Size: | 1.77 Inch |
---|---|---|---|
Viewing Direction: | RGB | TFT Mode: | TFT, Transmissive |
Outline Size: | 34.0 * 42.9 Mm * 2.2 T | Brightness: | 160 Nits |
Highlight: | 1.77 Inch TFT LCD Display,128x126 Dots TFT LCD Display,160 Nits RGB TFT LCD Display |
Product Description
SPEC:JPY1711-20PSPEC-Fancy May.pdf
1.77 Inch TFT Lcd Module 128x126 Dots Lcd Display Screen 1.77 Inch RGB TFT LCD Display
A. Specifications:
Product Name | Lcd 1.77 Inch Display TFT LCD Display |
Lcd Outline Size | 34.0 * 42.9 mm * 2.2 T |
Pixel pitch (W x H) | 0.218 (H) x 0.218 (V) |
Number of color | 262K |
Viewing Angle | 6 O ’ Clock |
Technology Type | a-Si TFT |
Backlight Type | 2 LEDs White LED |
Interface Type |
MCU 8080-8BIT
|
Controller / Driver | ST7735S |
Our Advantage:
1. Reply within 2 hours
2. Quote within 4 hours
3. Drawing design 1~2 Days
4. Sample in 3~12 Days
5. Mass production L/T 15~25 Days
Our Certificates:
1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
4. 100% inspected at each process: PPM 99.9% of quailed promise
B. Product Applications:
C. Structure Diagram:
Pin Assignment
Handling Precautions
Safety
DO NOT put it in your mouth. If the liquid crystal touches your skin or clothes, wash it off immediately using soap and water.
Handling
1.The LCD and touch panel is made of plate glass. DO NOT subject the panel to mechanical shock or to excessive force on its surface.
2. Do not handle the product by holding the flexible pattern portion in order to assure the reliability
3. Transparency is an important factor for the touch panel. Please wear clear finger sacks, gloves and mask to protect the touch panel from finger print or stain and also hold the portion outside the view area when handling the touch panel.
4. Provide a space so that the panel does not come into contact with other components.To protect the product from external force, put a covering lens (acrylic board or similar board) and keep an appropriate gap between them.
5. Transparent electrodes may be disconnected if the panel is used under environmental conditions where dew condensation occurs.
6. Property of semiconductor devices may be affected when they are exposed to light, possibly resulting in IC malfunctions.To prevent such IC malfunctions, your design and mounting layout shall be done in the way that the IC is not exposed to light in actual use.
Static Electricity
1. Ground soldering iron tips, tools and testers when they are in operation.
2. Ground your body when handling the products.
3. Power on the LCD module BEFORE applying the voltage to the input terminals.
4. DO NOT apply voltage which exceeds the absolute maximum rating.
5. Store the products in an anti-electrostatic bag or container.
Storage
1. Store the products in a dark place at +25℃±10℃ with low humidity (65%RH or less).DO NOT store the products in an atmosphere containing organic solvents or corrosive gas.
Cleaning
1. DO NOT wipe the touch panel with dry cloth, as it may cause scratch.
2. Wipe off the stain on the product by using soft cloth moistened with ethanol. DO Not allow ethanol to get in between the upper film and the bottom glass. It may cause peeling issue or defective operation. Do not use any organic solvent or detergent other than ethanol.
