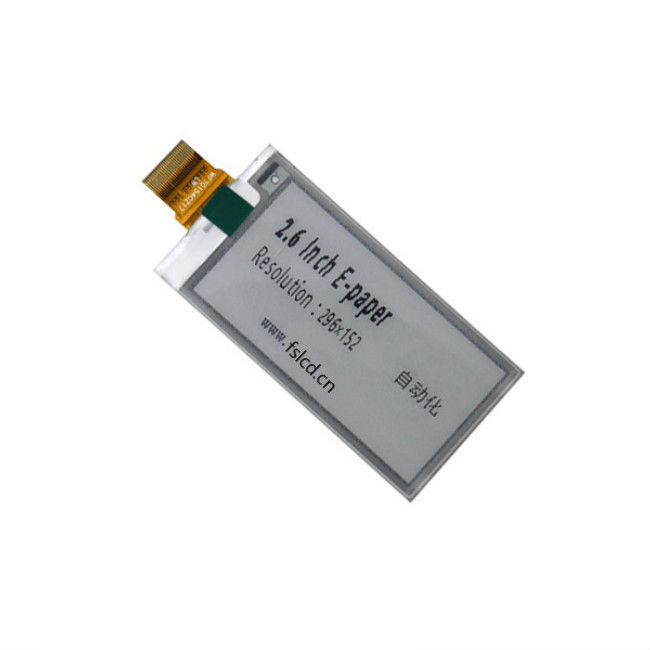

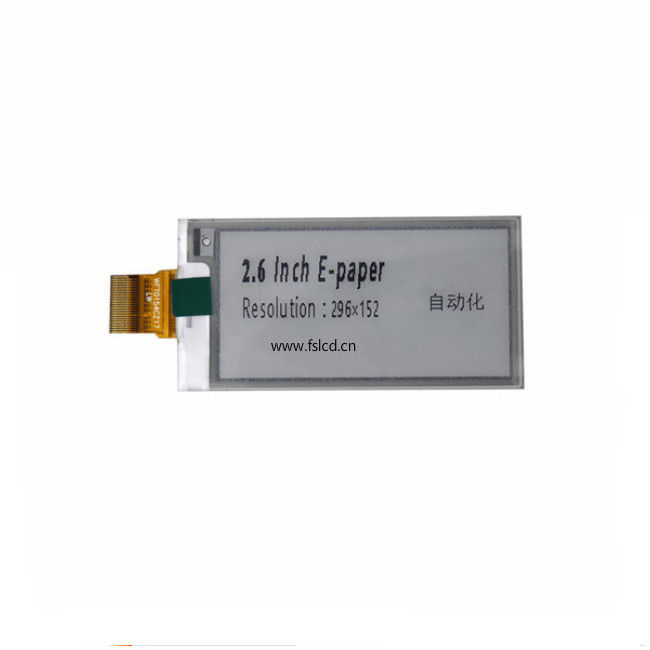

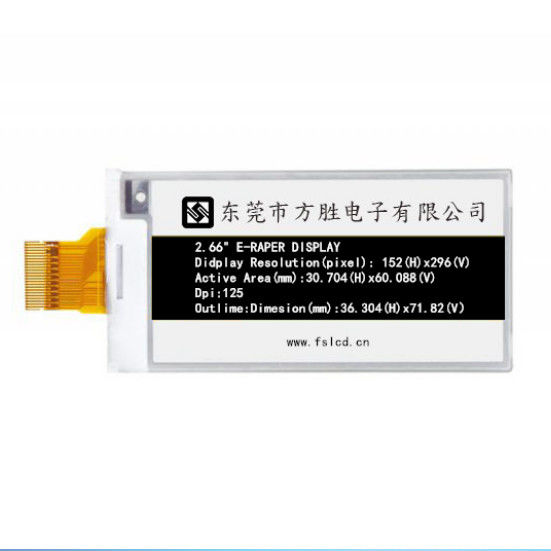

2.6 Inch 296*152 Dots Spi EDP Display For Price Tag

Basic Information
Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FTHINK-E0266A27
Minimum Order Quantity: 1000 pieces
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Detail Information
Resolution: 152 ( RGB ) * 296 Size: 2.6 Inch
Viewing Direction: All OLED Mode: E-Ink Display
High Light:

Spi EDP Display

,

2.6 Inch EDP Display

,

152RGB*296*152 E Paper Screen


Product Description



E-Ink Display 2.6 Inch E-Paper Screen 296*152 Dots Spi EDP Display for Price Tag Shelf Label Display


A. Specifications:


ITEM
CONTENT
DESCRIPTION
1
Display outline size
71.82 ( H ) * 36.3 ( W ) * 0.95 mm ( D )
2
VA size
60.09 * ( H ) * 30.7 ( W ) mm
3
Resolution
152 RGB ( H ) x 296 ( V )
4
Pixel Configuration
Rectangle
5
Pixel Pitch
0.202×0.203
6
Pin no
24 Pins
7
Color
Black White, Red
8
Drive IC
SSD1680




Advantages:



♦.High Contrast. very clear display even under strong sunlight.

♦.Wide viewing angle

♦.Low-power e-paper applications

♦.Environment Green. it can be taken as a replacement of normal paper.

♦.Ultra thin. the min thickness can reach 0.1mm, flexible and easy to bend.



Application:

Wearables

eBooks

Smart cards

Electronic labels

Status displays



B. How e-paper works​ :

E-paper (also called ePaper) is an electronic display technology that mimics the appearance of paper. Using the same inks as the traditional printing industry, e-paper displays (EPDs) have tiny capsules filled with charged ink particles. When the proper charge is applied, an EPD creates highly detailed images with the contrast ratio and readability of printed material.



2.6 Inch 296*152 Dots Spi EDP Display For Price Tag 0

Ultra-low power displays open new options for IoT

As a bistable display technology, e-paper is an extremely low power option. Once an EPD renders text and images, no power is needed to maintain the display. In fact, e-paper can use harvested energy to make updates, enabling you to design RFID or NFC IoT devices with battery-less EPDs






C. Structure Diagram:


The screen is flexible, and the oled screen can also be made of a flexible array material, allowing it to be closer to a fully rounded phone. Because of this, the current smartphone frame to do more and more narrow. The screen also has the advantage of power saving and screen display features, these two LCD screen can not do. The screen not only Narrows the bezel, but also reduces the phone's thickness because it is so thin. It's also because of its thinness that part of the fingerprint unlock problem has been solved.


 2.6 Inch 296*152 Dots Spi EDP Display For Price Tag 1




Company information:

Founded in 2001, Sunfly has more than 19 years experience in producing small and medium size LCD modules.As a leading-edge TN,STN,LCD Module supplier,we have cooperated with many famous customers such as Panasonic,SamSung and ABB.



2.6 Inch 296*152 Dots Spi EDP Display For Price Tag 2







We're professional customized display solution manufacturer,The fast lead time and the best price is our strong advantage.



FAQ

1.What is your delivery method?

DHL , UPS , FEDEX ,TNT

2. What is the lead time of the products?

Samples in stock will be sent within 3 days after payment.

25~35 working days for mass production

3. Payment methods?

T/T, Paypal and Western union etc.

For samples: payment in advance.

For mass production: 50% deposit and 50% balance before shipment.

4. How long is the warranty period?

Generally the warranty period is one year. It depends on different products.

5.What is the Product MOQ?

Different product has the different MOQ, please contact us sales for detailed information.

6.What is the products application?

Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
