3.3V Infrared Thermometer TN LCD 7 Segment Display

3.3V Infrared Thermometer TN LCD 7 Segment Display

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FTP1978TP01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Lcd Type: TN Lcd Display Voltage: 3.3 V
LED: RGB Or White Display Mode: Transmissive
High Light:

Infrared Thermometer LCD 7 Segment Display


3.3V LCD 7 Segment Display


tn lcd seven segment display

Product Description

Lcd 7 Segment Display Infrared thermometer Lcd Screen for Infrared thermometer

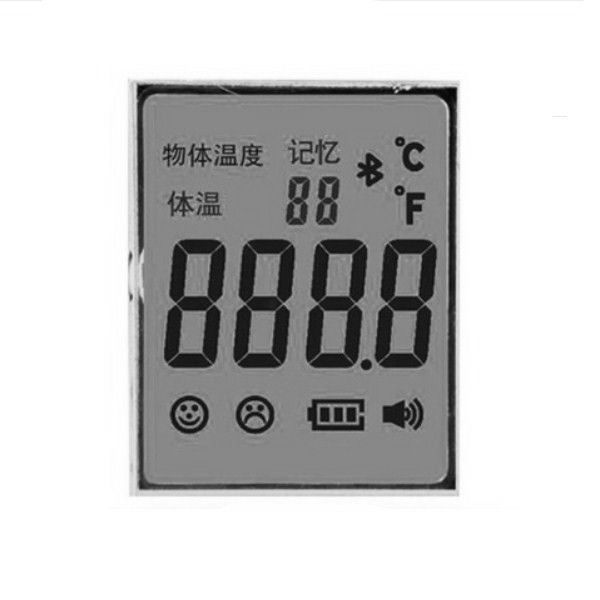

3.3V Infrared Thermometer TN LCD 7 Segment Display 0

Fangsheng, a lcd display manufacturer since 2001, great service is our mission. High Quality is our enterprise culture.



Our Certificates:

We have got cerificate of GB / T19001-2016 idt ISO9001:2015, and our products in compliance with RoH.


A. Basic Information:

Display Outline Size
31.3 ( H ) * 24.7 ( W ) * 1.1 mm ( T )
Viewing Size
27.3 ( H ) *22.7 (W) mm
3.3 V
Operation Temperature
Drive Parameter

1/4 Duty 1/3  Bias

3 Led
 3.3V Infrared Thermometer TN LCD 7 Segment Display 1
C. Custom TN, HTN, VA, STN, FSTN series LCD Display

How to choose LCD type?
d.1.Usually,TN LCD is widely using, such as power meter LCD, telephone LCD, calculator LCD, electric cooker LCD etc. TN LCD is cheapest , but viewing angle is narrow.
d.2.HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD.
d.3. STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much!
STN LCD not only can make segment LCD,but also can make dot matrix LCD.
Unit price of STN LCD is higher than HTN LC
d.4.FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's.
d.5.VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general,VA LCD has a excellent display result.If you want a wonderful display result,VA LCD will be your best choice.
d.6.Price of HTN is little high than TN, but low than STN, VA and FSTN.



Standard payment terms: pay 30% deposit in advance, 70% balance before shipment.

Online trade assurance order, all is up to you.

Rear Polarizer Type
There are three types of polarizer: transmission polarizer; transflective polarizer and reflective polarizer.
A. If No LED backlight, please choose reflective polarizer.
B. If LED backlight is necessary,then you can choose transmission or transflective polarizer.
C. Transflective polarizer is better and expensive than transmission polarizer. But transflective LCD will have a uniform light result compared with transmission polarizer. What is more, when LED backlight is off, transflecitve LCD will also have a good display result.
D. For transmission polarizer, when it is negative LCD or LED backlight alway be on, then it is better use transmission polarizer.



The FangSheng Electronic Co.Ltd established in 2001, focusing LCD,LCM LED Backlight. The core teams have more 9 years domain experience and solution domain knowledge.

Our Company is able to produce all kinds of LCD modules: including the COB type, COG type Modules with the capability of 300k different kinds of LCM/LCD per month.


Welcome all friends from all over the world to have a good reliable and long term cooperation with us.

3.3V Infrared Thermometer TN LCD 7 Segment Display 2
