Custom Lcd 7 Segment Display Infrared thermometer Lcd Screen for Medical Device

Custom Lcd 7 Segment Display Infrared thermometer Lcd Screen for Medical Device

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FTP1989TP01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Lcd Type: TN Lcd Display Voltage: 2.5V
LED: White Display Mode: Transmissive
High Light:

monochrome lcd display

,

tn lcd module

Product Description

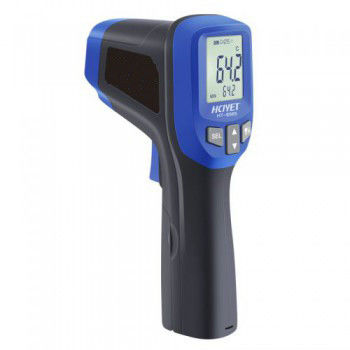

Custom Lcd 7 Segment Display Infrared thermometer Lcd Screen for Medical Device

1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen

Custom Lcd 7 Segment Display Infrared thermometer Lcd Screen for Medical Device 0
Custom Lcd 7 Segment Display Infrared thermometer Lcd Screen for Medical Device 1
A. Basic Information:


ITEM
CONTENT
DESCRIPTION
1
Display Outline Size
76 ( H ) * 68 ( W ) * 1.1 mm ( T )
2
Viewing Size
70 ( H ) * 54(W) mm
3
Voltage
 3.3 V , 5.0V
4
Operation Temperature
-0~60℃
5
Drive Parameter

1/4 Duty 1/3  Bias

6
Backlight
4pcs Led
7
Color
White
8
Interface
Pin

How to make a LCD mold to get TN ,HTN,STN,FSTN,or VA LCD samples?
Firstly, please understand that there is no standard monochrome LCD display panel in monochrome LCD industry (not including color TFT LCD,COB moule and OLED) ,because specifications of LCD panel are quite different, especially size, voltage,viewing direction,graphics and so on.
In order to custom make LCD easy,please confirm these specifications below:

LCD size (mm):

Customers should tell us viewing area size or total LCD size in millimeter(length,width). We will help you design a final and economic LCD size.
LCD total thickness is 2.8mm or 2.0mm or 1.7mm. Usually,2.8mm is very common thickness.

LCD graphics(characters,icons)

Customers should send a simple LCD graphics(Formal CAD drawing or sketch) to us,then we will understand how many segment it is.Our engineer will make formal LCD drawing for your approval.

LCD type:

1) TN, 2)HTN, 3)STN,  4)FSTN, 5)VA

LCD operating voltage:
LCD operating voltage is up to LCD drive chip.
Usually,LCD operating voltage range is 2.8~5.0V.
We recommend to use 3.0V or 3.3V or 5V operating voltage.


Rear polarizer type:
There are three types of polarizer: transmission polarizer;transflective polarizer and reflective polarizer.
If No LED backlight,please choose reflective polarizer.
If LED backlight is necessary,then you can choose transmission or transflective polarizer.
Transflective polarizer is better and expensive than transmission polarizer.But transflective LCD will have a uniform light result compared with transmission polarizer. What is more,when LED backlight is off, transflecitve LCD will also have a good display result.
For transmission polarizer,when it is negative LCD or LED backlight alway be on,then it is better use transmission polarizer.

Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.
