Seven Segment TN LCD Display / Reflective LCD Monochrome Numeric Display Panel
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FTP1014TP01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 3 ~ 5 Working Days |
| Payment Terms: | T/T,Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Lcd Type: | TN Lcd Display | Voltage: | 3.3 V |
|---|---|---|---|
| LED: | White, Blue | Display Mode: | Transmissive, Transflective |
| High Light: | monochrome lcd display,tn lcd module |
||
Product Description

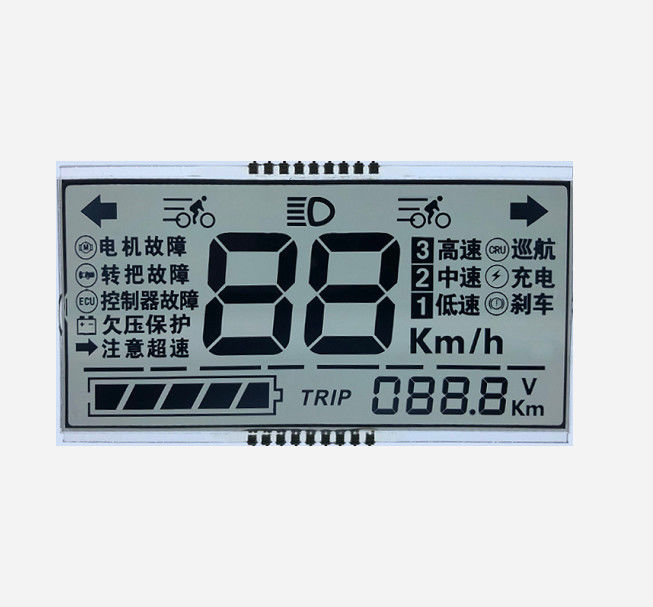

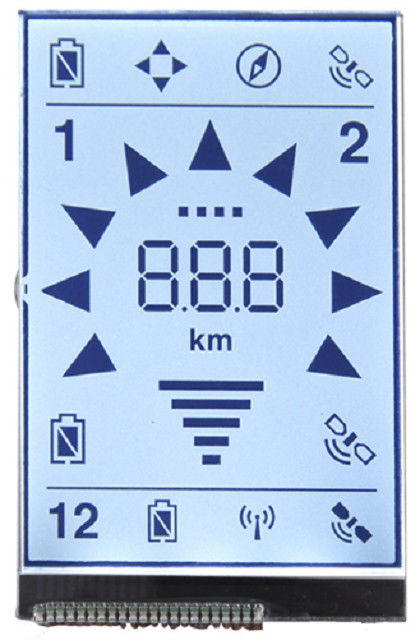

Lcd Display Custom Lcd 7 Segment Display Reflective Lcd Monochrome Numeric Display Panel
Lcd Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: 1:1 to 1:9
Wide Operation & Storage temperature range
Low power consumption
High reliability
Rear polarizer type:
There are three types of polarizer: transmission polarizer; transflective polarizer and reflective polarizer.
A. If No LED backlight, please choose reflective polarizer.
B. If LED backlight is necessary,then you can choose transmission or transflective polarizer.
C. Transflective polarizer is better and expensive than transmission polarizer. But transflective LCD will have a uniform light result compared with transmission polarizer. What is more, when LED backlight is off, transflecitve LCD will also have a good display result.
D. For transmission polarizer, when it is negative LCD or LED backlight alway be on, then it is better use transmission polarizer.
Basic Information:
|
ITEM
|
CONTENT
|
DESCRIPTION
|
|
1
|
Display Outline Size
|
56 ( H ) * 22 ( W ) * 1.1 mm ( T )
|
|
2
|
Viewing Size |
52 ( H ) * 16(W) mm
|
|
3
|
Voltage
|
3.3V
|
|
4
|
Operation Temperature
|
-20～70℃
|
|
5
|
Drive Parameter
|
1/4 Duty 1/3 Bias |
|
6
|
Backlight
|
2pcs Led
|
|
7
|
Color
|
White |
|
8
|
Interface
|
Pin
|
Connection mode of LCD.
How to connect LCD on your PCB?There are four type of connectors for your choice.
- Metal pin connector. It is very common connection way. Pins should insert into PCB holes and solder it. It is very strong and firm. LCD,LED backlight or PCB can be connected together as a LCD module.
For the connection,If you must make sure that LCD and PCB can be compacted well, or else LCD can't be displayed or just display a part.
But zebra strip is cheap.
3.Heat seal paper.Heat seal paper is a flexible connect way. Heat seal paper can be heated pressing on LCD and PCB directly. But head seal is easy to be oxidized after a few years.
4.FPC(Flexible Printed Circuit) connection. FPC connector is also a flexible connect way. FPC quality is very good compared with heat seal paper. It is a good connection way,but price and tooling charge is higher.
