3.3 V HTN Lcd Negative Display Panel Drive Parameter 1/4 Duty 1/3  Bias

3.3 V HTN Lcd Negative Display Panel Drive Parameter 1/4 Duty 1/3 Bias

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FHP2511GP01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Lcd Type: HTN Lcd Display Voltage: 3.3 V
LED: White Display Mode: Transmissive, Transflective
High Light:

blue film lcd

,

transflective lcd display

Product Description

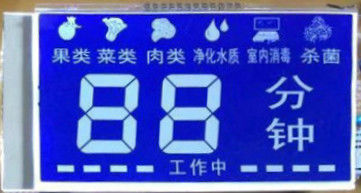

7 Segment Lcd Display HTN Lcd Negative Display Panel Custom Size Lcd Display Module



Rear polarizer type:
There are three types of polarizer: transmission polarizer; transflective polarizer and reflective polarizer.
A. If No LED backlight, please choose reflective polarizer.
B. If LED backlight is necessary,then you can choose transmission or transflective polarizer.
C. Transflective polarizer is better and expensive than transmission polarizer. But transflective LCD will have a uniform light result compared with transmission polarizer. What is more, when LED backlight is off, transflecitve LCD will also have a good display result.
D. For transmission polarizer, when it is negative LCD or LED backlight alway be on, then it is better use transmission polarizer.

3.3 V HTN Lcd Negative Display Panel Drive Parameter 1/4 Duty 1/3  Bias 0



Basic Information:

ITEM
CONTENT
DESCRIPTION
1
Display Outline Size
52 ( H ) * 45 ( W ) * 1.1 mm ( T )
2
Viewing Size
49 ( H ) * 40 (W) mm
3
Voltage
4.5V
4
Operation Temperature
-20~70℃

5

Drive Parameter

1/4 Duty 1/3  Bias

6
Backlight
3pcs Led
7
Color
White
8
Interface
Pin





Connection mode of LCD.
How to connect LCD on your PCB?There are four type of connectors for your choice.

1. Metal pin connector. It is very common connection way. Pins should insert into PCB holes and solder it. It is very strong and firm. LCD,LED backlight or PCB can be connected together as a LCD module.

2. Zebra strip.When it is zebra strip connector ,then zebra strip should be between LCD and PCB.You should compact LCD and PCB evenly,so that zebra trip can contact and breakover PCB with LCD.

For the connection,If you must make sure that LCD and PCB can be compacted well, or else LCD can't be displayed or just display a part.
But zebra strip is cheap.​

3.Heat seal paper.Heat seal paper is a flexible connect way. Heat seal paper can be heated pressing on LCD and PCB directly. But head seal is easy to be oxidized after a few years.

4.FPC(Flexible Printed Circuit) connection. FPC connector is also a flexible connect way. FPC quality is very good compared with heat seal paper. It is a good connection way,but price and tooling charge is higher.



Inspection Standard

Surface

Inspection



18

(subordination )



Requirement Postive Lcd Display:

Punctiform defective (Lcd with dirty

spots, paster with dirty spots, glass

surface damage, polarizer damage

(after the paster is visual)

Φ=(L+W)/2

L=Length

W=Width

Inspection

Standard

10 mold

11~30 mold

31~80 mold

>80 mold

φ≤0.1mm

Ignored

Ignored

Ignored

Ignored

0.1mm<φ≤0.2mm

3 3 2 2

0.2mm<φ≤0.25mm

1 1 0 0

0.25mm<φ≤0.3mm

0 0 0 0

0.3mm<φ≤0.35mm

0 0 0 0

0.10mm<φ≤0.35mm accept total quantity

3 3 2 2

Note:

1. 0.15mm<φ≤0.25mm the distance between two points should be >5mm, the above defects status can be ignored when it is outside of V/A area.

There are special status subject to customer request or sample signed

Requirement Negative Lcd Display:

Punctiform defective (Lcd with dirty

spots, paster with dirty spots, glass

surface damage, polarizer damage

(after the paster is visual)

Φ=(L+W)/2

L=Length

W=Width



Inspection

Standard

10 mold 11~30 mold 31~80 mold >80 mold

φ≤0.1mm

6 5 4

3

0.1mm<φ≤0.2mm

3 3 2 1

0.2mm<φ≤0.25mm

0 0 0 0

0.25mm<φ≤0.3mm

0 0 0 0

0.10mm<φ≤0.35mm accept total quantity

6 5 4 3

Note:

1. 0.1mm<φ≤0.25mm the distance between two points should be >5mm, the above defects status can be ignored when it is outside of V/A area.

2. There are special status subject to customer request or sample signed
