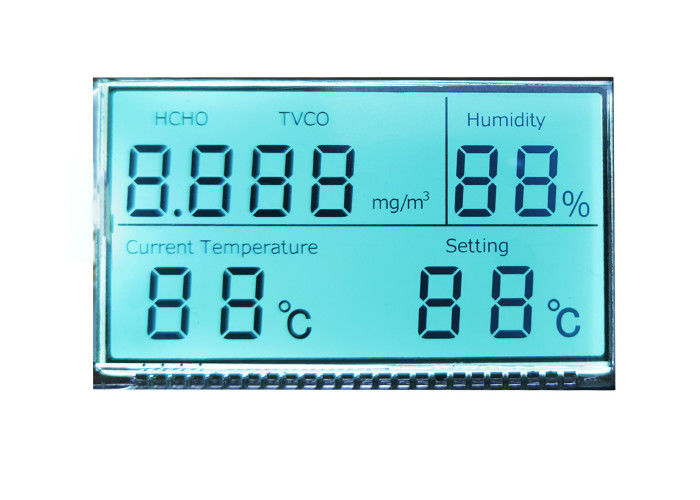

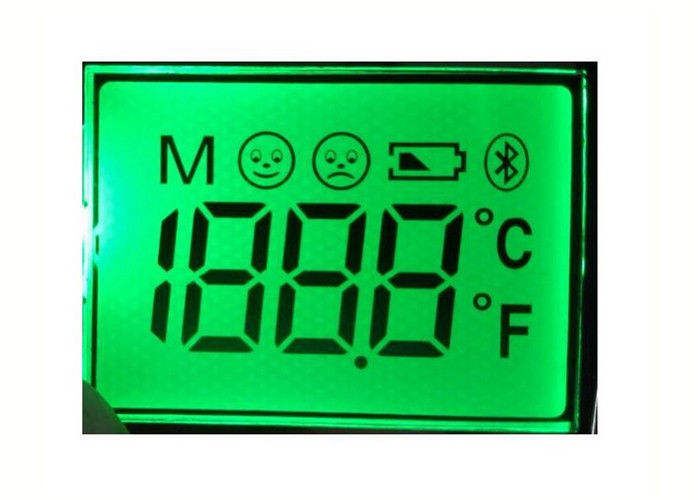

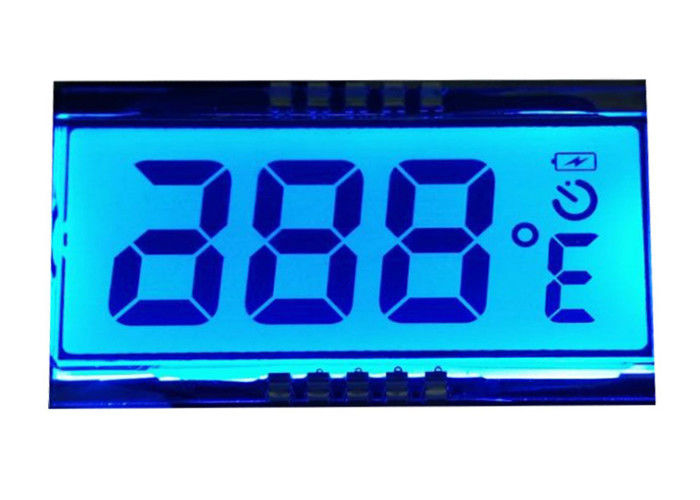

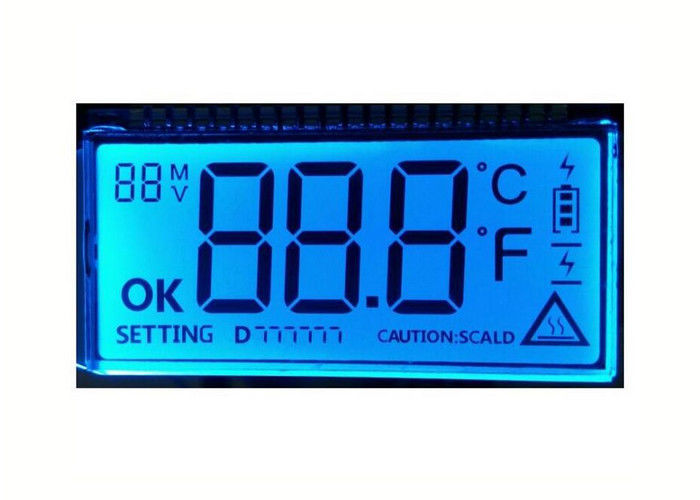

Custom TN HTN STN FTSN Reflective LCD Panel / Monochrome LCD Numeric Display Module

Basic Information
Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FTP1012TP01
Minimum Order Quantity: 100 pieces
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Detail Information
Lcd Type: TN Lcd Display Voltage: 3.0 V
LED: White, Blue Display Mode: Transmissive, Transflective

Product Description

Custom Lcd High Contrast STN Lcd Display 7 Segment Lcd Wide Viewing Display LCD for Electronic Products



Lcd Features:

Transmissive, Transflective and Reflective Mode

Duty Ratio: 1:1 to 1:9

Wide Operation & Storage temperature range

Low power consumption

High reliability

Rear polarizer type:
There are three types of polarizer: transmission polarizer; transflective polarizer and reflective polarizer.
A. If No LED backlight, please choose reflective polarizer.
B. If LED backlight is necessary,then you can choose transmission or transflective polarizer.
C. Transflective polarizer is better and expensive than transmission polarizer. But transflective LCD will have a uniform light result compared with transmission polarizer. What is more, when LED backlight is off, transflecitve LCD will also have a good display result.
D. For transmission polarizer, when it is negative LCD or LED backlight alway be on, then it is better use transmission polarizer.



Basic Information:

ITEM
CONTENT
DESCRIPTION
1
Display Outline Size
88 ( H ) * 82 ( W ) * 1.1 mm ( T )
2
Viewing Size
80 ( H ) * 74(W) mm
3
Voltage
3.3V
4
Operation Temperature
-10~60℃
5
Drive Parameter

1/4 Duty 1/3  Bias

6
Backlight
6pcs Led
7
Color
White
8
Interface
Pin



Connection mode of LCD.
How to connect LCD on your PCB?There are four type of connectors for your choice.

  1. Metal pin connector. It is very common connection way. Pins should insert into PCB holes and solder it. It is very strong and firm. LCD,LED backlight or PCB can be connected together as a LCD module.

Custom TN HTN STN FTSN Reflective LCD Panel / Monochrome LCD Numeric Display Module

2. Zebra strip.When it is zebra strip connector ,then zebra strip should be between LCD and PCB.You should compact LCD and PCB evenly,so that zebra trip can contact and breakover PCB with LCD.

For the connection,If you must make sure that LCD and PCB can be compacted well, or else LCD can't be displayed or just display a part.
But zebra strip is cheap.

​   Custom TN HTN STN FTSN Reflective LCD Panel / Monochrome LCD Numeric Display Module

3.Heat seal paper.Heat seal paper is a flexible connect way. Heat seal paper can be heated pressing on LCD and PCB directly. But head seal is easy to be oxidized after a few years.

Custom TN HTN STN FTSN Reflective LCD Panel / Monochrome LCD Numeric Display Module

4.FPC(Flexible Printed Circuit) connection. FPC connector is also a flexible connect way. FPC quality is very good compared with heat seal paper. It is a good connection way,but price and tooling charge is higher.

Custom TN HTN STN FTSN Reflective LCD Panel / Monochrome LCD Numeric Display Module

WHO WE ARE?

The FangSheng Electronic Co.Ltd established in 2001, focusing LCD,LCM LED Backlight. The core teams have more 8 years domain experience and solution domain knowledge.

Our Company is able to produce all kinds of LCD modules: including the COB type, COG type Modules with the capability of 300k different kinds of LCM/LCD per month.

More than 70% of our products is specially customer designed to be used in Video and Audio system, financial ,medical ,industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on.

Welcome all friends from all over the world to have a good reliable and long term cooperation with us.
