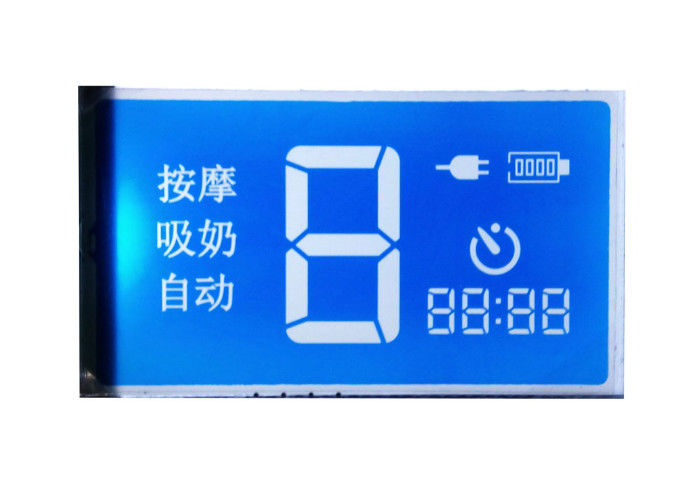

Industrial Custom TN Digital 7 Segment Display LCD Module For Vehicle System

Industrial Custom TN Digital 7 Segment Display LCD Module For Vehicle System

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FSTN2511P01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Lcd Type: FSTN Lcd Display Voltage: 5.0 V
LED: White Blue Display Mode: Transmissive
High Light:

lcd alphanumeric display


stn lcd module

Product Description

Industrial Custom Screen Tn 7 Segment Digital Display Lcd Module For Vehicle System

  • With RoHS Directive-compliance
  • Image reversion: up/down and left/right
  • Applications: consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, epos/energy control/amusement and gambling machines/white goods/mobile phones and PDAS
  • Company advantages:
    • Small MOQ accepted
    • Competitive price and short lead-time
    • ISO9001 and RoHS certificated factory supplied
    • TFT LCD module, touch panel, PCB with SMT/COB solutions

Basic Information:

Display Outline Size
52 ( H ) * 31 ( W ) * 1.1 mm ( T )
Viewing Size
46 ( H ) * 25(W) mm
Operation Temperature
Drive Parameter

1/4 Duty 1/3  Bias

3pcs Led


FSTN2511P01 is STN LCD display is high Contrast and wide viewing angle display.Usually, it is blue background and white graphic (white LED backlight),

The unit price is higher than TN, HTN,VA and FST LCD display. It can be used in high-end electronics products.

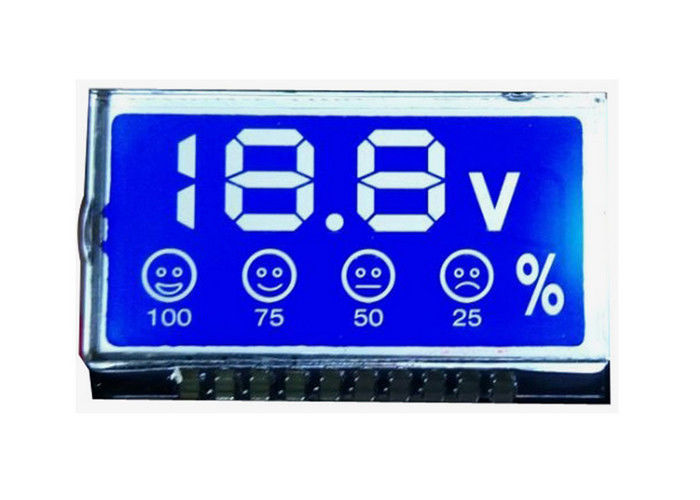

Industrial Custom TN Digital 7 Segment Display LCD Module For Vehicle System 0


Viewing direction
As viewing angle of monochrome LCD is not very wide,especially TN LCD and HTN LCD, so it is necessary to confirm a best viewing direction,so that we can get a best display result.

As usual,LCD viewing direction is separated into 6:00 direction and 12: direction.
6:00 viewing direction: When our line of sight is from bottom to top of LCD,it is 6:00 viewing direction,such as telephone screen,wall clock screen,air condition screen and so on.

12:00 viewing direction: When our line of sight is from top to bottom of LCD,it is 12:00 viewing direction,such as electric cooker display screen.
Viewing direction of LCD is very important,if we made a wrong viewing direction,then the LCD display result will not good viewing. So please check it carefully to avoid re-open mold.

Our Services:
>> Free repair within one year after the shipment of products from us.
>> Replacement within 30 days after the shipment of products from us due to products' problems.
>> We can print your logo and stick your model No.on the cameras.
>> We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
>> Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
>> All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
>> Customers satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email or online. It will be responded within 24 hours.
>> Products pictures only for your reference. please kindly refer to the specification. we can provide the products basic on the specification. or you can offer your own specification or drawing , we can customize all kinds of LCD displays for you. thanks for your kind support always.
