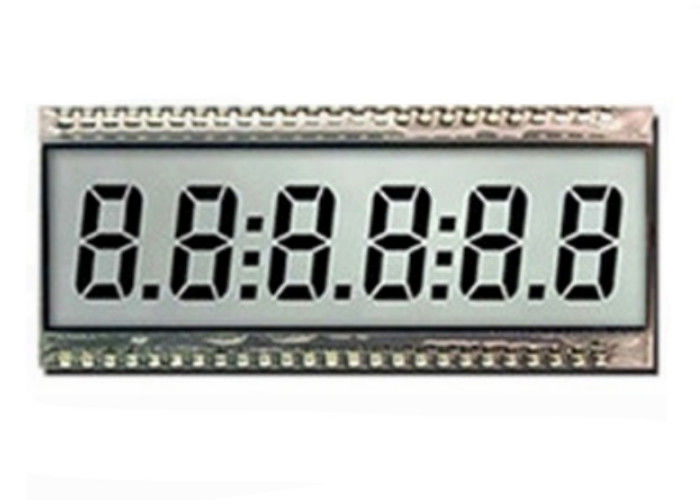

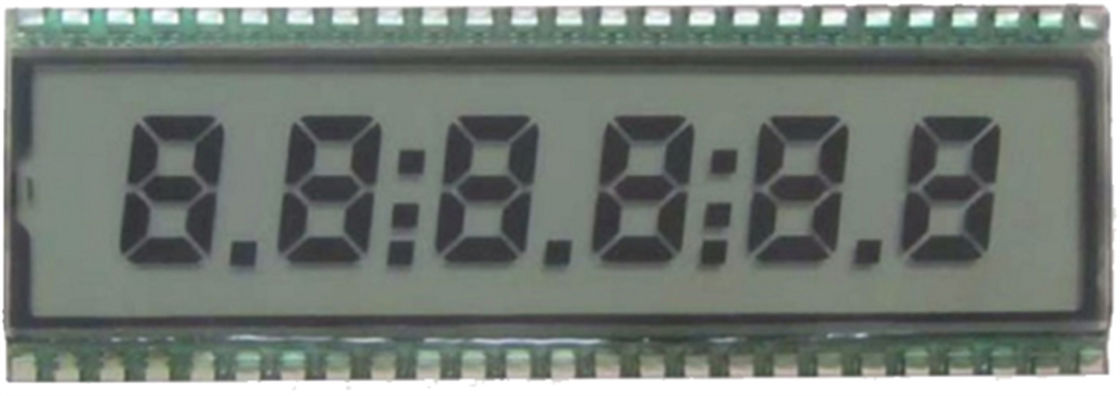

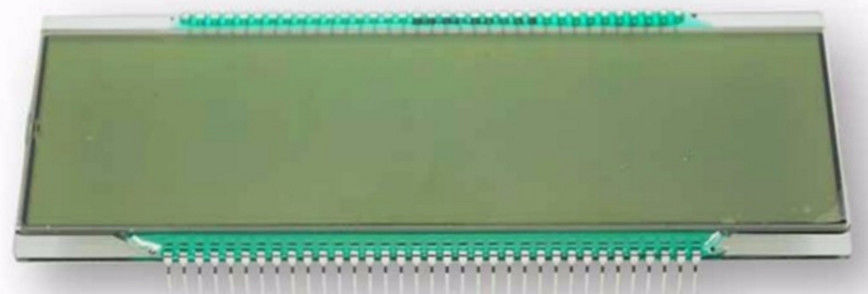

White Color TN LCD Display Custom Numeric LCD Monochrome Display Module
Product Details:
Place of Origin: | Dongguan, China |
Brand Name: | Fangsheng |
Certification: | ISO9001:2015 |
Model Number: | FTP1010TP01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 500 |
---|---|
Price: | Negotiation |
Packaging Details: | Bubble bag + Blister + Foam box + Carton |
Delivery Time: | 7-10 Working Days |
Payment Terms: | T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C |
Supply Ability: | 200K Sets / Month |
Detail Information |
|||
Type: | TN LCD Display | LED: | 4PCS LED |
---|---|---|---|
Voltage: | 3.0V | Connector: | Pin |
Backgound: | White Color | Polarizer Type: | Transmssive |
Highlight: | tn lcd module,tn panel display |
Product Description
TN Lcd Display 7 Segment Lcd Reflective Display Custom Numeric Lcd Monochrome Display Module
Technical parameters:
ITEM | CONTENT | DESCRIPTION |
1 | Lcd Type | Custom HTN Lcd Display |
2 | Outline Size | 115mm ( L ) * 66mm ( W ) * 1.1mm T |
3 | VA Size | 112mm ( L ) * 64mm ( W ) |
4 | Viewing Direction | 6 O ' clock |
5 | Voltage | 4.5V |
6 | Display Mode | Negative |
7 | Polarizer Mode | Transmissive |
8 | Operation temp | - 0°C TO + 50°C |
9 | Storage temp | - 10°C TO + 60°C |
10 | LED Connect | Zebra |
Product details:
* FTP1010TP01 is TN Positive Lcd Display with backgound and white LED. It's high contrast be well respond from customer.
* HTN, TN and other customized segment be widely used on a variety of treadmills, treadmills, rowing machines and other fitness equipment and instruments.
What can we custom?
1. Different 7 segment and 14 segment digits ,Patterns with printed silk-screen
2. 2.7 to 4.5V lcd driving voltage
3. Pin connection or rubber connection
4. Cog package optional
5. HTN,TN,STN, FSTN liquid display optional
6. Transflective,Reflective ,Transmissive polarity optional
7. Different backlight optional
8. Good at VA display
Advantages:
* Design difference segment and display content
* Mature technology
* Short supply cycle
* Flexble prdouction
Packaging&shipping
Packaging | Blister tray+ foam + cartom + foam + cartom |
Carton Size | 41cm * 42.0cm * 36cm or customized,100-300PCS / carton |
Gross weight | 11 - 13KG |
MOQ | Depends on lcd size |
Specitional packaging |
Negotiate |
