Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: 12864B-5.0V-Blue

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Dots Matrix: 128 * 64 Dots Voltage: 5.0V
Lcd Type: STN Lcd Display Mode: Transmissive
Highlight:

lcd dot matrix display

,

color lcd display module

Product Description



1.54 inch TFT Lcd Capacitive Touchscreen Full Viewing Angle Lcd Small Display Screen For Smart Watch and Security System


A. Specifications:

  • 12864 LCD Display Module 128x64 Dots Graphic Yellow Green Color Backlight. This product is a LCD display module with blue backlight, small and light appearance, suitbale for copiers, fax machines, laser printers, industrial test equipment, networking. LCD display module with blue backlight.
  • Small and light appearance, it is easy and convenient to use. Suitable for copiers, fax machines, laser printers, industrial test equipment, networking equipment etc. , Backlight:Yellow Green.
  • Specification: Original box: No , Color: Green , Item size: 93*70*13.5mm , Net weight: 76g , Package weight: 85g
  • It's brand new, good quality & high performance. ** PLS PAY ATTENTION the accurate size & voltage rate before placing order in order to avoid buying wrong thing.
ITEM
CONTENT
DESCRIPTION
1
Display Outline Size
93 ( H ) * 70 ( W ) * 13.5 mm ( T )
2
Viewing Size
72 ( H ) * 40 (W) mm
3
Voltage
3.0 V , 5.0V
4
Operation Temperature
0~60℃
5
Storage Temperature

-20~70℃

6
Backlight
White Led
7
Color
Blue or Yellow - Green
8
Drive IC
ST7920



Our Certificates:
1. GB / T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display



B. Product Details:

  • Suitbale for copiers, fax machines, industrial test equipment, networking, etc
  • This product is a LCD display module with blue backlight
  • 12864 LCD display module is a great replacement for the old one
  • Small and light appearance, it is easy and convenient to use
  • Other features: 5V logic power supply, parallel communication, high reliability, wide temperature range

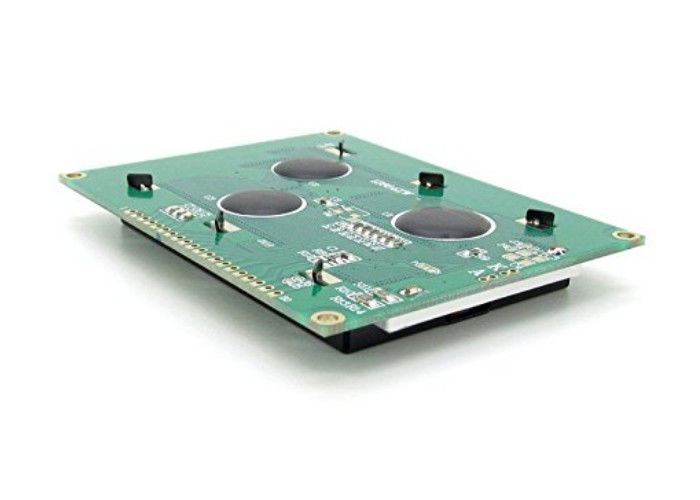

 5V 12864 LCD Display Module 128 x 64 Dots Graphic Matrix COB LCD Screen With Blue Backlight 0

C. Structure Diagram:

128x64 dot-matrix Chinese character graphic LCD module, can display English, Chinese characters and graphics, built-in 8,192 Chinese Chinese characters (16X16 dot matrix), 128 characters (8X16 dot matrix) and 64x256 dot matrix display RAM (Gdram). Can be directly interface with the CPU, providing two interfaces to connect microprocessors: 8-bit parallel and serial two connection methods. Has a variety of functions: cursor display, screen shift, sleep mode and so on.

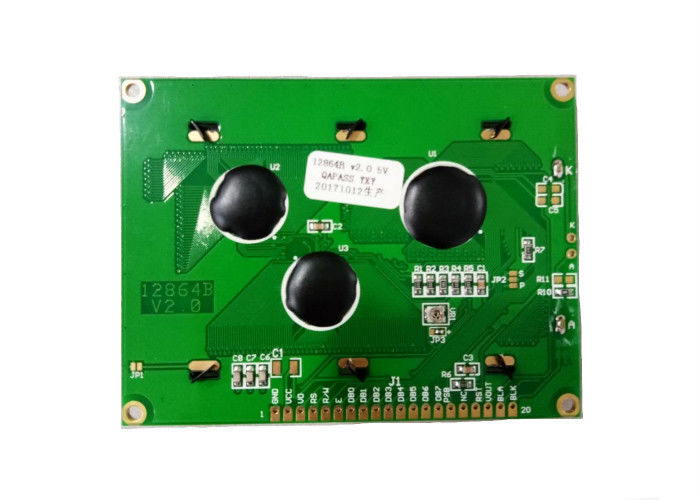

 5V 12864 LCD Display Module 128 x 64 Dots Graphic Matrix COB LCD Screen With Blue Backlight 1

 FQA

1.Q: Order process
A:PO is placed by clients → PI is issued by FS → Payment by clients → Lead time is
confirmed by FS → Shipping instrction by Clients → Delivery → Cargo tracking →
Receipt of cargo


2.Q: Lead time ( after payment is confirmed)
A: Sample: 2-3 working days
Volume: 10~15 working days


3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash


4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)


5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of FS confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to FS → Formal
report after goods received by FS → Clients confim the analysis report → Proceeding
as per the Report both agreed


6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
