Custom TN Positive Lcd 7 Segment Display Reflective Digit LCD Module For Air Conditioner Remote Controller

Basic Information
Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FTP1033RP01
Minimum Order Quantity: 1000
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Detail Information
Type: Custom Lcd Display LED: White LED Or Without
Voltage: 5.0V Connector: Metal Pin
Driving Method: 1 / 4 Duty , 1 / 3 Bias Polarizer Type: Transflective Or Reflective
High Light:

custom lcd module

,

high brightness lcd display


Product Description

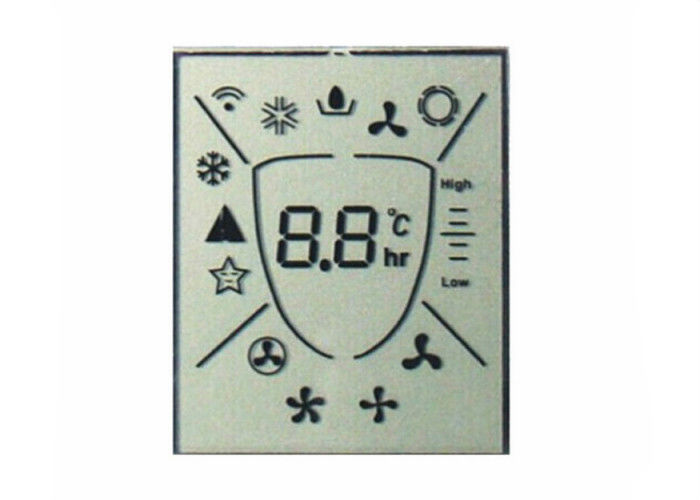

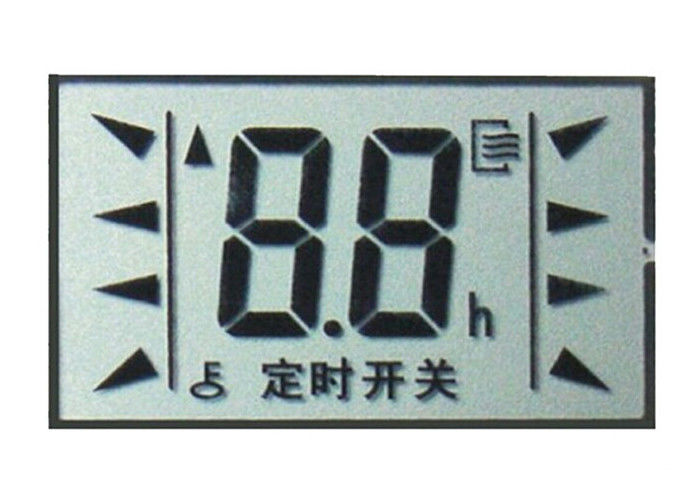

Custom Lcd Display TN Positive Lcd 7 Segment Display Reflective Digit Lcd Module For Air Conditioner Remote Controller

Technical parameters:

ITEM CONTENT DESCRIPTION
1 Lcd Type TN Lcd Display
2 Outline Size 58mm ( L ) * 35mm ( W ) * 1.1mm T
3 VA Size 52mm ( L ) * 28mm ( W )
4 Viewing Direction 6 O ' clock
5 Voltage 5.0V
6 Display Mode Positive
7 Polarizer Mode Reflective
8 Operation temp - 20°C to + 70°C
9 Storage temp - 30°C to + 80°C
10 LED Connect Metal Pin



TN is the most common display and viewing angle with a narrow range about 40º. The price is lower than HTN, VA, FSTN.

1. LCD Screen Material: Glass is main material;

2. LCD Display Structure: Polarizer,electrode,Polymer,ITO,Reflector;

3. Display Type: FSTN, STN, VA, HTN, TN;

4. LCD Display Mode: Positive display,Negative display

5. Viewing Angle: 3 o’clock, 6 o’clock, 9 o’clock, 12 o’clock;

6. The ITO thickness normal value: 0.4mm, 0.55mm, 0.7mm, 1.1mm;

7. Connector Type:Metal stitch, electroconductive rubber, heat-seal connector;

8. Transmission of light Type: reflecting type, transmission type, half transmission;

9. Backlight: LED backlight, EL backlight, CCFL backlight;

10. Operation Temperature: -40~+90 Over Wide Temperature



Application:
FTP1032RP01 is TN Lcd Display to be use on Air Conditioner and Remote Controller, Smart Thermostat, Humidity etc.
