HTN Lcd Display Custom Monochrome Transparent Digital 7 segment 14 segment Lcd Display

HTN Lcd Display Custom Monochrome Transparent Digital 7 segment 14 segment Lcd Display

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FHP1630UP01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: Custom HTN Segment Lcd Display Film: Amber
Voltage: 3.0V Connector: Pin , Zebra
Driving Method: 1 / 4 Duty , 1 / 3 Bias Polarizer Type: Transmissive
High Light:

negative lcd display

,

transflective lcd display

Product Description

HTN Lcd Display Custom Monochrome Transparent Digital 7 segment 14 segment Lcd Display

Technical parameters:

FHP1629UP01 is HTN type lcd display with amber film, it is special technology of lcd without backlight and LED, but it can be display in amber, blue and green color which is suitable for cooker of house appliance, instrument, etc.

ITEM CONTENT DESCRIPTION
1 Lcd Type TN Segnement Lcd Display
2 Outline Size 71.5mm ( L ) * 46.5mm ( W ) * 1.1mm T
3 VA Size 67mm ( L ) * 44mm ( W )
4 Viewing Direction 6 O ' clock or 12 O ' clock
5 Voltage 5.0V
6 Display Mode Positive
7 Polarizer Mode Transmissive
8 Operation temp - 20°C TO + 70°C
9 Storage temp - 30°C TO + 80°C
10 Twisted Nematic 120°



Customizing & designing segment, character, graphic LCD Display and LCD Module ( Including LED Backlight ) with different sizes, shapes, display icons for clients.
1. Wide viewing angle
2. Wide temperature
3. Good display

4. LED backlight

5. Various display color

6. Avalible for different application: oven, fridge, air-conditioner,auto etc

7. Optional: metal pin/FPC connector

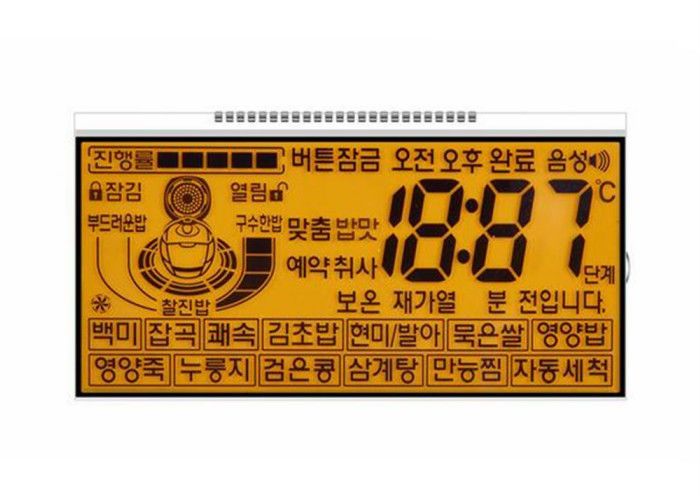

HTN Lcd Display Custom Monochrome Transparent Digital 7 segment 14 segment Lcd Display 0

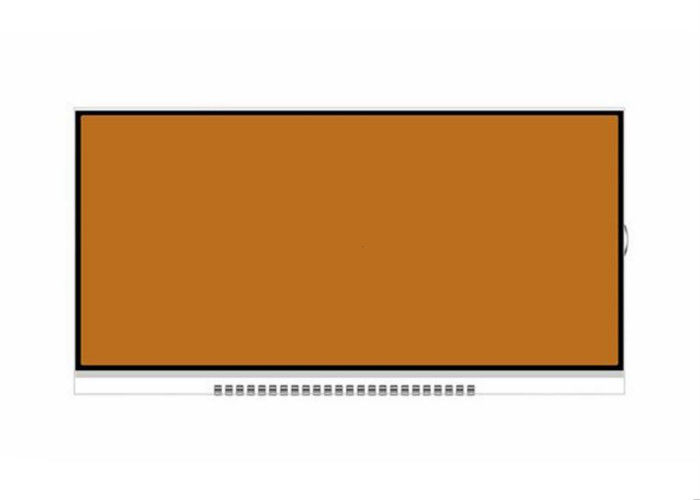

HTN Lcd Display Custom Monochrome Transparent Digital 7 segment 14 segment Lcd Display 1

Viewing Angle

How to select the viewing angle of segment lcd?

It is determined by the direction of friction in the orienting layer and cannot be changed by rotating the Polaroid. The perspective is named after the hour hand, such as 6 o 'clock perspective, 12 o 'clock perspective and so on.

The 6 o 'clock viewing Angle refers to the area from the plane direction at 6 o 'clock clockwise to the normal direction. The LCD display effect is ideal.

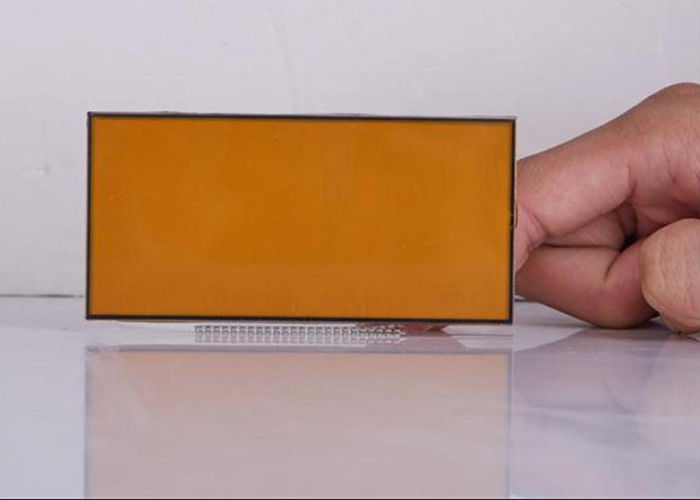

HTN Lcd Display Custom Monochrome Transparent Digital 7 segment 14 segment Lcd Display 2

6 o 'clock perspective

HTN Lcd Display Custom Monochrome Transparent Digital 7 segment 14 segment Lcd Display 3

12 o 'clock perspective

The 12:00 viewing Angle refers to the area from the plane at 12 o 'clock clockwise to the normal direction.

The viewing Angle of the LCD is determined by the position of the LCD display on the instrument. For example, the calculator is usually placed on the table or held in the hand, LCD made of 6:00 perspective is better. Some instruments have LCD screens below the eye level, usually at 12:00. The clock in the car is usually mounted on the right side of the driver to make a better 9:00 Angle.



FangSheng Electronics Co., Ltd.

Our products are not only satisfy the display individuation requirement of all the industrial manufacturing factories in the mainland,but also meet the highly uniformity and reliability requirement to the display effect of module for many famous brands in Europe, American and Asia pacific. In addition, our products has reached the extent of excellent quality and reliability could be applied in Automotive, Medical, Power station, Transportation, Industrial & Equipment and Office equipment for many famous enterprises in American, France, Italy, Australia, Korea and so on.



Shipping:

(1)25~35 working days after payment confirmed

(2)Express: DHL; FedEx; UPS; TN; EMS; China Post; HongKong.

(3) TN ,STN ,FSTN LCD MODULE samples Delivery 3-4 weeks.

(4) Mass production Delivery 4-5 weeks.

HTN Lcd Display Custom Monochrome Transparent Digital 7 segment 14 segment Lcd Display 4



We have strict quality control, to ensure product quality.

Whole production line is in a low temperature, dry and sterile environment.

Whoever enters the workshop must wear overalls.

There is an air shower at each workshop doorway, to blow off dust particles on the surface of overall.

After products have been produced, every lcd or lcm will be 100% tested.
