7 Segment LCD Display / Square LCD Module VA Negative LCD For Termostato Controller
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FVN2009MP01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 7-10 Working Days |
| Payment Terms: | T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Type: | VA LCD Display | Storage Temp:: | -20-+70℃ |
|---|---|---|---|
| Voltage: | 5.0 V | Connector: | Pin |
| Driving Method: | 1 / 4 Duty , 1 / 3 Bias | Polarizer Type: | Transmissive |
| High Light: | va lcd panel,vertical alignment lcd |
||
Product Description

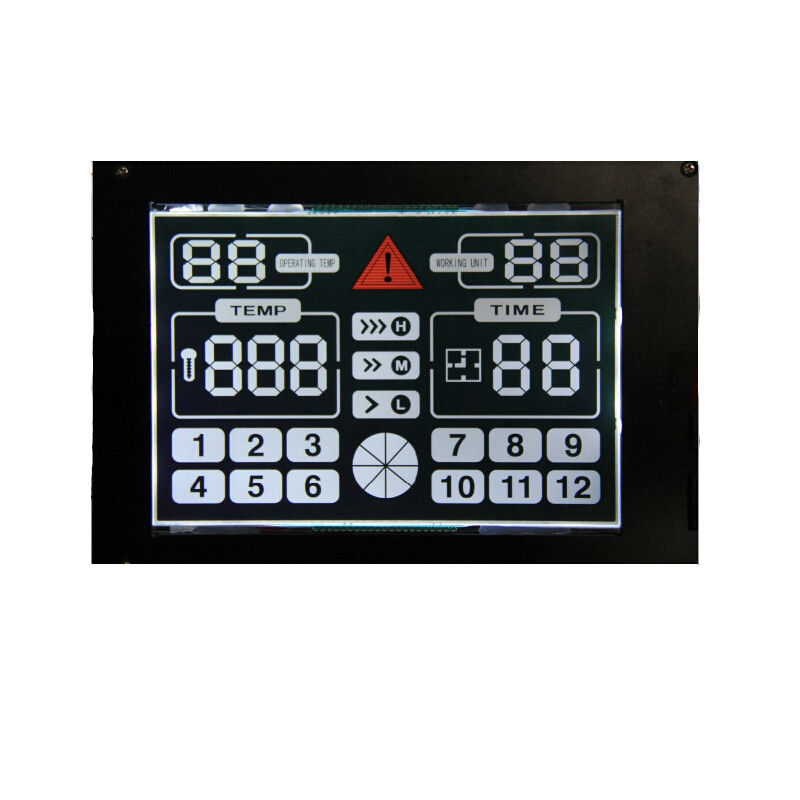

7 Segment Lcd Display Wild Viewing Lcd Module VA Negative Lcd For Termostato
>> Specifications:
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | 7 Segment Lcd VA Display |
| 2 | Outline Size | 73mm ( L ) * 57mm ( W ) * 1.1mm T |
| 3 | VA Size | 70mm ( L ) * 53mm ( W ) |
| 4 | Viewing Direction | 6 O ' clock |
| 5 | Voltage | 5.0V |
| 6 | Display Mode | Negative |
| 7 | Polarizer Mode | Transmissive |
| 8 | Backlight Size | 80mm ( L ) * 52mm ( W ) * 2.8mm T |
| 9 | LED | 3pcs White LED |
| 10 | Contactor | Pin |

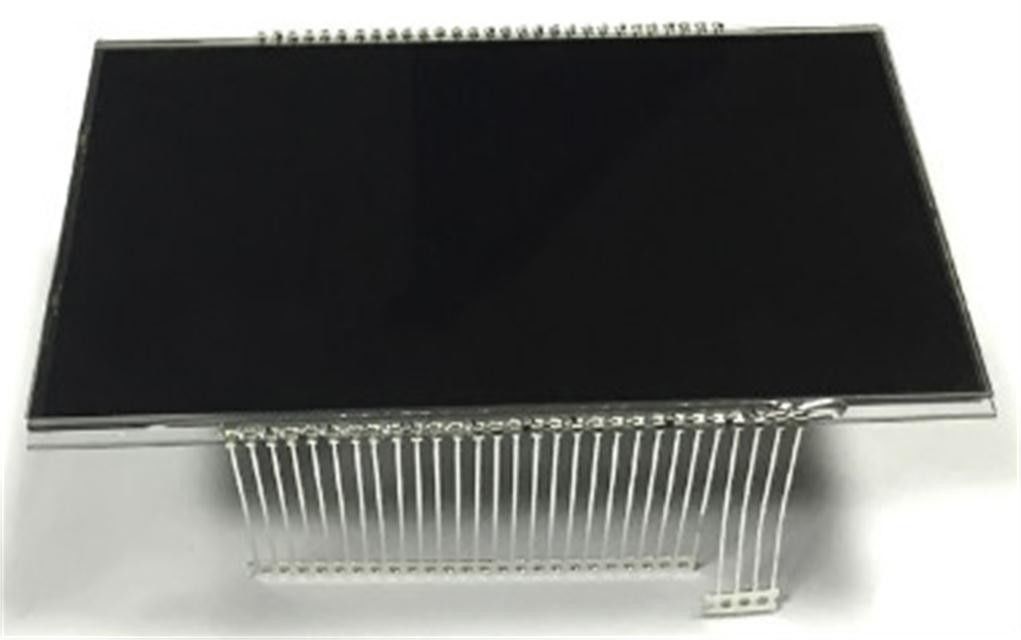

>> Product Details:

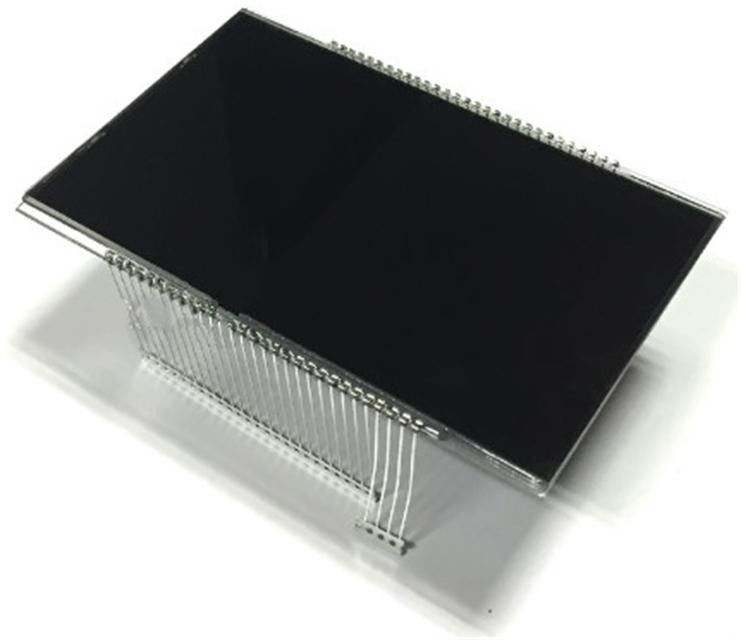

>>Connector Details:
Pins connect is easy to solder on PCB
Zebra connect is cheap cost
Heat seal connect is little high than Zebra
FPC connect is High than metal pin
>>Product Description
1. LCD Screen Material:Glass is main material,Liquid Crystal Display;
2. LCD Display Structure: Polarizer, Electrode, Polymer, ITO, Reflector, Connector;
3. Display Method: FSTN, STN, HTN,TN, VA, COG COB;
4. LCD Display Mode: Positive display, Negative display
5. Viewing Direction/Viewing Angle: 6 oclock, 9 oclock, 12 oclock;
6. The ITO general thickness : 0.4mm, 0.55mm, 0.7mm, 1.1mm;
7. Connector Type: Metal Pins, Electroconductive rubber, Heat-seal Connector, FPC;
8. Polarizer Type: Reflecive, Transparent, Transflective;
9. Backlight: Side LED backlight, LED Back light, White backlight, Blue backlight, RGB backlight;
10. Operating Temperature:-20℃~+70℃ Over Wide Temperature.
