1.3 Inch 240 * 240 MCU Interface Full Viewing Angle Flexible Square Ips Tft Lcd Module


A. Specifications:


ITEM
CONTENT
DESCRIPTION
1
Display outline siz
26 ( W ) × 29.22 ( H ) × 1.9 ( T )
2
VA size 23.4 ( W ) × 23.4 ( H )
3
Resolution
240RGB * 240
4
Viewing Direction:
ALL
5
Interface
3 Wires SPI
6
Technology Type
a-Si TFT
7
Color

262K

8
Controller IC
ST7789V

Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days




Our Certificates:
1. GB / T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display


FS013QQV01TL is 240 * 240 square ips viewing direction TFT-LCD DISPLAY panel with 3 wires SPI interface.We support customization accordding to your items.

B. Product Details:

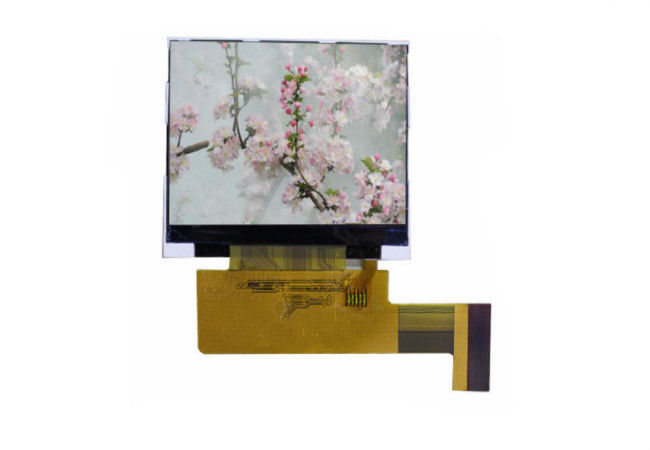

Full Viewing Angle Outdoor LCD Displays , Flexible Ips Square LCD Display Module 0

INTERFACE PIN CONNECTIONS

Pin.No Symbol Function
1 LEDK back light power supply negative
2 LEDK back light power supply negative
3 GND Ground
4 GND Ground
5 FMARK Tearing effect signal is used to synchronize MCU
    to frame memory writing
6 SDA Serial data input pin
7 WR Second Data lane in 2 data lane s ial interface
8 SCL Serial clock input pin
9 CS chip select ignal input
10 RESET A reset p n
11 IOVCC18 power supply(1.8/+2.8)
12 IOVCC18 pow r supply(1.8/+2.8)
13 VCC28 Pow r supply(+2.8)
14 VCC28 Power supply(+2.8)
15 GND Ground
16 GND Ground
17 NC No connect
18 NC No connect
19 NC No connect
20 NC No connect
21 NC No connect
22 NC No connect
23 LEDA Back light power supply positive
24 LEDA Back light power supply positive


Full Viewing Angle Outdoor LCD Displays , Flexible Ips Square LCD Display Module 1

FS130A2402TL is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It iscomposed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 240x 240 pixels and can display up to 262K colors. This product accords with RoHS environmentalcriterion.

Full Viewing Angle Outdoor LCD Displays , Flexible Ips Square LCD Display Module 2

Inspection Conditions

Environmental conditions

The environmental conditions for inspection shall be as follows

Room temperature: 20±3°C

Humidity: 65±20%RH

The external visual inspection

With a single 20-watt fluorescent lamp as the light sou c , the insp ction was in the distance of 30cm or more from the LCD to the inspector's.



C. Structure Diagram:

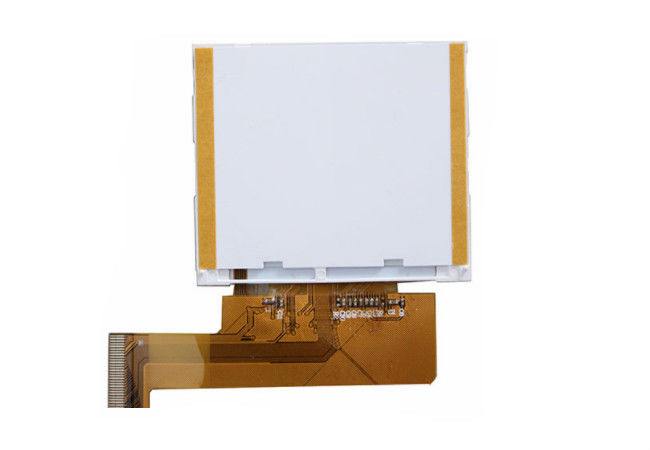

  Full Viewing Angle Outdoor LCD Displays , Flexible Ips Square LCD Display Module 3
