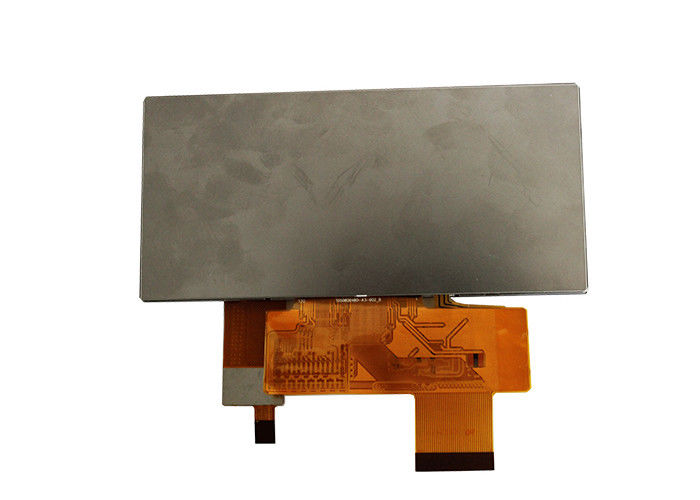

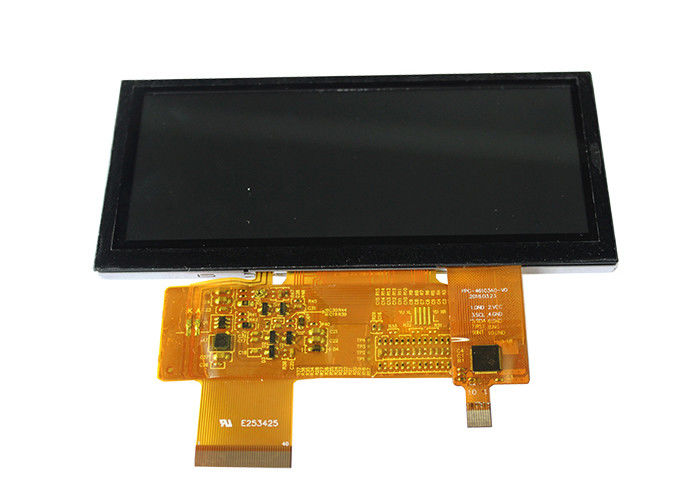

40 Pins TFT LCD Resistive Touchscreen 4.6 Inch 800 x 320 Resolution STN Positive Type
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FS046QWXH01CT-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 10~15 Working Days |
| Payment Terms: | T/T,Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Resolution: | 800 RGB*320 | Display Mode: | Transmissive / Normally White |
|---|---|---|---|
| Display Type: | STN Positive | Viewing Direction: | 12 O’clock |
| 4.6 Inch Resolution: 800 RGB*320 Interface: | 24 Bit Interface | Viewing Size: | 108*43.2 Mm |
| High Light: | arduino uno tft touch screen,raspberry pi resistive touch screen |
||
Product Description
40 Pin Touch Screen 4.6 Inch 800 x 320 TFT LCD
|
Feature |
Details |
Unit |
|
Display Size(Diagonal) |
4.6" |
|
|
LCD type |
TN TFT |
|
|
Display Mode |
Normally White/Transmissive |
|
|
Resolution |
800 RGB x 320 |
Pixels |
|
View Direction |
12 O’clock |
Best Image |
|
Gray Scale Inversion Direction |
6 O’clock |
|
|
Module Outline |
120.7 (H) x 57.08(V) x 3.10(MAX)(T) |
mm |
|
Active Area |
108 (H) x 43.2(V) |
mm |
|
Pixel Size |
135 (H) x 135(V) |
um |
|
Pixel Arrangemen |
R.G.B Vertical Stripe |
|
|
Polarizer Surface Treatment |
Anti-Glare |
|
|
Display Colors |
16.7M |
|
|
Interface |
24-bit RGB interface |
|
|
With or Without Touch Panel |
With CTP |
|
|
Operating Temperature |
-20~70 |
|
|
Storage Temperature |
-30~80 |
ºC |
|
Weight |
42 |
g |
