5 Inch 800 X 480 Ips Capacitive Touchscreen 16m Colors High Brightness 1000 Nits

Basic Information
Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FSNT050IA18840442A-C-FL
Minimum Order Quantity: 100 pieces
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3 ~ 5 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Detail Information
Resolution: 800 * 480 Size: 5.0 Inch
Viewing Direction: 6 O ' Clock TFT Mode: TFT, Transmissive

Product Description



5.0 Inch Tft Lcd Touch Panel 1000 Nit High Brightness For Industrial Application / Equipment



A. Specifications:



ITEM
CONTENT
DESCRIPTION
1
Display outline size
132.72 mm  (H ) x 87.8 mm ( V )  x 5.0 mm ( D )
2
VA size
108.6 mm ( H ) x 65.16 mm ( V )
3
Resolution
800 RGB ( H ) x 480 ( V )
4
With /Without Touch screen
CPT / RTP optional / Without
5
Interface
24 − bit RGB Strip
6
Pixel Pitch
0.04525 ( H ) x 0.13575 ( V ) s
7
Color
16M Colors
8
Drive IC
ILI6122 / ILI5960







Our Advantage:

1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days





Our Certificates:

1. GB / T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display





FSNT050IA18840442A-C-FL is 800 * 480 dots CTP  Lcd Module with brightness 500~1000 Cd / m2, drive IC ILI6122 / ILI5960 with 24 bit RGB interface



B. Product Details:

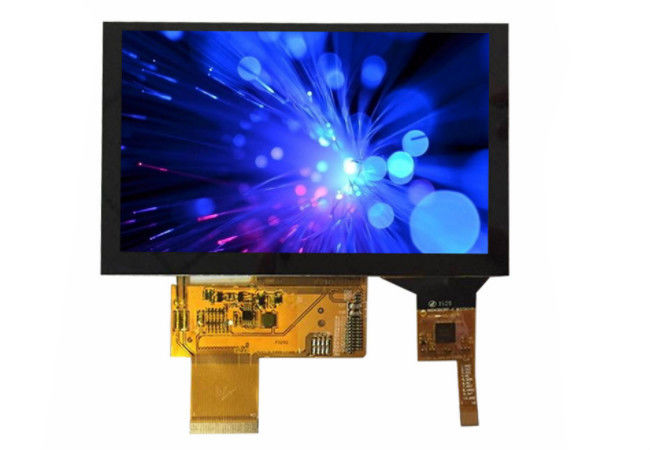

5 Inch 800 X 480 Ips Capacitive Touchscreen 16m Colors High Brightness 1000 Nits

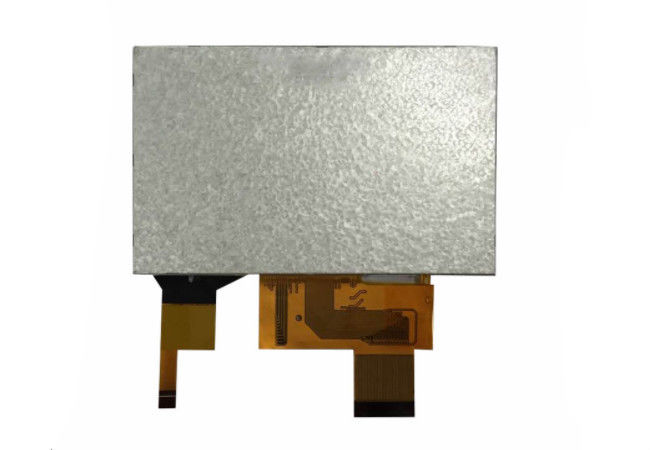

5 Inch 800 X 480 Ips Capacitive Touchscreen 16m Colors High Brightness 1000 Nits











C. Structure Diagram:

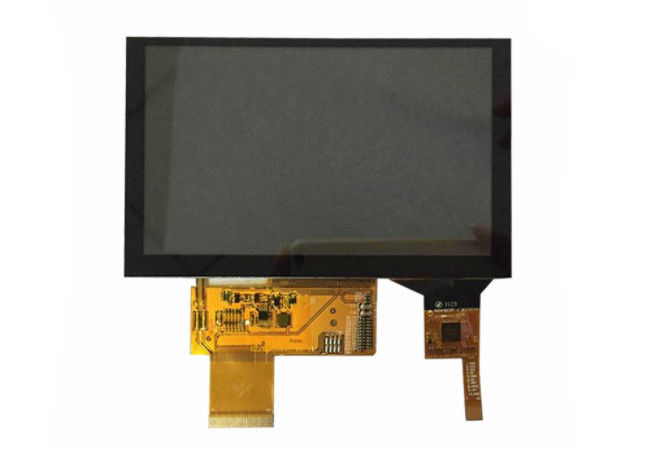

5 Inch 800 X 480 Ips Capacitive Touchscreen 16m Colors High Brightness 1000 Nits







Pins Definition:

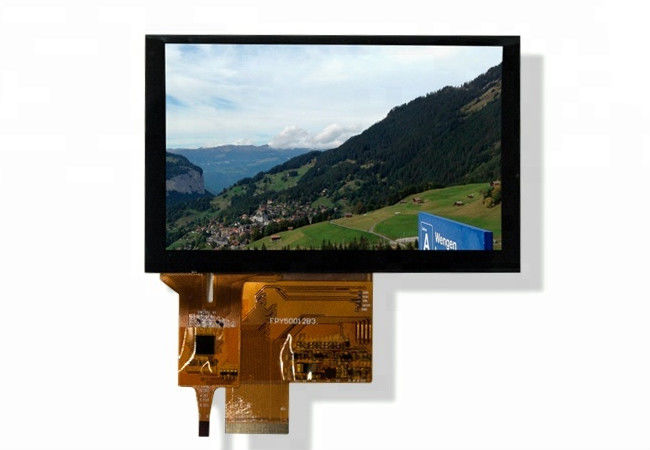

5 Inch 800 X 480 Ips Capacitive Touchscreen 16m Colors High Brightness 1000 Nits





Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
