Graphic Type COG LCD Module 128 * 64 Resolution Transflective Mode 3.0V

Graphic Type COG LCD Module 128 * 64 Resolution Transflective Mode 3.0V

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FS12864AD-Y

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 10~15 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Resolution: 128 X 64 Display Mode: Transflective
Display Type: STN Positive Viewing Direction: 6 O'clock
Outline Size: 79.7 X 63.5 X 6.8 Mm Viewing Size: 71.8 X 49 Mm
High Light:

cog lcd display

,

colour lcd display module

Product Description



Graphic Type 12864 Lcd Module COG LCD Module



ITEM

CONTENT

DESCRIPTION

1

Display Model

Positive

2

Display type

STN

3

Polarizer type

transflective

4

Viewing angle

6 o'clock

5

Driving Method

1 / 64 duty,1 / 9 bias

6

Interface

Parallel + BL

7

Backlight

LED backlight

8

Driver IC

S6B0724

9

Voltage

3.0V



Our Advantage:



1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days



Our Certificates:



1 . GB/T19001-2016 idt ISO9001:2015
2 . CE & ROHS
3 . SGS of LCD Display



What is COG LCD ?



This is an LCD technology where the controller chip used to drive the LCD is mounted directly onto the LCD glass.

Mounting the controller directly onto the LCD glass allows the module to be built without the need for a PCB. The three main components of a chip on glass is the glass, the controller driver chip, and the cable.

As a general rule the cost of a COG is less than that of a COB. Without being mounted to a circuit board, COG displays do not come equipped with mounting holes. Instead the COG display is mounted to the chassis if the manufacturer’s product uses double-sided tape.

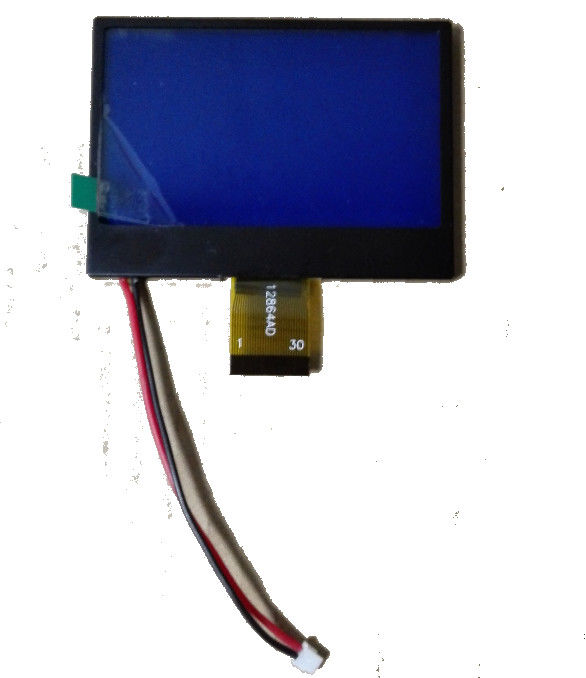

Graphic Type COG LCD Module 128 * 64 Resolution Transflective Mode 3.0V 0
