Square Small AM OLED Display Module 180 x 120 Resolution With SPI Interface 0.95 Inch
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FSTA095QQH10G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T,Western Union, Paypal, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Viewing Angel: | 85 / 85 / 85 / 85 | Size: | 22.23* 18.32* 0.75 Mm |
|---|---|---|---|
| Interface: | MIPI | Type: | Oled |
| Brightness: | 350 Nits | Resoution: | 400 X 400 |
| High Light: | high resolution oled display,oled character display |
||
Product Description

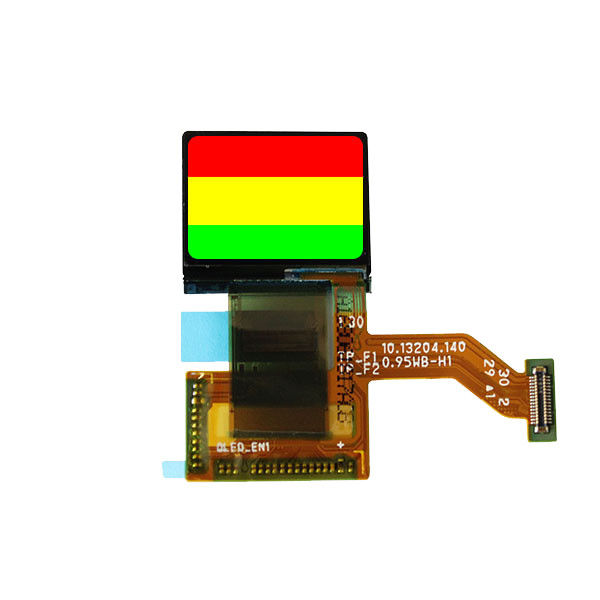

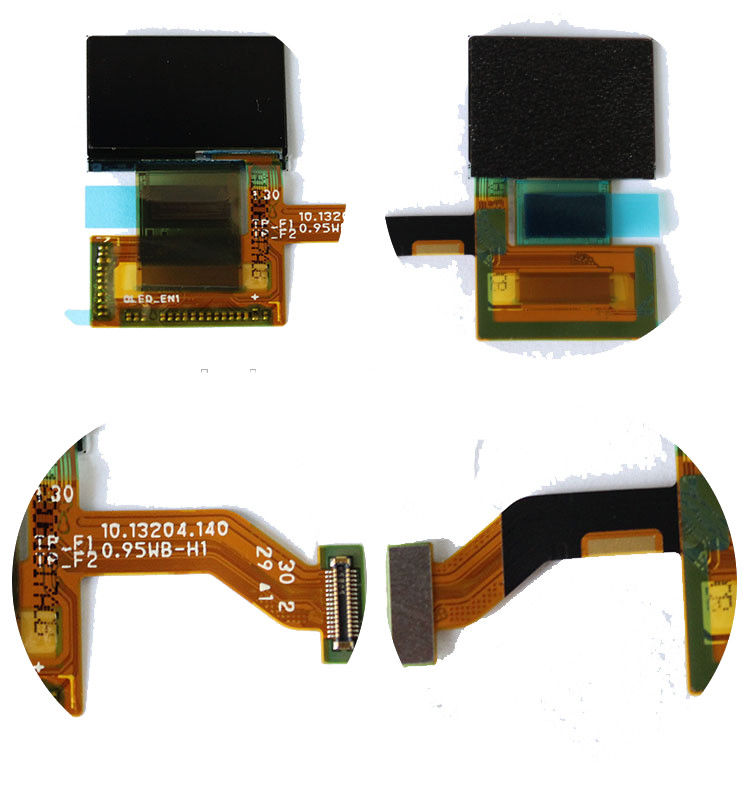

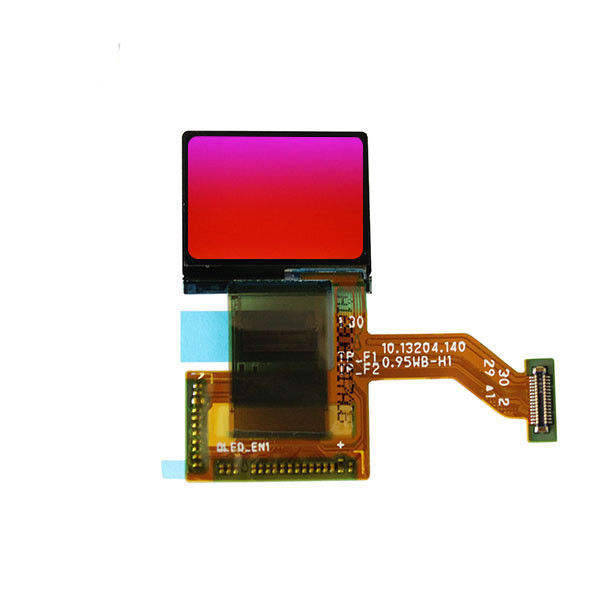

0.95 Inch Square Small AM OLED Module 180 x 120 Resolution with SPI Interface
Specifications
|
Item |
Specification |
Unit |
|
Dimension Outline |
22.23* 18.32* 0.77 |
mm |
|
View Direction |
All |
mm |
|
Resolution |
180(RGB)* 120 |
mm |
|
Active Area |
20.03* 13.36 |
dots |
|
Diagonal Size |
0.948 |
mm |
|
Pixel Pitch |
111.3X111.3 |
|
|
Glass Thickness |
0.2/0.3 |
mm |
|
Weight |
10(+10%, without FPC) |
g |
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1 . GB/T19001-2016 idt ISO9001:2015
2 . CE & ROHS
3 . SGS of LCD Display
What Does Oled Means?
OLED stands for “organic light-emitting diode.” Very simply put, OLEDs are made with organic compounds that light up when fed electricity. That may not seem like a huge difference when compared to LEDs, but unlike LEDs, OLEDs can be made extremely thin, flexible, and remarkably small. In fact, OLEDs can be so small that they can be used as individual pixels, millions of which occupy your TV screen, lighting up and shutting off totally independently. Because of this flexibility, when an OLED pixel is shut off, it is completely off — completely black.
The differences in performance between LG’s OLED TVs and Sony’s result from different picture processors at work. Samsung, Sony, and LG have impressive processors that are also unique to each brand, which is why two TVs with the same panel can look drastically different. A good processor can greatly reduce issues like banding and artifacting and produce more accurate colors as well.
