High Brightness Landscape TFT LCD Resistive Touchscreen With 16 / 18 / 24 Bit Rgb Interface

High Brightness Landscape TFT LCD Resistive Touchscreen With 16 / 18 / 24 Bit Rgb Interface

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FST350MTHH-01PCOG

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Bubble Bag + Blister + Foam Box + Carton
Delivery Time: 3~5 Working Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Resolution: 320 * 480 Dots Size: 3.5 Inch
Viewing Direction: 6 O ' Clock TFT Mode: TFT, Transmissive
Outline Size: 54.66 Mm * 82.94 Mm * 3.45 Mm T Brightness: 290Cd / M2
Highlight:

raspberry pi resistive touch screen

,

multi touch resistive touch screen

Product Description



3.5 Inch 320*240 High Brightness Landscape Tft Lcd Display Module With 16/18/24 Bit Rgb Interface

A. Specifications:

Item
Contents
Description
1
Product Name
3.5 Inch 320*240 High Brightness Landscape Tft Lcd Display Module
2
Module Size
54.66 mm * 82.94 mm * 3.45 mm T
3
Resolution
320 x ( RGB )  480
4
Touch
Resistive TP
5
Pixel Pitch (W*H)

 0.153*0.153

6
Interface Type
SPI + 18BIT RGB
7
Backlight Type
6 - DIES WHITE LED
8
Controller / Driver
HX8357D


Our Advantage:

1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days


Our Certificates:

1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display


FSNZ3003S1MV0FL is 320 * 480 dots Lcd Module with drive IC HX8357D resistive touch screen, SPI + 18BIT RGB

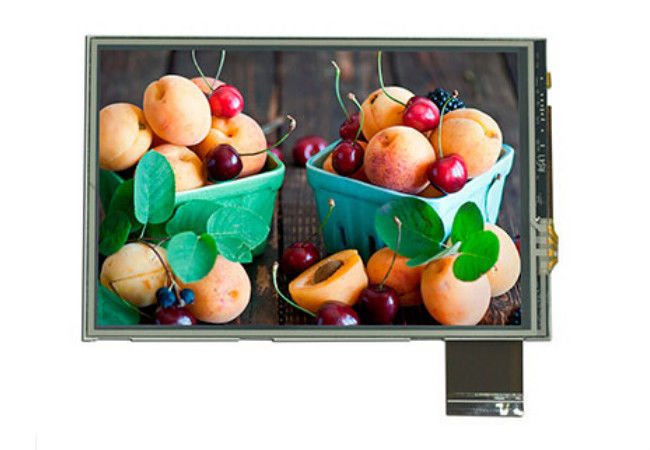

B. Product Details:

High Brightness Landscape TFT LCD Resistive Touchscreen With 16 / 18 / 24 Bit Rgb Interface 0




High Brightness Landscape TFT LCD Resistive Touchscreen With 16 / 18 / 24 Bit Rgb Interface 1

C. Structure Diagram:

High Brightness Landscape TFT LCD Resistive Touchscreen With 16 / 18 / 24 Bit Rgb Interface 2

Pins Definition:

High Brightness Landscape TFT LCD Resistive Touchscreen With 16 / 18 / 24 Bit Rgb Interface 3
