COB Dot Matrix 20x2 Lcd Display , Transflective Character STN Lcd Module

COB Dot Matrix 20x2 Lcd Display , Transflective Character STN Lcd Module

Product Details:

Place of Origin: Dongguan, China
Brand Name: FangSheng
Certification: ISO9001:2015
Model Number: FS2002C

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 3-5 Working Days
Payment Terms: T/T,Western Union, Paypal, D/A, D/P, L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

LCD Type: COB Polarizer Mode: Transflective
Display Mode: STN Negative Blue Viewing Angle: 6'clock
Storage Temp: -30--+80℃ Back Light: White LED Backlight
High Light:

lcd alphanumeric display


monochrome lcd display module

Product Description


20 x 2 dot matrix Character STN LCD Display in STN Negative Blue LCD Mode


A 20x2 dot matrix Character LCD Module display in STN Negative Blue LCD Mode, Six O'clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a transmissive polarizer suitable for darker environment. This product is assembled Chip On board with 1/16 Duty and a Controller IC AC780S or equivalent. The interface type is Serial - SPI. This is an ROHS Compliant product manufactured with ISO standards and procedures.

The highest quality product at the lowest price.
  • STN Negative Blue
  • 6 o'clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • Transmissive Polarizer
  • White LED Backlight

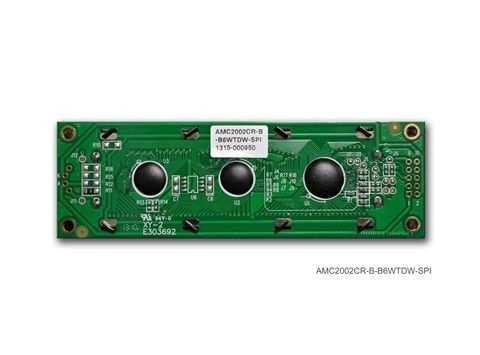

  • COB Type (Chip on Board)
  • SPI Interface
  • ROHS Compliant

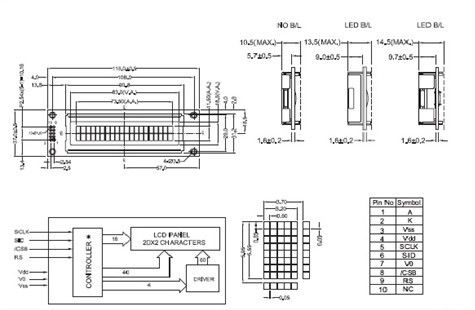

Model/Series Name FS2002C SPI
Characters Displayed x Lines 20 x 2
LCD Mode STN Negative Blue
Polarizer Type Transmissive
Module Size WxHxT max(mm) 116.0 x 37.0 x 14.5
View Area WxH (mm) 83.0 x 18.6
Character Size WxH (mm) 3.20 x 5.55
Backlight White LED
Controller AC780S or equivalent
Interface Type Serial SPI
LCD Assembly COB (Chip on Board)



Our Certificates:

1: GB/T19001-2016 idt ISO9001:2015

2: CE & ROHS

3: SGS of LCD Display
