HTN / STN COG LCD Module 1 / 64 Duty Driving Method Positive Model Small Size

Basic Information
Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FS12864
Minimum Order Quantity: 10 pieces
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 10~15 Working Days
Payment Terms: T/T,Western Union, Paypal
Supply Ability: 200K Sets / Month
Detail Information
Resolution: 128*64 Display Mode: Transflective
Display Type: STN Positive Viewing Direction: 6 O'clock
Outline Size: 79.05 X 39.5 X 8.24 Mm Viewing Size: 53.6 X 28.6
High Light:

cog lcd display

,

colour lcd display module


Product Description



HTN STN Positive COG LCM 6 o'clock 12864 lcd display for instrument



ITEM
CONTENT
DESCRIPTION
1
Display Model
positive
2
Display type
STN
3
Polarizer type
transflective
4
Viewing angle
6 o'clock
5
Driving Method
1/64 duty,1/9 bias
6
Interface
Parallel + BL
7
Backlight
LED backlight
8
Driver IC
S6B0724
9
Voltage
3.0V



What is COG LCD ?



This is an LCD technology where the controller chip used to drive the LCD is mounted directly onto the LCD glass.

Mounting the controller directly onto the LCD glass allows the module to be built without the need for a PCB. The three main components of a chip on glass is the glass, the controller driver chip, and the cable.

As a general rule the cost of a COG is less than that of a COB. Without being mounted to a circuit board, COG displays do not come equipped with mounting holes. Instead the COG display is mounted to the chassis if the manufacturer’s product uses double-sided tape.





Our Advantage:



1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days



Our Certificates:



1 . GB/T19001-2016 idt ISO9001:2015
2 . CE & ROHS
3 . SGS of LCD Display

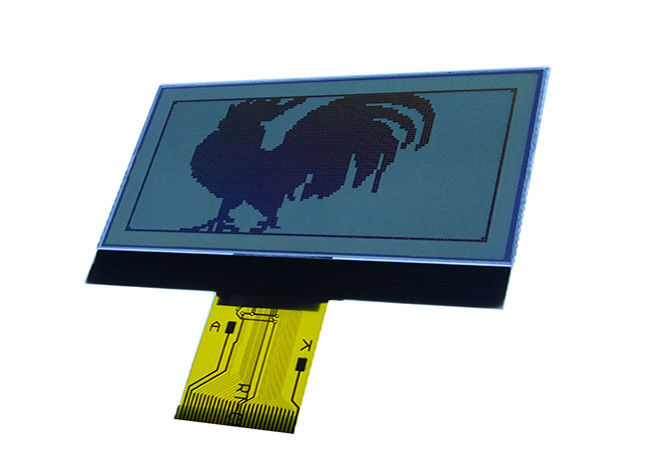

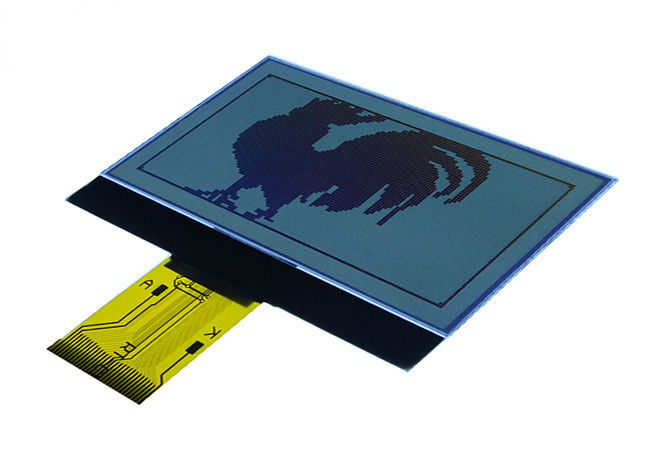

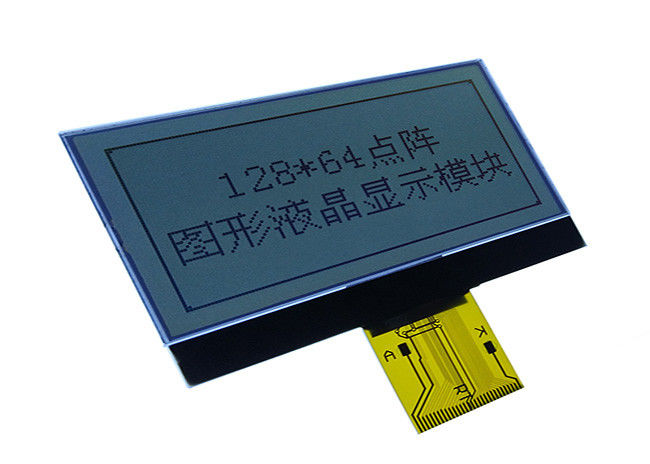

HTN / STN COG LCD Module 1 / 64 Duty Driving Method Positive Model Small Size 0HTN / STN COG LCD Module 1 / 64 Duty Driving Method Positive Model Small Size 1
