8 X 2 Grey Mode STN LCD Display 6'Clock Viewing Angle S6A0069 Controller ISO Standard
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | FangSheng |
| Certification: | ISO9001:2015 |
| Model Number: | FS0802B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T,Western Union, Paypal, D/A, D/P, L/C |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| LCD Type: | COB | Polarizer Mode: | Transflective |
|---|---|---|---|
| Display Mode: | Positive | Viewing Angle: | 6'clock |
| Operating Temp: | -20--+70℃ | Back Light: | White LED Backlight |
| High Light: | lcd alphanumeric display,monochrome lcd display module |
||
Product Description
8x2 dot matrix Character STN LCD Display in STN Positive Gray LCD Mode
An 8x2 dot matrix Character LCD Module display in STN Positive Gray LCD Mode, Six O'clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a transflective polarizer suitable for indoor and outdoor usage. This product is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
The highest quality product at the lowest price.
-
STN Positive Gray
-
6 o'clock Viewing Direction
-
Operating Temp: -20°C to 70°C
-
Storage Temp: -30°C to 80°C
-
Transflective Polarizer
-
White LED Backlight
-
COB Type (Chip on Board)
-
ROHS Compliant
|

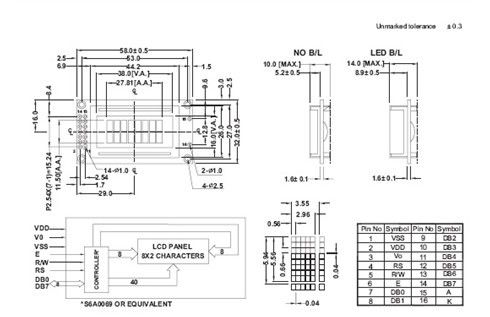

Model/Series Name |
FS0802B |
|
Characters Displayed x Lines |
8 x 2 |
|
LCD Mode |
STN Positive Gray |
|
Polarizer Type |
Transflective |
|
Module Size WxHxT max(mm) |
58.0 x 32.0 x 14.0 |
|
View Area WxH (mm) |
38.0 x 16.0 |
|
Character Size WxH (mm) |
2.96 x 5.56 |
|
Back-light |
White LED |
|
Controller |
S6A0069 or equivalent |
|
Interface Type |
Parallel |
|
LCD Assembly |
COB (Chip on Board) |
Our Certificates:
1: GB/T19001-2016 idt ISO9001:2015
2: CE & ROHS
3: SGS of LCD Display
