Seven Segment Negative LCD Display With Metal PIn Connector For Electronic Timer

Seven Segment Negative LCD Display With Metal PIn Connector For Electronic Timer

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FVA2392MO01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: VA LCD Display Backgound: Black Color
Voltage: 4.5 V Connector: Pin
Driving Method: Static Or Dynamic Polarizer Type: Transmissive, Transflective
High Light:

va lcd panel

,

vertical alignment lcd

Product Description

VA Lcd Display Custom LCD Module 7 Segment Lcd Negative Display With Metal PIn Connector Lcd For Electronic Timer


Specifications:

ITEM CONTENT DESCRIPTION
1 Lcd Type FSTN Lcd Display
2 Outline Size 32.5mm ( L ) * 10.5mm ( W ) * 1.1mm T
3 VA Size 30.5mm ( L ) * 6.5mm ( W )
4 Viewing Direction 6 O ' clock
5 Voltage 4.5V
6 Display Mode Nagetive
7 Polarizer Mode Transmissive
8 Backlight White Led
9 LED Number 2pcs
10 Contactor Pin



WELCOME TO US:
Professonal Manufacture in Lcd Display since 2001Year.
Provide the most suitable high quality products and efficient superior service for every clients.
*LCD Screen                                                                                         *LCM Module

*TFT Colored Screen                                                                            *Monochrome Lcd

*Factory Supply                                                                                    *Specialize In Customization

*Long Time Supply                                                                               *Professional Design



Product and Drawing Details:

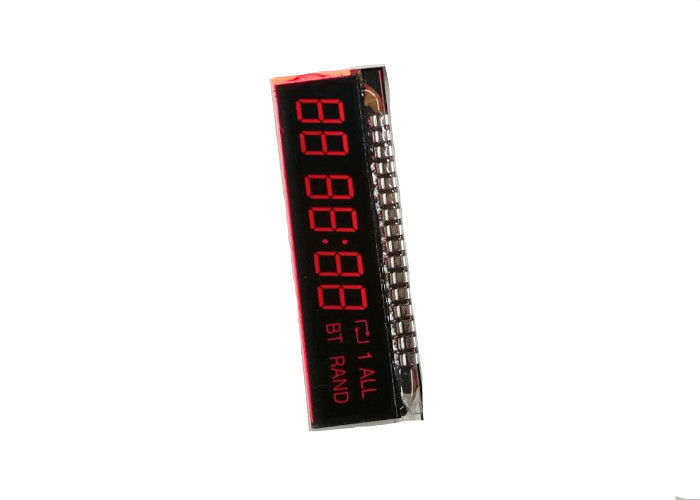

Seven Segment Negative LCD Display With Metal PIn Connector For Electronic Timer 0

Quality and Stability



1. Implementation of the International Quality System.
2 . Professional production control.
3 . Complete testing equipments .
4 . RoHS, REACH certificated



Drawing

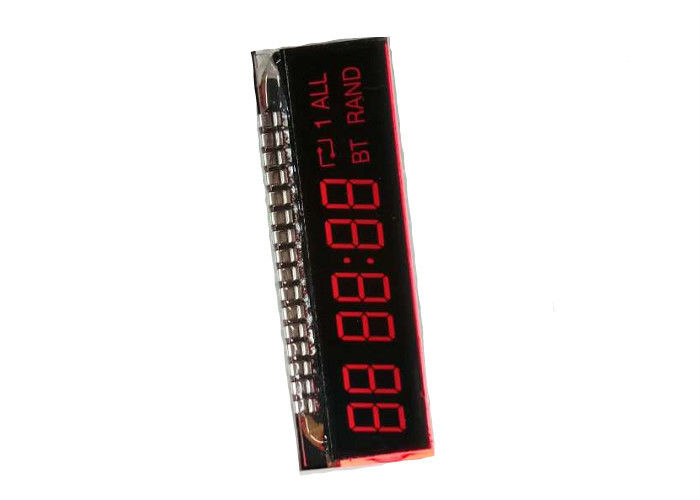

Seven Segment Negative LCD Display With Metal PIn Connector For Electronic Timer 1


How to choose LCD type?

d.1. Usually,TN LCD is widely using, such as power meter LCD, telephone LCD, calculator LCD, electric cooker LCD etc. TN LCD is cheapest , but viewing angle is narrow.
d.2. HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD.
d.3. STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much,STN LCD not only can make segment LCD,but also can make dot matrix LCD.Unit price of STN LCD is higher than HTN LCD.
d.4. FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's.
d.5. VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general,VA LCD has a excellent display result.If you want a wonderful display result,VA LCD will be your best choice.
d.6. Price of HTN is little high than TN, but low than STN, VA and FSTN.



The terms of Business Trade

1 . Payment : T/T, L/C at sight, Western Union, Paypal, VISA, Creadit Card etc.
2 . Leading time : It takes12 -15 days for samples after receiving the tooling cost.
3 . Trade Term : FOB, EXW, CIF, CNF.
4 . Sample : If you want to our free sample you need to pay for the shipping fee.
5. Standard payment terms: pay 30% deposit in advance, 70% balance before shipment.
6. 25-30 business days. It depends on different order quantitie



Application

Our products have been widely used in consumer electronics and industrial meter filed, such as car audio, washing machine, cending machine, medical instrument, coffee machine. POS terminals, cash register, remote controller, counter display, portable power charger and so on.
