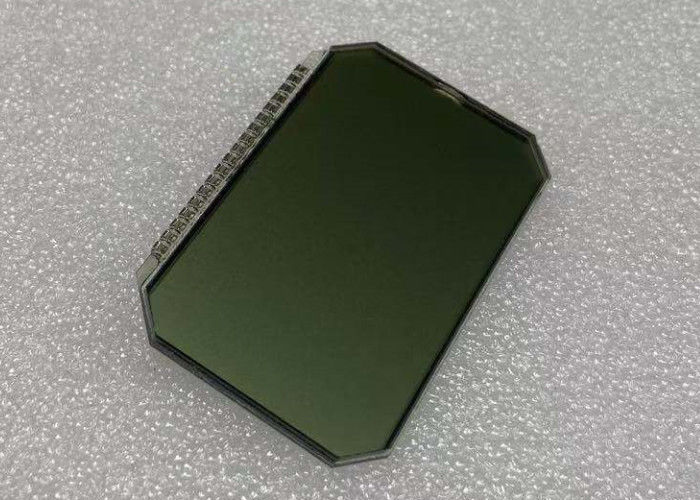

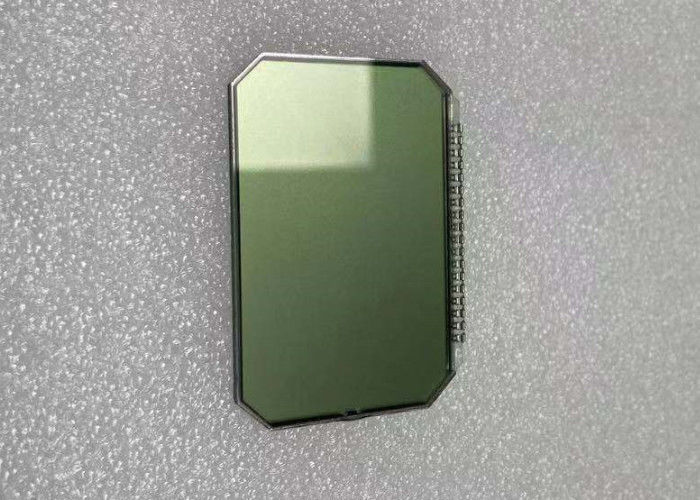

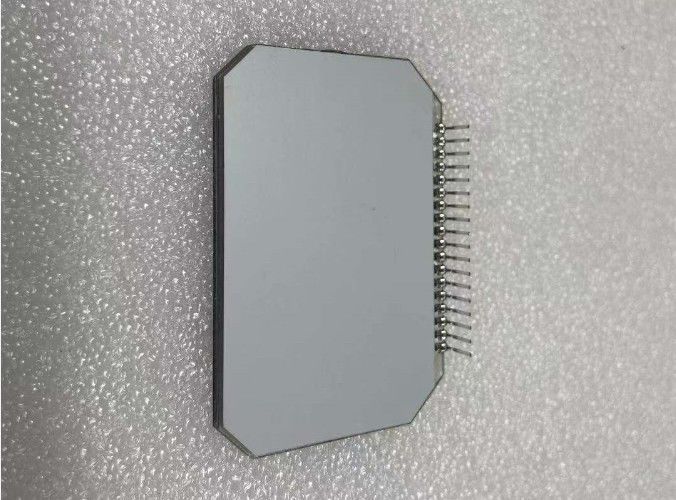

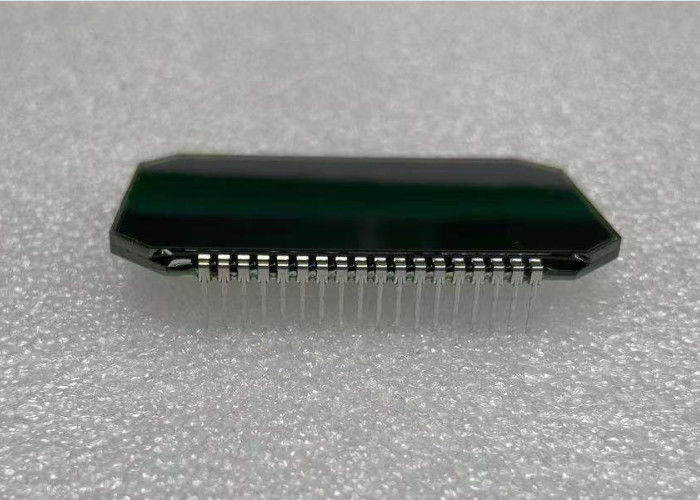

Custom Size Lcd Display Panel Transflective TN LCD Segment Display Module
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FTP3423RP01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 7-10 Working Days |
| Payment Terms: | T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Type: | TN LCD Display | Backgound: | No |
|---|---|---|---|
| Voltage: | 3.0 V | Connector: | Pin |
| Driving Method: | 1/4 Duty, 1/3Bias | Polarizer Type: | Transmissive, Transflective, Reflective |
| High Light: | TN LCD Segment Display Module,Transflective LCD Segment Display Module,Transflective TN LCD Module |
||
Product Description
Custom Size Lcd Display Panel Transflective TN LCD Segment Display Module for Water Meter
Specifications:
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | TN Lcd Display |
| 2 | Outline Size | Custom |
| 3 | Viewing Direction | 6 O ' clock |
| 4 | Voltage | 2.8V |
| 5 | Display Mode | Positive |
| 6 | Polarizer Mode | Transflective |
| 7 | Backlight | White Led |
| 8 | LED Number | 2pcs |
| 9 | Contactor | Pin |
Professonal Manufacture in Lcd Display since 2001Year.
*TFT Colored Screen *Monochrome Lcd
*Factory Supply *Specialize In Customization
*Long Time Supply *Professional Design
Application:
Quality and Stability
1. Implementation of the International Quality System.
2 . Professional production control.
3 . Complete testing equipments .
4 . RoHS, REACH certificated
How to choose LCD type?
| d.1. | Usually,TN LCD is widely using, such as power meter LCD, telephone LCD, calculator LCD, electric cooker LCD etc. TN LCD is cheapest , but viewing angle is narrow. |
| d.2. | HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD. |
| d.3. | STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much,STN LCD not only can make segment LCD,but also can make dot matrix LCD.Unit price of STN LCD is higher than HTN LCD. |
| d.4. | FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's. |
| d.5. | VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general,VA LCD has a excellent display result.If you want a wonderful display result,VA LCD will be your best choice. |
| d.6. | Price of HTN is little high than TN, but low than STN, VA and FSTN. |
The terms of Business Trade
1 . Payment : T/T, L/C at sight, Western Union, Paypal, VISA, Creadit Card etc.
2 . Leading time : It takes12 -15 days for samples after receiving the tooling cost.
3 . Trade Term : FOB, EXW, CIF, CNF.
4 . Sample : If you want to our free sample you need to pay for the shipping fee.
5. Standard payment terms: pay 30% deposit in advance, 70% balance before shipment.
6. 25-30 business days. It depends on different order quantitie
Drawing
Our products have been widely used in consumer electronics and industrial meter filed, such as car audio, washing machine, cending machine, medical instrument, coffee machine. POS terminals, cash register, remote controller, counter display, portable power charger and so on.
