Custom 7 Segment LCD Display Panel / High Contrast Transparent Positve LCD Module
Product Details:
Place of Origin: | Dongguan,China |
Brand Name: | Fangsheng |
Certification: | ISO9001:2015 |
Model Number: | FHSTN1975TP |
Payment & Shipping Terms:
Minimum Order Quantity: | 500 |
---|---|
Price: | Negotiation |
Packaging Details: | Bubble bag + Blister + Foam box + Carton |
Delivery Time: | 3 ~ 5 Working Days |
Payment Terms: | T/T,Western Union, Paypal |
Supply Ability: | 200K Sets / Month |
Detail Information |
|||
Lcd Type: | FSTN Lcd Display | Voltage: | 4.3V |
---|---|---|---|
LED: | White | Display Mode: | Transflective |
High Light: | high brightness lcd display,reflective lcd display |
Product Description

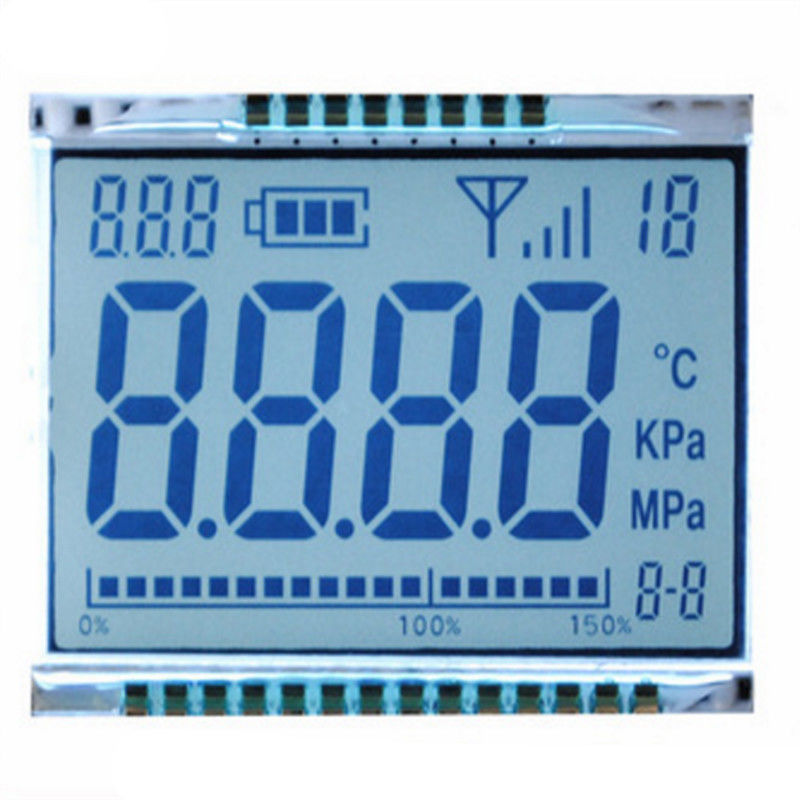

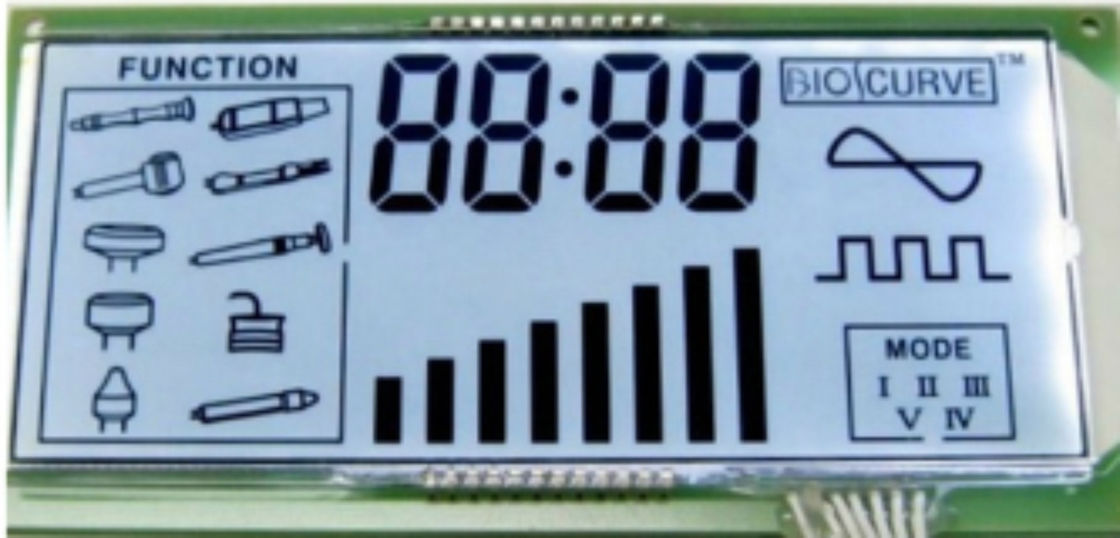

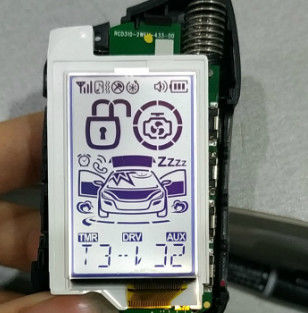

Custom 7 Segment Lcd Display Panel High Contrast Lcd Transparent Display Positve Lcd Module
LCD operating temperature and LCD storage temperature:
You can choose one from blow:
LCD operating temperature range:0 to 50ºC,then storage temperature range:-10 to 60ºC;
LCD operating temperature range:-10 to 60ºC,then storage temperature range:-20 to 70ºC;
LCD operating temperature range:-20 to 70ºC,then storage temperature range:-30 to 80ºC;
LCD operating temperature:-30 to 80ºC,then storage temperature range:-40 to 90ºC;
LCD operating temperature:-40 to 85ºC,then storage temperature range:-50 to 90ºC;
Temperature range is wider,then price is higher.
Connection mode of LCD.
How to connect LCD on your PCB?There are four type of connectors for your choice.
- Metal pin connector. It is very common connection way. Pins should insert into PCB holes and solder it. It is very strong and firm. LCD,LED backlight or PCB can be connected together as a LCD module.
A. Basic Information:
ITEM
|
CONTENT
|
DESCRIPTION
|
1
|
Display Outline Size
|
83 ( H ) * 76 ( W ) * 1.1 mm ( T )
|
2
|
Viewing Size |
75 ( H ) * 70(W) mm
|
3
|
Voltage
|
4.3V
|
4
|
Operation Temperature
|
-10~60℃
|
5
|
Drive Parameter
|
1/4 Duty 1/3 Bias |
6
|
Backlight
|
6pcs Led
|
7
|
Color
|
White |
8
|
Interface
|
Pin
|
IThe unit price is higher than TN or HTN LCD display.It can be used in high-end electronics products.
1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen
7. Full viewing angle
LCD Drive Method:
LCD drive method is up to LCD drive chip.
For examples,Static drive;1/2duty,1/2bias;1/3duty,1/2bias;1/4duty,1/3bias;1/8duty,1/4bias;
1/16duty,1/5bias and so on.
Viewing direction
As viewing angle of monochrome LCD is not very wide,especially TN LCD and HTN LCD, so it is necessary to confirm a best viewing direction,so that we can get a best display result.
As usual,LCD viewing direction is separated into 6:00 direction and 12: direction.
6:00 viewing direction: When our line of sight is from bottom to top of LCD,it is 6:00 viewing direction,such as telephone screen,wall clock screen,air condition screen and so on.
12:00 viewing direction: When our line of sight is from top to bottom of LCD,it is 12:00 viewing direction,such as electric cooker display screen.
Viewing direction of LCD is very important,if we made a wrong viewing direction,then the LCD display result will not good viewing. So please check it carefully to avoid re-open mold.
