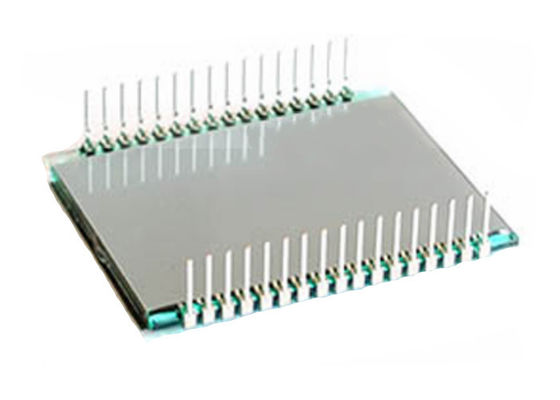

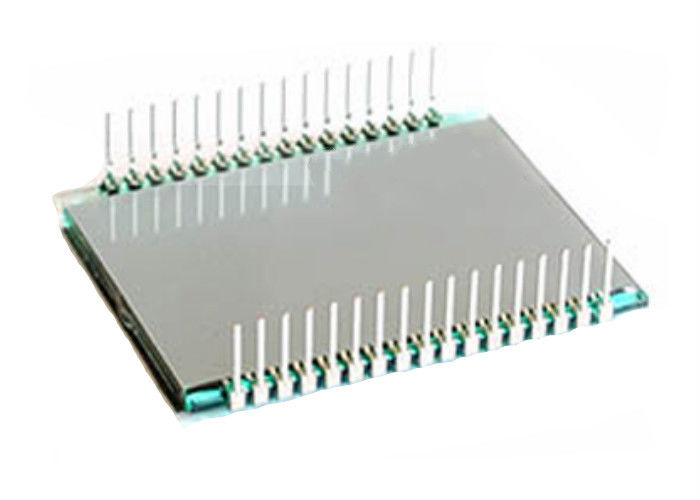

Digit 7 Segment TN Reflective LCD Display Custom Size For Meter 3.3V
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FTP1009TP01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 7-10 Working Days |
| Payment Terms: | T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Type: | TN Segment Lcd Display | LED: | Blue LED |
|---|---|---|---|
| Voltage: | 3.3V | Connector: | Pin |
| Driving Method: | 1 / 4 Duty , 1 / 3 Bias | Polarizer Type: | Transmissive |
| High Light: | tn lcd module,tn panel display |
||
Product Description

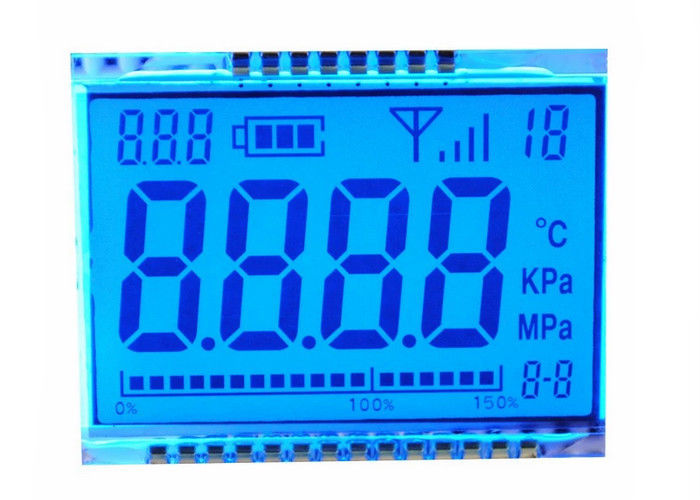

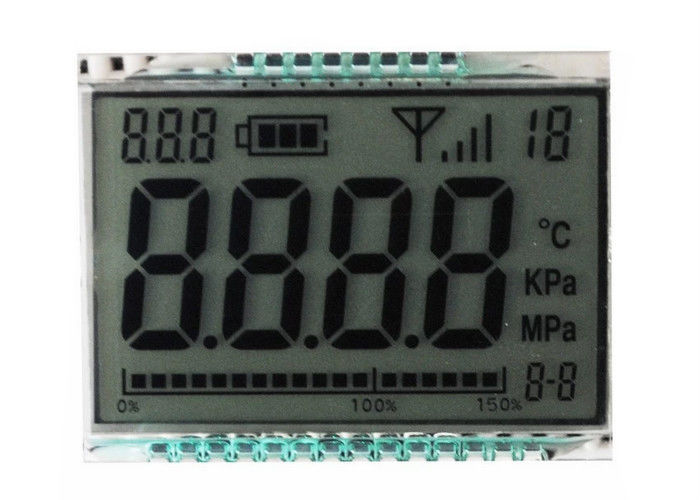

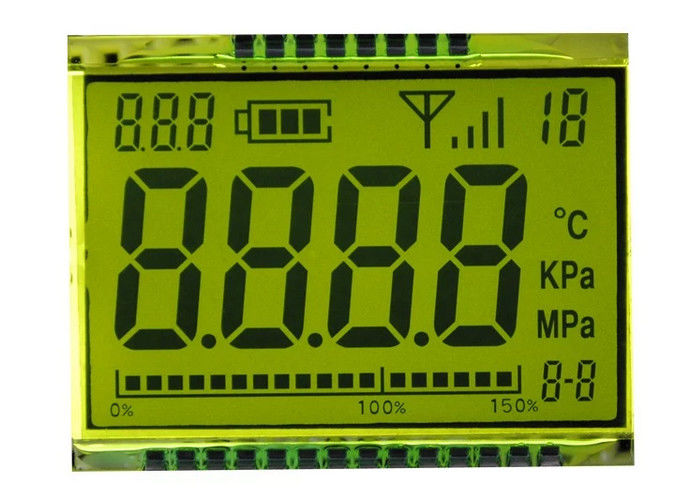

Digit Lcd 7 Segment Display TN Reflective Lcd Numeric Display For Meter
TN is the most common display and viewing angle with a narrow range about 40º;
HTN has a wider view than TN , it around 60º
VA is High contrast Lcd, and it is popuplar with wildly clients
Technical parameters:
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | TN Segnement Lcd Display |
| 2 | Outline Size | 38.4mm ( L ) * 28.5mm ( W ) * 1.1mm T |
| 3 | VA Size | 35mm ( L ) * 24mm ( W ) |
| 4 | Viewing Direction | 6 O ' clock or 12 O ' clock |
| 5 | Voltage | 3.3V |
| 6 | Display Mode | Positive |
| 7 | Polarizer Mode | Transmissive |
| 8 | Operation temp | - 20°C TO + 70°C |
| 9 | Storage temp | - 30°C TO + 80°C |
| 10 | Twisted Nematic | 40° |
Customizing & designing segment, character, graphic LCD Display and LCD Module ( Including LED Backlight ) with different sizes, shapes, display icons for clients.
1. Wide viewing angle
2. Wide temperature
3. Good display
4. LED backlight
5. Various display color
6. Avalible for different application: oven, fridge, air-conditioner,auto etc
7. Optional: metal pin/FPC connector
Viewing Angle
How to select the viewing angle of segment lcd?
It is determined by the direction of friction in the orienting layer and cannot be changed by rotating the Polaroid. The perspective is named after the hour hand, such as 6 o 'clock perspective, 12 o 'clock perspective and so on.
The 6 o 'clock viewing Angle refers to the area from the plane direction at 6 o 'clock clockwise to the normal direction. The LCD display effect is ideal.
The 12:00 viewing Angle refers to the area from the plane at 12 o 'clock clockwise to the normal direction.
The viewing Angle of the LCD is determined by the position of the LCD display on the instrument. For example, the calculator is usually placed on the table or held in the hand, LCD made of 6:00 perspective is better. Some instruments have LCD screens below the eye level, usually at 12:00. The clock in the car is usually mounted on the right side of the driver to make a better 9:00 Angle.
We have strict quality control, to ensure product quality.
Whole production line is in a low temperature, dry and sterile environment.
Whoever enters the workshop must wear overalls.
There is an air shower at each workshop doorway, to blow off dust particles on the surface of overall.
After products have been produced, every lcd or lcm will be 100% tested.
