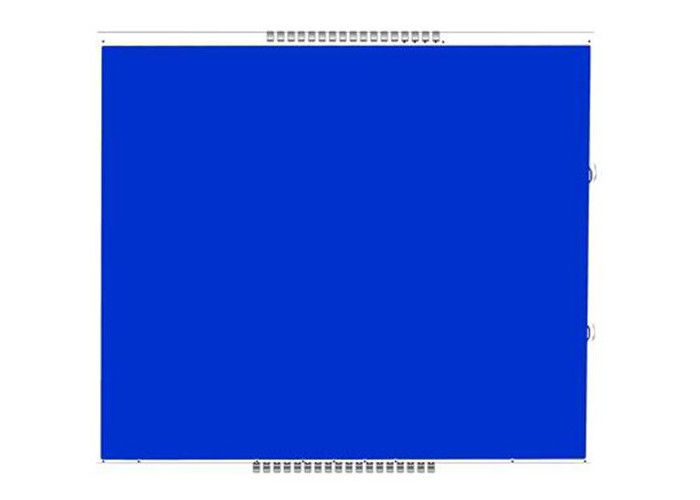

Multi Function HTN Module Digital LCD Screen Panel / Transmissive LCD Display
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FSB1382NP02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 7-10 Working Days |
| Payment Terms: | T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Type: | HTN LCD Display | LED: | 8PCS LED |
|---|---|---|---|
| Voltage: | 3.3V | Connector: | Metal Pin |
| Backgound: | Blue Color | Polarizer Type: | Transmssive |
| High Light: | negative lcd display,transflective lcd display |
||
Product Description
Custom Size Multi Function HTN Module Digital Lcd Display Panel From Manufacturer
Technical parameters:
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | HTN Lcd Display |
| 2 | Outline Size | 112mm ( L ) * 108mm ( W ) / 104mm * 1.1mm T |
| 3 | VA Size | 118mm ( L ) * 100mm ( W ) |
| 4 | Viewing Direction | 6 O ' clock |
| 5 | Voltage | 3.3V |
| 6 | Display Mode | Negative |
| 7 | Polarizer Mode | Transmissive |
| 8 | Operation temp | - 0°C TO + 50°C |
| 9 | Storage temp | - 10°C TO + 60°C |
| 10 | LED | 8pcs white LED blue color |
Product details:

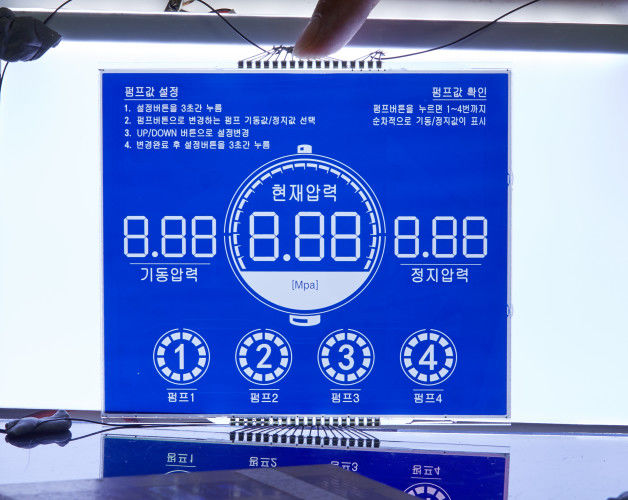

* FTH0795TS01 is HTN Negative Lcd Display with blue backgound and blue LED.
1. Type of LCD: TN,HTN,STN,BTN,FSTN, VA --- and determine whether the display is positive or negative
2. LCD thickness: 2.8mm,2.0mm,1.7mm
3. Bottom polarizer of LCD: fully transparent, semi-transparent and reflective (generally, semi-transparent and fully transparent for backlit LCD)
4. Working temperature of LCD: 0 to 50, -10 to 60, -20 to 70, -30 to 80, -40 to 90
5. LCD connection: pin connection, zebra strip connection, zebra paper connection, FPC connection, etc.
Technology Drawing
Our advantages:
* Design difference segment and display content
* Mature technology
* Short supply cycle
* Flexble prdouction
Lcd Process
What can we custom?
1. Different 7 segment and 14 segment digits ,Patterns with printed silk-screen
2. 2.7 to 4.5V lcd driving voltage
3. Pin connection or rubber connection
4. Cog package optional
5. HTN,TN,STN, FSTN liquid display optional
6. Transflective,Reflective ,Transmissive polarity optional
7. Different backlight optional
8. Good at VA display
Facotory Information:
| Item | Building , Labours and Mechine | ||
| 1 | Labours | Direct+ Indirect Labors | 100 |
| 2 | Build 1 | Office,Factory, Warehouse | 3,100M² |
| Build 2 | Dormitory | 913M² | |
| 3 | Product Capacity | 26,000sets/Month | |
| 4 | Mechine: | Cutting Mechina, LC Filling Mechina,dispensing machine,etc. | |
